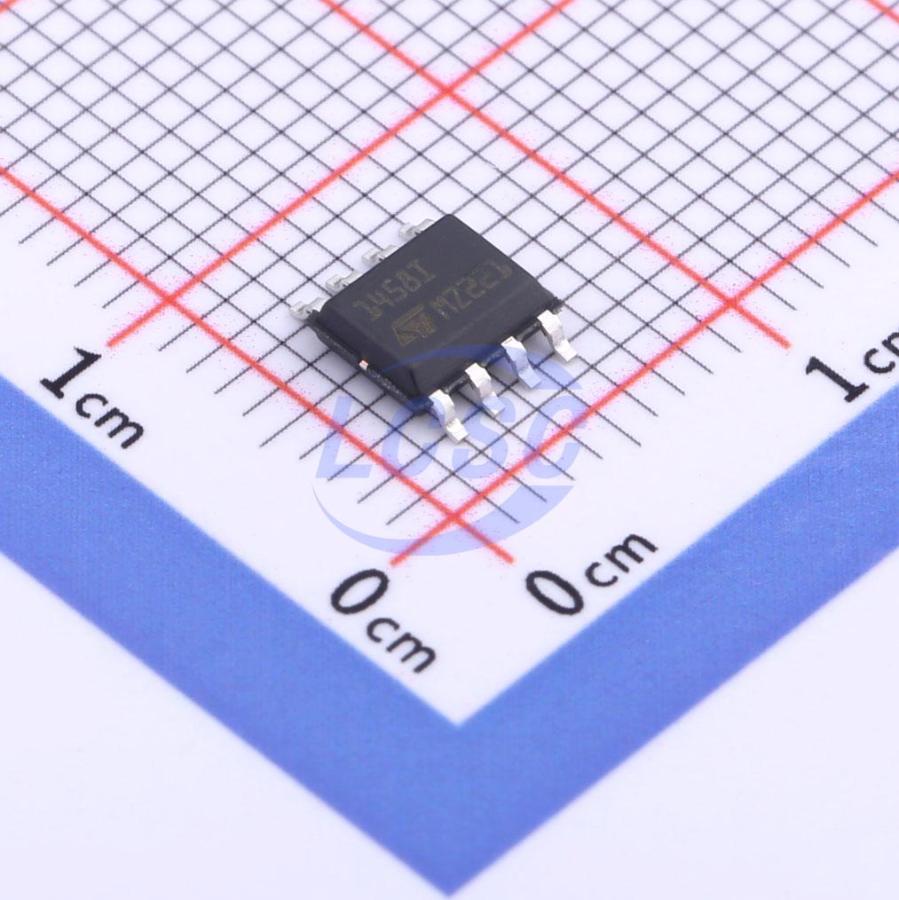

MC1458IDT
20mA 2 5mV 800V/ms 90dB 500nA 2.3mA 1MHz SO-8 Instrumentation, Op Amps, Buffer Amps RoHS
SO-8ROHS3 CompliantActive
High-performance, dual operational amplifier
- Manufacturer
- ST
- Manufacturer part #
- MC1458IDT
- Store part #
- C2970200
- Package / case
- SO-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C2970200
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹53.63 | ₹268.15 |
| 50+ | ₹43.05 | ₹2,152.50 |
| 150+ | ₹36.21 | ₹5,431.50 |
| 500+ | ₹30.56 | ₹15,280.00 |
| 2,500+ | ₹28.03 | ₹70,075.00 |
| 5,000+ | ₹26.53 | ₹1,32,650.00 |
5 × ₹53.63
₹268.15
excl. GST
₹316.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC1458IDT
₹268.15 for 5 + GST
Specifications
- Output Current
- 20mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 800V/ms
- Input Offset Current(Ios)
- 2nA
- Operating Temperature
- -40℃~+105℃
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Ib - Input Bias Current
- 500nA
- Quiescent Current
- 2.3mA
- Gain Bandwidth Product
- 1MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 45nV/√Hz@1kHz
- Dual Supply
- -22V~22V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.244 g
Overview
The MC1458 is a high-performance, monolithic, dual operational amplifier intended for a wide range of analog applications. The high gain and wide range of operating voltages provide superior performance in integrator, summing amplifiers, and general feedback applications.
Applications
- Summing amplifier
- Voltage follower
- Integrator
- Active filtering
- Function generator
Key features
- Low power consumption
- Large input voltage range
- No latch-up
- High gain
- Short-circuit protection
- No frequency compensation required
