TIDatasheet (PDF)

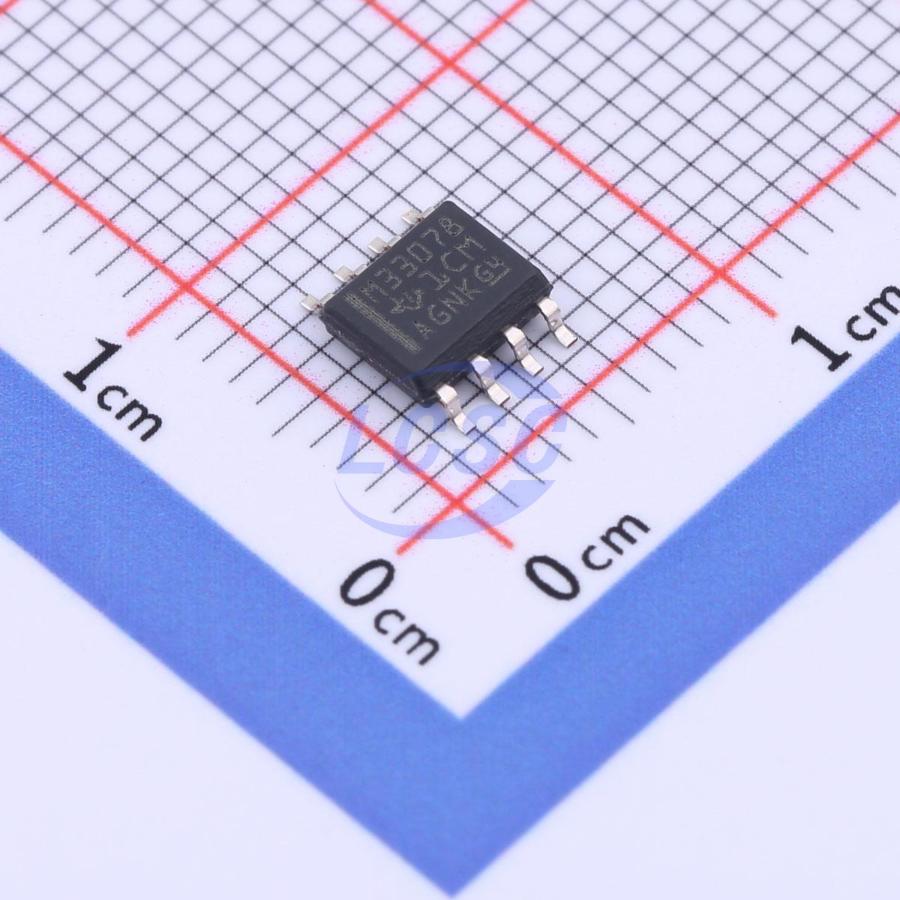

MC33078DR
29mA 2 150uV 7V/us 80dB 750nA 2.5mA 16MHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
Dual High-Speed Low-Noise Operational Amplifier
- Manufacturer
- TI
- Manufacturer part #
- MC33078DR
- Store part #
- C2057560
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,489 in stock
#C2057560
Stock & price checked 16 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹56.37 | ₹56.37 |
| 10+ | ₹45.58 | ₹455.80 |
| 30+ | ₹40.39 | ₹1,211.70 |
| 100+ | ₹35.64 | ₹3,564.00 |
| 500+ | ₹34.35 | ₹17,175.00 |
| 1,000+ | ₹33.49 | ₹33,490.00 |
1 × ₹56.37
₹56.37
excl. GST
₹66.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC33078DR
₹56.37 for 1 + GST
Specifications
- Output Current
- 29mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 150uV
- Slew Rate
- 7V/us
- Input Offset Current(Ios)
- 150nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 750nA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 2.5mA
- Gain Bandwidth Product
- 16MHz
- Input Voltage Noise Density
- 4.5nV/√Hz@1kHz
- Dual Supply
- -5V~5V;5V~18V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.17 g
Overview
The MC33078 is a bipolar dual operational amplifier with high-performance specifications for use in quality audio and data-signal applications. This device operates over a wide range of single- and dual-supply voltages and offers low noise, high-gain bandwidth, and high slew rate. Additional features include low total harmonic distortion, excellent phase and gain margins, large output voltage swing with no deadband crossover distortion, and symmetrical sink/source performance.
Applications
- High-quality audio field
- Data signal applications
Key features
- Dual-Supply Operation... ±5 V to ±18 V
- Low Noise Voltage... 4.5 nV/√Hz
- Low Input Offset Voltage... 0.15 mV
- Low Total Harmonic Distortion... 0.002%
- High Slew Rate... 7 V/|s
- High-Gain Bandwidth Product... 16 MHz
- High Open-Loop AC Gain... 800 at 20 KHz
- Large Output-Voltage Swing... 14.1 V to –14.6 V Excellent Gain and Phase Margins
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HX33078-S#C41399183ZHHXDZ · SOP-8 | ZHHXDZ | SOP-8 | 645 | ₹16.68 · 645 in stock | View |
| XL33078DR#C46971282XINLUDA · SOP-8 | XINLUDA | SOP-8 | 2,480 | ₹11.21 · 2,480 in stock | View | |
 | MC33078DR-NG#C31928712TI · SOIC-8 | TI | SOIC-8 | 234 | ₹81.85 · 234 in stock | View |
 | HT33078ARZ#C2937055HTCSEMI · SOP-8 | HTCSEMI | SOP-8 | 280 | ₹46.36 · 280 in stock | View |
 | XL833#C707069XINLUDA · SOIC-8 | XINLUDA | SOIC-8 | 395 | ₹12.34 · 395 in stock | View |
