onsemiDatasheet (PDF)

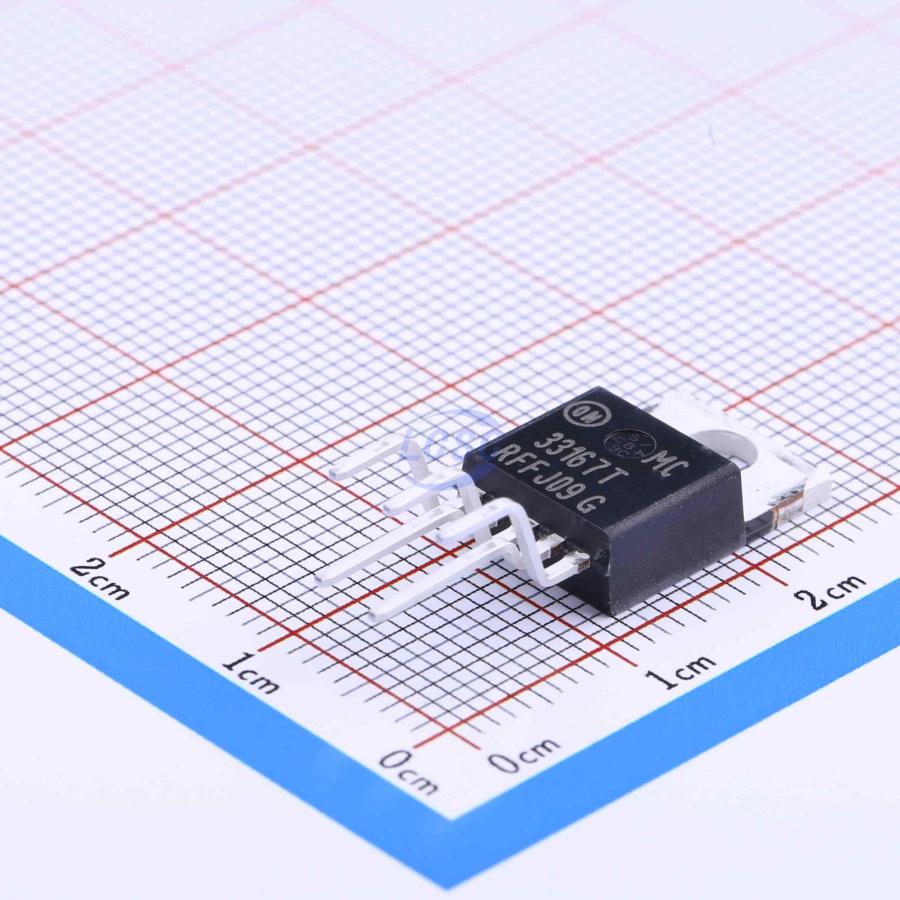

MC33167TVG
72kHz Adjustable 5.05V~40V 5.5A TO-220 Voltage Regulators - DC DC Switching Regulators RoHS
TO-220ROHS3 CompliantActive
High Efficiency 5.0 A Inverting Switching Regulator
- Manufacturer
- onsemi
- Manufacturer part #
- MC33167TVG
- Store part #
- C57011
- Package / case
- TO-220
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
496 in stock
#C57011
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹454.53 | ₹454.53 |
| 10+ | ₹385.54 | ₹3,855.40 |
| 50+ | ₹344.52 | ₹17,226.00 |
| 100+ | ₹303.09 | ₹30,309.00 |
| 500+ | ₹284.00 | ₹1,42,000.00 |
| 1,000+ | ₹275.54 | ₹2,75,540.00 |
1 × ₹454.53
₹454.53
excl. GST
₹536.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
MC33167TVG
₹454.53 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 72kHz
- Function
- Boost;Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;External compensation
- Output Type
- Adjustable
- Topology
- Boost;Buck;Inverting
- Operating Voltage
- 7.5V~40V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 5.05V~40V
- Output Current
- 5.5A
- Quiescent Current
- 36uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.678 g
Overview
The MC34167, MC33167 series are monolithic power switching regulators that are optimized for dc−to−dc converter applications. These devices operate as fixed frequency, voltage mode regulators containing all the active functions required to directly implement step−down and voltage−inverting converters with a minimum number of external components. They can also be used cost effectively in step−up converter applications. Potential markets include automotive, computer, industrial, and cost sensitive consumer products.
Applications
- automotive
- computer
- industrial
- cost sensitive consumer products
Key features
- Output Switch Current in Excess of 5.0 A
- Fixed Frequency Oscillator (72 kHz) with On−Chip Timing
- Provides 5.05 V Output without External Resistor Divider
- Precision 2% Reference
- 0% to 95% Output Duty Cycle
- Cycle−by−Cycle Current Limiting
- Undervoltage Lockout with Hysteresis
- Internal Thermal Shutdown
- Operation from 7.5 V to 40 V
- Standby Mode Reduces Power Supply Current to 36 μA
- Economical 5−Lead TO−220 Package with Two Optional Leadforms
- Also Available in Surface Mount D²PAK Package
- Moisture Sensitivity Level (MSL) Equals 1
- Pb−Free Packages are Available
