STDatasheet (PDF)

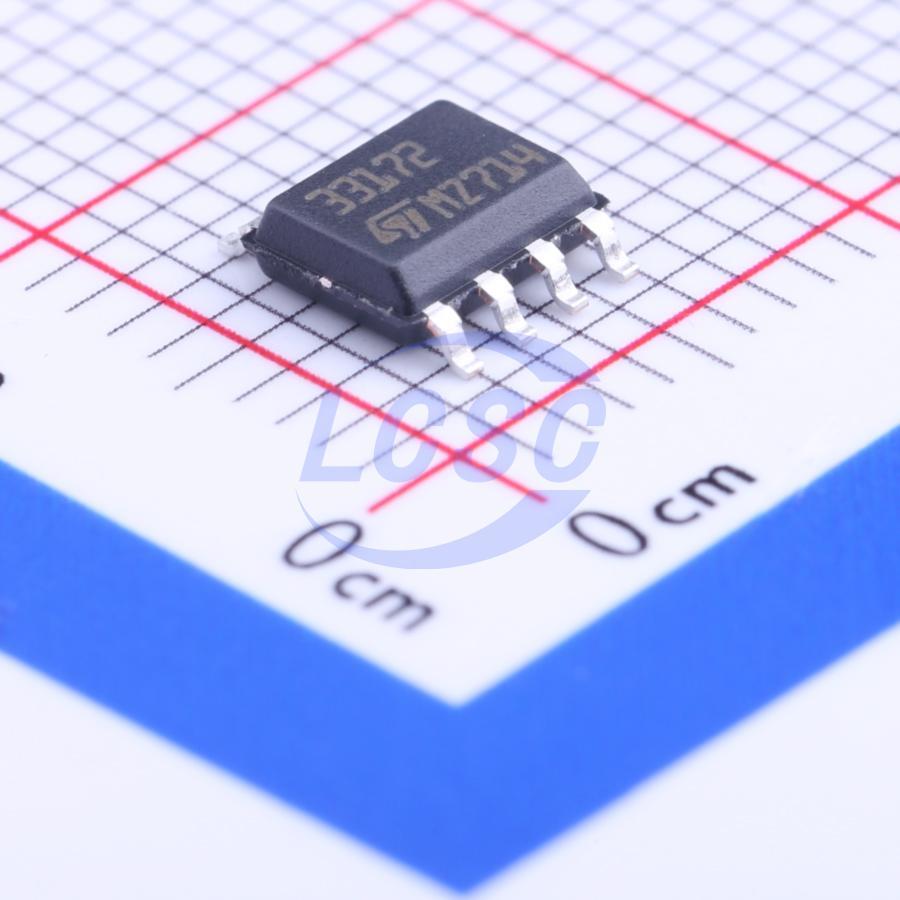

MC33172DT
14mA 2 1mV 2V/us 100dB 20nA 200uA 2.1MHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
Low power dual bipolar operational amplifiers
- Manufacturer
- ST
- Manufacturer part #
- MC33172DT
- Store part #
- C126403
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,625 in stock
#C126403
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.89 | ₹199.45 |
| 50+ | ₹31.22 | ₹1,561.00 |
| 150+ | ₹27.52 | ₹4,128.00 |
| 500+ | ₹22.89 | ₹11,445.00 |
| 2,500+ | ₹20.82 | ₹52,050.00 |
| 5,000+ | ₹19.58 | ₹97,900.00 |
5 × ₹39.89
₹199.45
excl. GST
₹235.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC33172DT
₹199.45 for 5 + GST
Specifications
- Output Current
- 14mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 1mV
- Slew Rate
- 2V/us
- Input Offset Current(Ios)
- 40nA
- Operating Temperature
- -40℃~+105℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 20nA
- Input Offset Voltage Drift(Vos TC)
- 10uV/℃
- Quiescent Current
- 200uA
- Gain Bandwidth Product
- 2.1MHz
- Input Voltage Noise Density
- 29nV/√Hz@1kHz
- Dual Supply
- -22V~-2V;2V~22V
- Single Supply
- 4V~44V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.235 g
Overview
The MC3x172 series are dual bipolar operational amplifiers offering both low consumption (200 μA/Amp) and good speed (2.1 MHz, 2 V/μs). Moreover, the input common mode range extends down to the lower supply rail, allowing single supply operation from +4 V to +44 V.
Key features
- Good consumption/speed ratio: only 200 μA for 2.1 MHz, 2 V/µs
- Single (or dual) supply operation from +4 V to +44 V (±2 V to ±22 V)
- Wide input common mode mode voltage range including VCC-
- Low level output voltage close to VCC-: 100 mV typical
- Pin-to-pin compatible with standard dual operational amplifiers
