STDatasheet (PDF)

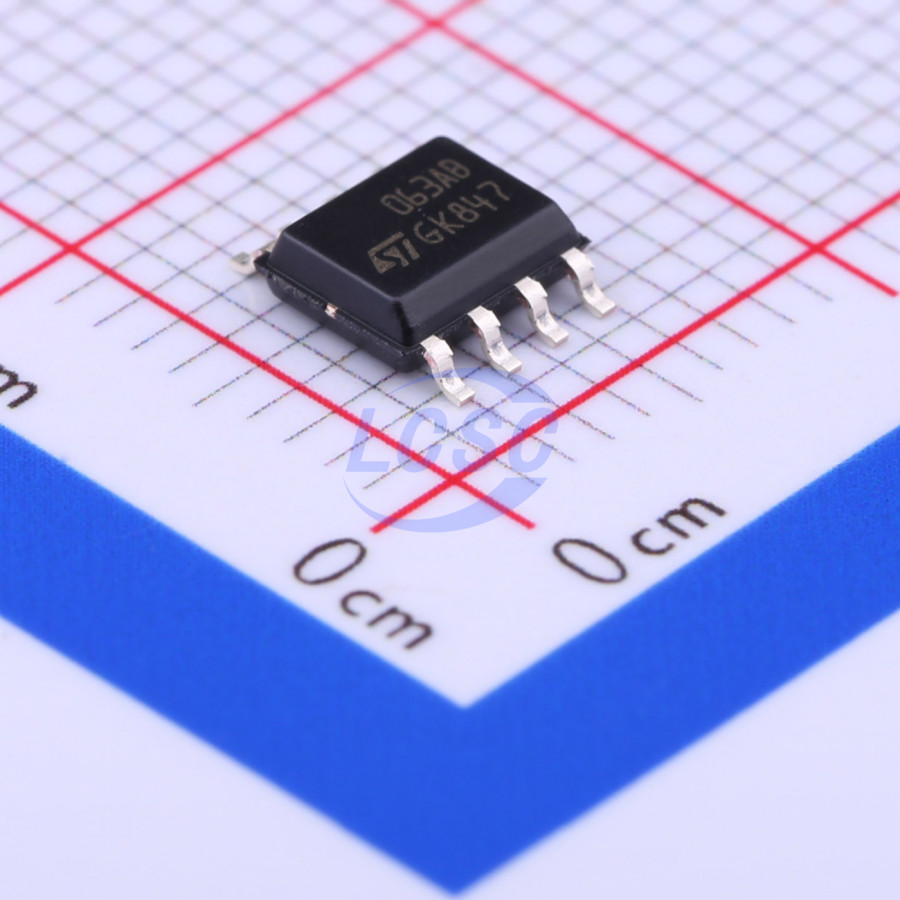

MC34063ABD-TR
24kHz~42kHz Adjustable 1.5A SOIC-8 Voltage Regulators - DC DC Switching Regulators RoHS
SOIC-8ROHS3 CompliantActive
DC-DC Converter Control Circuits
- Manufacturer
- ST
- Manufacturer part #
- MC34063ABD-TR
- Store part #
- C81155
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,087 in stock
#C81155
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹84.58 | ₹84.58 |
| 10+ | ₹67.20 | ₹672.00 |
| 30+ | ₹59.80 | ₹1,794.00 |
| 100+ | ₹50.45 | ₹5,045.00 |
| 500+ | ₹39.15 | ₹19,575.00 |
| 1,000+ | ₹36.53 | ₹36,530.00 |
1 × ₹84.58
₹84.58
excl. GST
₹99.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC34063ABD-TR
₹84.58 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 24kHz~42kHz
- Function
- Step-down type;Boost
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck;Boost;Inverting
- Operating Voltage
- 3V~40V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1.5A
- Quiescent Current
- 2.5mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.194 g
Overview
The MC34063A/E series is a monolithic control circuit which delivers the main functions for DCDC voltage converting. The device contains an internal temperature compensated reference, comparator, duty cycle controlled oscillator with an active current limit circuit, driver and high current output switch. Output voltage is adjustable through two external resistors with a 2% reference accuracy. Employing a minimum number of external components, the MC34063A/E device series is designed for step-down, step-up and voltageinverting applications.
Key features
- Output switch current in excess of 1.5 A
- 2% reference accuracy
- Low quiescent current: 2.5 mA (typ.)
- Operating from 2 V to 40 V
- Frequency operation to 100 kHz Active current limiting
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT83063AREZ#C2960952HTCSEMI · ESOP-8 | HTCSEMI | ESOP-8 | 185 | ₹32.93 · 185 in stock | View |
 | HT84063AREZ#C2960965HTCSEMI · SOP-8-EP | HTCSEMI | SOP-8-EP | 55 | ₹20.73 · 55 in stock | View |
 | HX34063-S#C41399173ZHHXDZ · SOP-8 | ZHHXDZ | SOP-8 | 2,255 | ₹14.63 · 2,255 in stock | View |
 | MC34063ADR-TP#C47117541TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 7,925 | ₹12.41 · 7,925 in stock | View |
