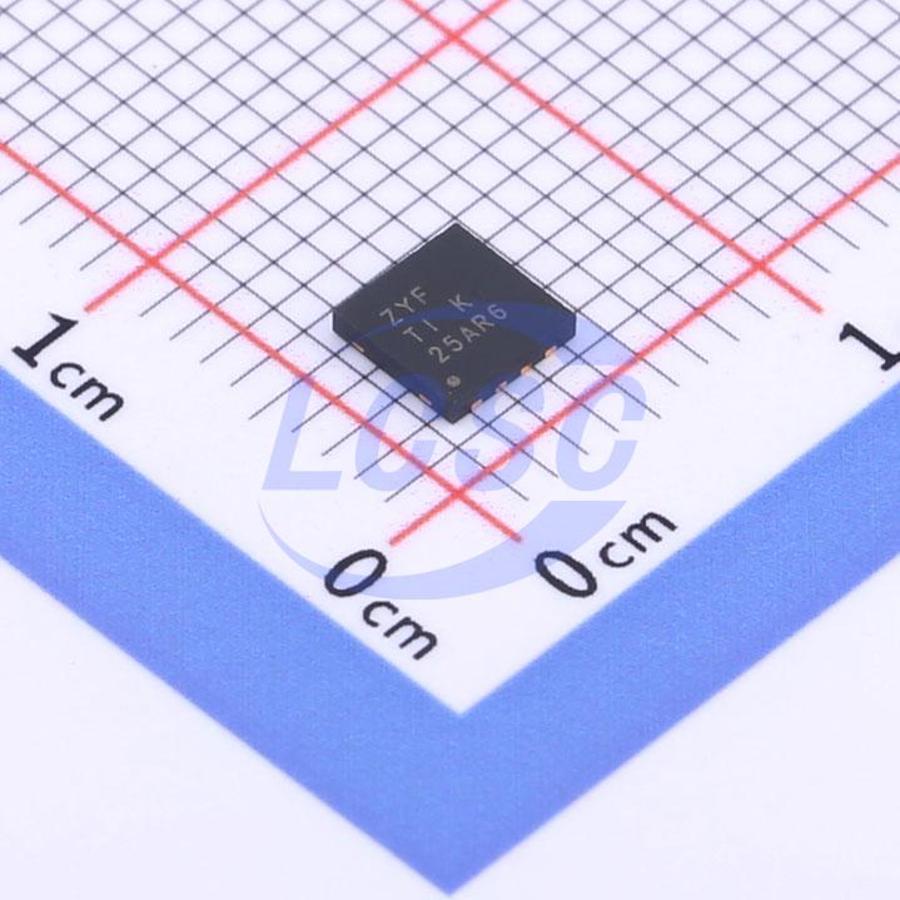

MC34063ADRJR
100kHz Adjustable 1.25V~40V 1.5A SON-8-EP(4x4) Voltage Regulators - DC DC Switching Regulators RoHS
SON-8-EP(4x4)ROHS3 CompliantActive
MC3x063A 1.5-A Peak Boost/Buck/Inverting Switching Regulators
- Manufacturer
- TI
- Manufacturer part #
- MC34063ADRJR
- Store part #
- C2070778
- Package / case
- SON-8-EP(4x4)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
117 in stock
#C2070778
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹93.23 | ₹93.23 |
| 10+ | ₹91.06 | ₹910.60 |
| 30+ | ₹89.55 | ₹2,686.50 |
| 100+ | ₹87.82 | ₹8,782.00 |
1 × ₹93.23
₹93.23
excl. GST
₹110.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
MC34063ADRJR
₹93.23 for 1 + GST
Specifications
- Operating Temperature
- 0℃~+70℃@(TA)
- Frequency - Switching
- 100kHz
- Function
- Boost;Step-down type
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost;Buck;Inverting
- Operating Voltage
- 3V~40V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 1.25V~40V
- Output Current
- 1.5A
- Quiescent Current
- 2.4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.001 g
Overview
The MC33063A and MC34063A devices are easy-to-use ICs containing all the primary circuitry needed for building simple DC-DC converters. These devices primarily consist of an internal temperature-compensated reference, a comparator, an oscillator, a PWM controller with active current limiting, a driver, and a high-current output switch. Thus, the devices require minimal external components to build converters in the boost, buck, and inverting topologies.
Applications
- Blood Gas Analyzers: Portable
- Cable Solutions
- HMIs (Human Machine Interfaces)
- Telecommunications
- Portable Devices
- Consumer & Computing Test & Measurement
Key features
- Wide Input Voltage Range: 3 V to 40 V
- High Output Switch Current: Up to 1.5 A
- Adjustable Output Voltage
- Oscillator Frequency Up to 100 kHz
- Precision Internal Reference: 2%
- Short-Circuit Current Limiting
- Low Standby Current
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCP3064MNTXG#C894983onsemi · DFN-8-EP(4x4) | onsemi | DFN-8-EP(4x4) | 25 | ₹253.67 · 25 in stock | View |
 | NCP3064BMNTXG#C894982onsemi · DFN-8-EP(4x4) | onsemi | DFN-8-EP(4x4) | 9 | ₹200.01 · 9 in stock | View |
 | NCP3063BMNTXG#C464241onsemi · DFN-8-EP(4x4) | onsemi | DFN-8-EP(4x4) | On request | ₹314.64 · 0 in stock | View |
 | MC33063ADRJR#C496120TI · XSON-8-EP(4x4) | TI | XSON-8-EP(4x4) | On request | ₹38.70 · 0 in stock | View |
