STDatasheet (PDF)

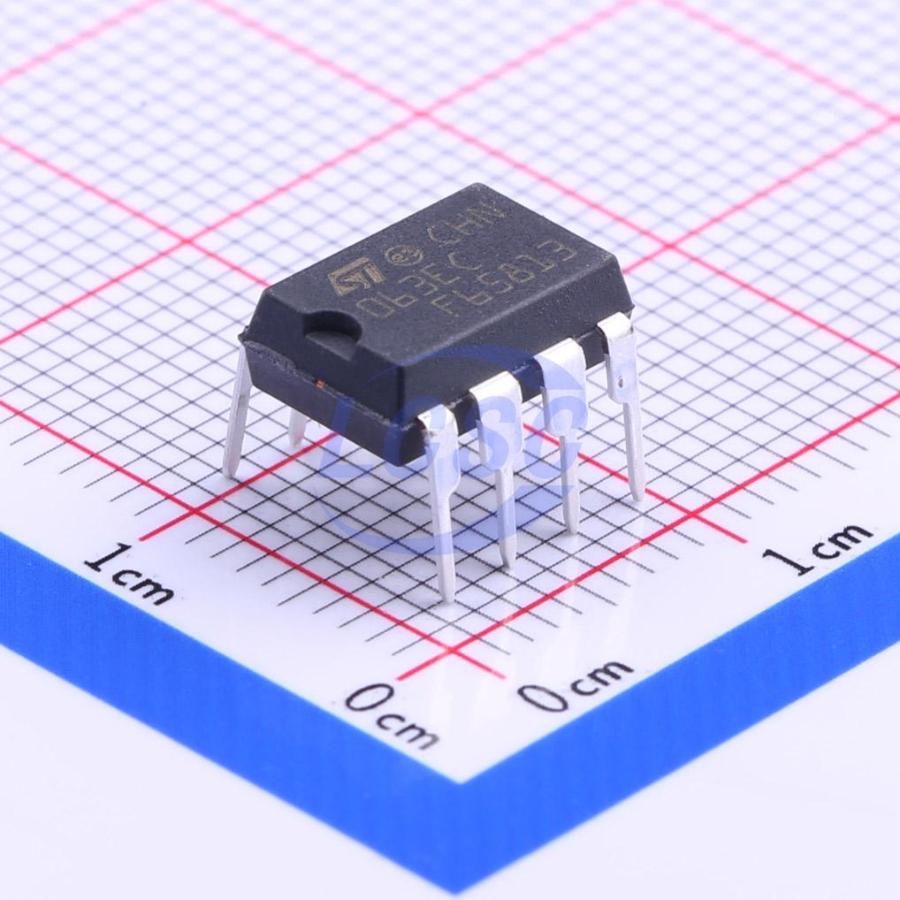

MC34063ECN
33kHz Adjustable 1.25V~38V 1.5A DIP-8 Voltage Regulators - DC DC Switching Regulators RoHS
DIP-8ROHS3 CompliantActive
MC34063A/E Series DC-DC Converter Control Circuits
- Manufacturer
- ST
- Manufacturer part #
- MC34063ECN
- Store part #
- C5180
- Package / case
- DIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
82,115 in stock
#C5180
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.08 | ₹190.40 |
| 50+ | ₹29.28 | ₹1,464.00 |
| 150+ | ₹25.51 | ₹3,826.50 |
| 500+ | ₹20.81 | ₹10,405.00 |
| 2,500+ | ₹18.72 | ₹46,800.00 |
| 5,000+ | ₹17.46 | ₹87,300.00 |
5 × ₹38.08
₹190.40
excl. GST
₹224.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
MC34063ECN
₹190.40 for 5 + GST
Specifications
- Operating Temperature
- 0℃~+70℃@(TA)
- Frequency - Switching
- 33kHz
- Function
- Boost;Step-down type
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck;Boost
- Operating Voltage
- 3V~40V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 1.25V~38V
- Output Current
- 1.5A
- Quiescent Current
- 1.5mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.901 g
Overview
The MC34063A/E series is a monolithic control circuit delivering the main functions for DC-DC voltage converting. The device contains an internal temperature compensated reference, comparator, duty cycle controlled oscillator with an active current limit circuit, driver and high current output switch. Output voltage is adjustable through two external resistors with a 2% reference accuracy. Employing a minimum number of external components the MC34063A/E devices series is designed for Step-Down, Step-Up and Voltage-Inverting applications.
Key features
- OUTPUT SWITCH CURRENT IN EXCESS OF 1.5A
- 2% REFERENCE ACCURACY
- LOW QUIESCENT CURRENT: 2.5mA (TYP.)
- OPERATING FROM 3V TO 40V
- FREQUENCY OPERATION TO 100KHz
- ACTIVE CURRENT LIMITING
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC33063AP1G#C236256onsemi · PDIP-8 | onsemi | PDIP-8 | 6 | ₹148.41 · 6 in stock | View |
 | MC34063N#C444399HGSEMI · DIP-8 | HGSEMI | DIP-8 | 605 | ₹25.35 · 605 in stock | View |
 | MC34063ABD#C51927324GREENMICRO · DIP-8 | GREENMICRO | DIP-8 | 40 | ₹17.49 · 40 in stock | View |
 | XD34063#C521142XINLUDA · DIP-8 | XINLUDA | DIP-8 | 200 | ₹23.05 · 200 in stock | View |
 | MC34063AP#C2872816TI · PDIP-8 | TI | PDIP-8 | On request | ₹131.84 · 0 in stock | View |
