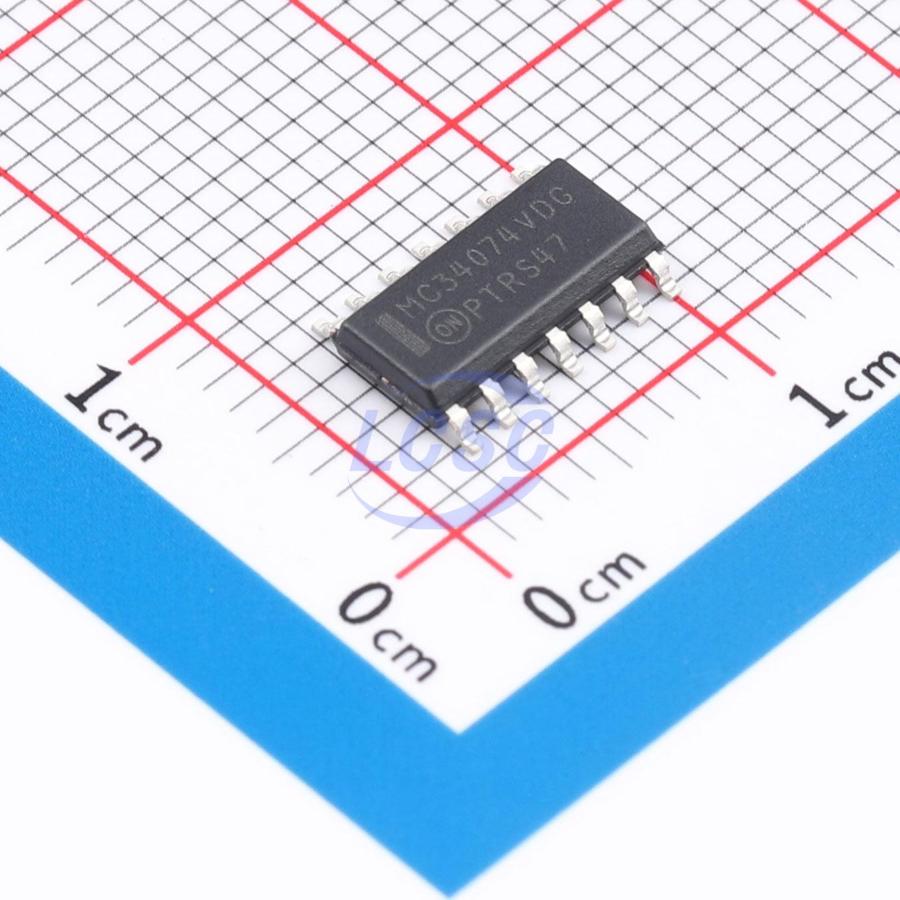

MC34074VDR2G

30mA 4 3mV 13V/us 97dB 100nA 1.9mA 4.5MHz SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-14ROHS3 CompliantActive

Single Supply 3.0 V to 44 V Operational Amplifiers

Manufacturer: onsemi
Manufacturer part #: MC34074VDR2G
Store part #: C903959
Package / case: SOIC-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

64 in stock

#C903959

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹71.72	₹71.72
10+	₹69.97	₹699.70
30+	₹68.68	₹2,060.40
100+	₹67.59	₹6,759.00

Quantity (min 1)

1 × ₹71.72

₹71.72

excl. GST

₹84.63 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

MC34074VDR2G

₹71.72 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 30mA
Number of Channels: 4
Vos - Input Offset Voltage: 3mV
Slew Rate: 13V/us
Input Offset Current(Ios): 6nA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 97dB
Ib - Input Bias Current: 100nA
Input Offset Voltage Drift(Vos TC): 10uV/℃
Quiescent Current: 1.9mA
Gain Bandwidth Product: 4.5MHz
Features: Short-Circuit Protection;ESD protection;High capacitive load driving
Input Voltage Noise Density: 32nV/√Hz@1kHz
Single Supply: 3V~44V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.338 g

Overview

The MC33071/72/74, MC34071/72/74, and NCV33072/74A series single-chip op-amps are manufactured using a high-quality bipolar process and innovative design concepts. This op-amp series delivers a 4.5 MHz gain-bandwidth product, 13 V/μs slew rate, and fast settling time without requiring JFET device technology. Although the series supports dual-supply operation, it is particularly suited for single-supply applications, as the common-mode input voltage range includes ground potential (VEE). The series employs a Darlington input stage, offering high input resistance, low input offset voltage, and high gain. The all-NPN output stage features no dead-band crossover distortion and large output voltage swing, providing high capacitive drive capability, excellent phase and gain margins, low open-loop high-frequency output impedance, and symmetrical source/sink AC frequency response. The MC33071/72/74, MC34071/72/74, and NCV33072/74A series devices are available in standard or enhanced performance (suffix A) grades, with specified commercial and industrial/automotive temperature ranges. The complete single, dual, and quad op-amp family is offered in plastic DIP, SOIC, QFN, and TSSOP surface-mount packages.

Key features

Wide bandwidth: 4.5 MHz
High slew rate: 13 V/μs
Fast settling time: 1.1 μs to 0.1%
Wide single-supply operating range: 3.0 V to 44 V
Wide input common-mode voltage range: includes ground (VEE)
Low input offset voltage: 3.0 mV max (suffix A)
Large output voltage swing: -14.7 V to +14 V (with ±15 V supply)
High capacitive load drive capability: 0 pF to 10,000 pF
Low total harmonic distortion: 0.02%
Excellent phase margin: 60°
Excellent gain margin: 12 dB
Output short-circuit protection
ESD diodes/clamps provide input protection for dual and quad op amps
NCV prefix for automotive and other applications requiring unique site of origin and change control requirements; AEC-Q100 qualified with PPAP capability
These devices are lead-free, halogen-free/BFR-free, and RoHS compliant
