TDSEMICDatasheet (PDF)

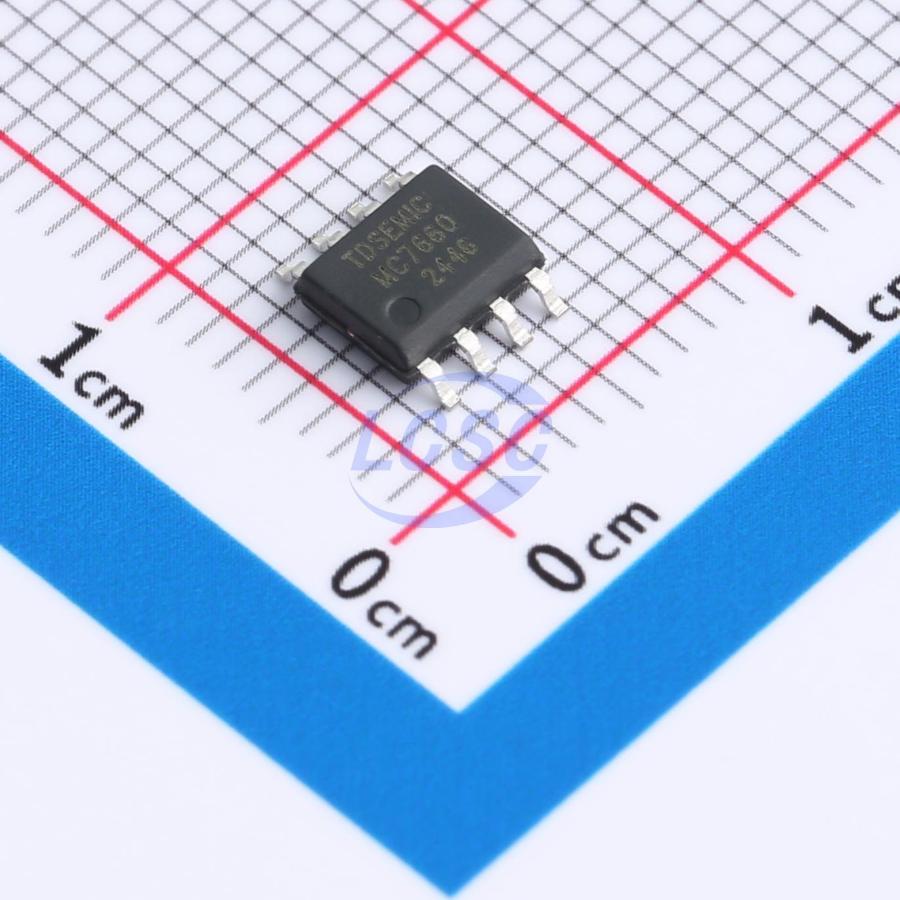

MC7660-TD
Inverted 5kHz SOP-8 Voltage Regulators - DC DC Switching Regulators RoHS
SOP-8ROHS CompliantActive
DC/DC voltage conversion integrated circuit
- Manufacturer
- TDSEMIC
- Manufacturer part #
- MC7660-TD
- Store part #
- C42422041
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,400 in stock
#C42422041
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.42 | ₹117.10 |
| 50+ | ₹20.45 | ₹1,022.50 |
| 150+ | ₹19.18 | ₹2,877.00 |
| 500+ | ₹17.60 | ₹8,800.00 |
| 2,500+ | ₹16.88 | ₹42,200.00 |
| 5,000+ | ₹16.46 | ₹82,300.00 |
5 × ₹23.42
₹117.10
excl. GST
₹138.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC7660-TD
₹117.10 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+65℃
- Function
- Inverted
- Frequency - Switching
- 5kHz
- Features
- Charge pump / inverting topology switching;Low ripple / low noise architecture
- Operating Voltage
- 1.5V~5V
- Energy Efficiency
- 98%
- Quiescent Current
- 180uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.135 g
Overview
Monolithic DC/DC voltage converter IC fabricated in CMOS process. Features voltage inversion, doubling, splitting, and multiplied voltage output. Operates stably from 1.5V to 5V with no external diodes required across the entire temperature range. Delivers 10mA of current per 0.5V voltage drop. The BOOST input raises the oscillator frequency above the audio band, reducing output ripple and thereby relaxing external capacitance requirements. Combines low quiescent current with high conversion efficiency; integrates on-chip oscillator control circuitry and four power MOSFET switches. Typical applications include negative voltage generation, voltage doubling, and input voltage halving.
Applications
- Generate -5V from +5V logic supply
- Personal communication devices
- LCD display module power supply
- Op-amp split/symmetric power supply generation
- EIA/TIA-232E and EIA/TIA-562 interface power supply
- A/D converter power supply
- Handheld instruments
- Panel meters
Key features
- Miniature package
- Operating voltage range: 1.5V ~ 5V
- 98% typical power conversion efficiency
- Inverting, voltage doubling, voltage dividing, and voltage multiplying outputs
- BOOST pin for oscillation frequency enhancement
- No-load current: 180μA max at 5V
- No external diode required at high voltage operation
