onsemiDatasheet (PDF)

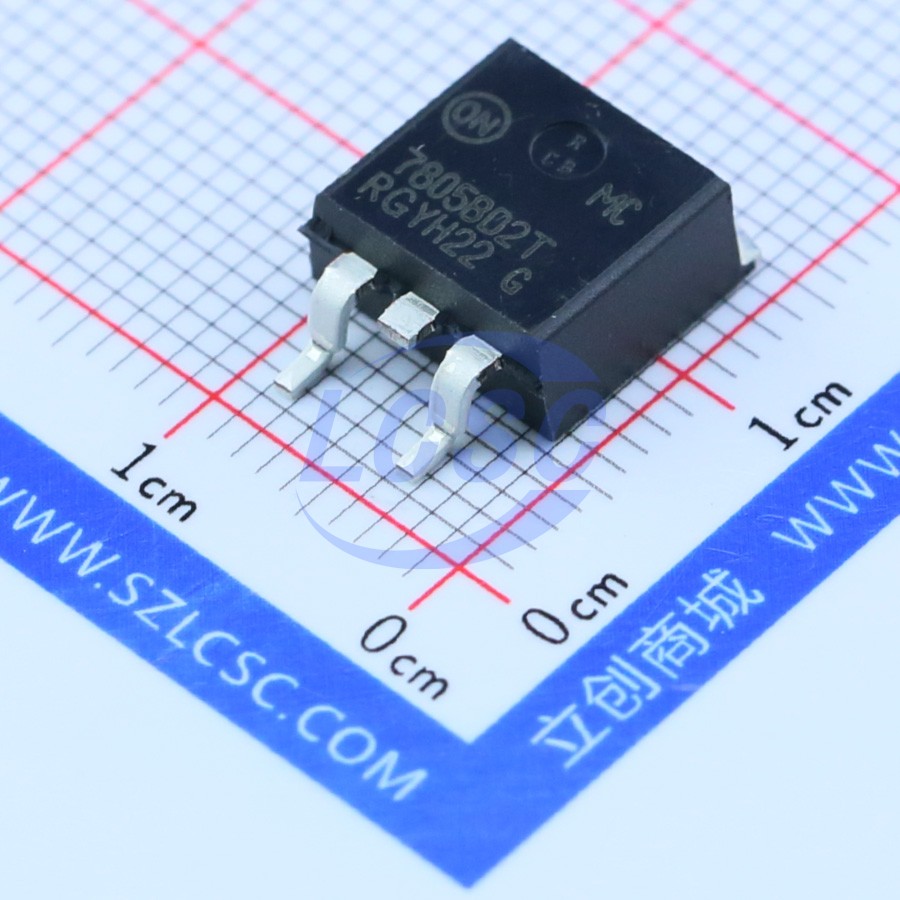

MC7805BD2TR4G
5V Positive Fixed TO-263-2 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-263-2ROHS3 CompliantActive
1.0 A Positive Voltage Regulators
- Manufacturer
- onsemi
- Manufacturer part #
- MC7805BD2TR4G
- Store part #
- C15833
- Package / case
- TO-263-2
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,076 in stock
#C15833
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹74.62 | ₹74.62 |
| 10+ | ₹58.52 | ₹585.20 |
| 30+ | ₹51.78 | ₹1,553.40 |
| 100+ | ₹43.08 | ₹4,308.00 |
| 500+ | ₹36.12 | ₹18,060.00 |
| 800+ | ₹33.72 | ₹26,976.00 |
1 × ₹74.62
₹74.62
excl. GST
₹88.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
MC7805BD2TR4G
₹74.62 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 3.2mA
- Output Configuration
- Positive
- Operating Voltage
- 20V
- Output Current
- 1A
- Features
- Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.816 g
Overview
These voltage regulators are monolithic integrated circuits designed as fixed−voltage regulators for a wide variety of applications including local, on−card regulation. These regulators employ internal current limiting, thermal shutdown, and safe−area compensation. With adequate heatsinking they can deliver output currents in excess of 1.0 A. Although designed primarily as a fixed voltage regulator, these devices can be used with external components to obtain adjustable voltages and currents.
Key features
- Output Current in Excess of 1.0 A
- No External Components Required
- Internal Thermal Overload Protection
- Internal Short Circuit Current Limiting
- Output Transistor Safe−Area Compensation
- Output Voltage Offered in 2% and 4% Tolerance
- Available in Surface Mount D²PAK−3, DPAK−3 and Standard 3−Lead Transistor Packages
- NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes
- Pb−Free Packages are Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCV7805BD2TR4G#C327508onsemi · D2PAK | onsemi | D2PAK | 2,547 | ₹114.74 · 2,547 in stock | View |
 | MC7805ABD2TR4G#C152462onsemi · TO-263-2 | onsemi | TO-263-2 | 726 | ₹111.66 · 726 in stock | View |
 | MC7805BD2TG#C233214onsemi · D2PAK | onsemi | D2PAK | 25 | ₹100.56 · 25 in stock | View |
 | MC7805ACD2TR4G#C152460onsemi · TO-263-2 | onsemi | TO-263-2 | 4,095 | ₹80.66 · 4,095 in stock | View |
 | MC7805CD2TR4G#C38743onsemi · TO-263-2 | onsemi | TO-263-2 | 13,359 | ₹55.26 · 13,359 in stock | View |
