onsemiDatasheet (PDF)

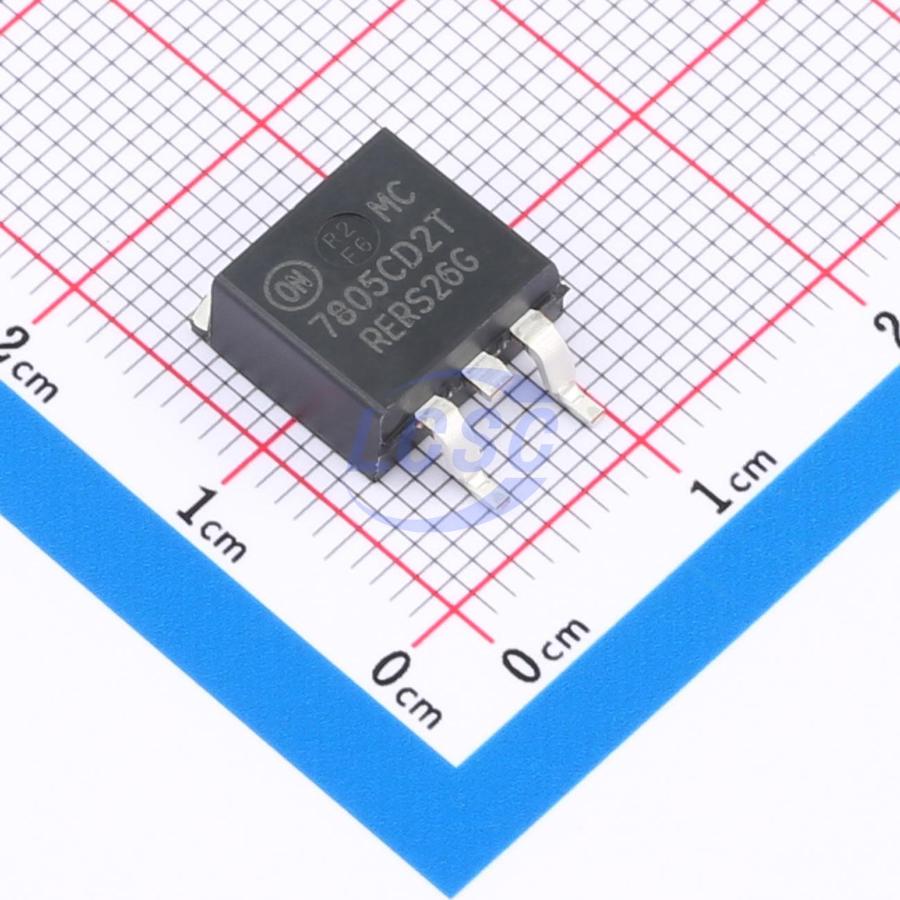

MC7805CD2TR4G
5V Positive Fixed TO-263-2 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-263-2ROHS3 CompliantActive
1.0 A Positive Voltage Regulators
- Manufacturer
- onsemi
- Manufacturer part #
- MC7805CD2TR4G
- Store part #
- C38743
- Package / case
- TO-263-2
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13,359 in stock
#C38743
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.26 | ₹55.26 |
| 10+ | ₹43.08 | ₹430.80 |
| 30+ | ₹38.08 | ₹1,142.40 |
| 100+ | ₹31.55 | ₹3,155.00 |
| 500+ | ₹27.20 | ₹13,600.00 |
| 800+ | ₹25.45 | ₹20,360.00 |
1 × ₹55.26
₹55.26
excl. GST
₹65.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
MC7805CD2TR4G
₹55.26 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 3.2mA
- Output Configuration
- Positive
- Operating Voltage
- 35V
- Output Current
- 1A
- Features
- Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.816 g
Overview
These voltage regulators are monolithic integrated circuits designed as fixed−voltage regulators for a wide variety of applications including local, on−card regulation. These regulators employ internal current limiting, thermal shutdown, and safe−area compensation. With adequate heatsinking they can deliver output currents in excess of 1.0 A. Although designed primarily as a fixed voltage regulator, these devices can be used with external components to obtain adjustable voltages and currents.
Key features
- Output Current in Excess of 1.0 A
- No External Components Required
- Internal Thermal Overload Protection
- Internal Short Circuit Current Limiting
- Output Transistor Safe−Area Compensation
- Output Voltage Offered in 2% and 4% Tolerance
- Available in Surface Mount D²PAK−3, DPAK−3 and Standard 3−Lead Transistor Packages
- NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes
- Pb−Free Packages are Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC7805BD2TG#C233214onsemi · D2PAK | onsemi | D2PAK | 25 | ₹100.56 · 25 in stock | View |
 | L7805ABD2T-TR#C86206ST · TO-263-2 | ST | TO-263-2 | 68,340 | ₹38.53 · 68,340 in stock | View |
 | L7805CD2T-HXY#C7469133HXY MOSFET · TO-263 | HXY MOSFET | TO-263 | 85 | ₹39.64 · 85 in stock | View |
 | L7805 TO-263#C54430182KTP · TO-263 | KTP | TO-263 | 530 | ₹32.90 · 530 in stock | View |
 | 78T05AL-TQ2-R#C75503UTC · TO-263 | UTC | TO-263 | 445 | ₹36.45 · 445 in stock | View |
