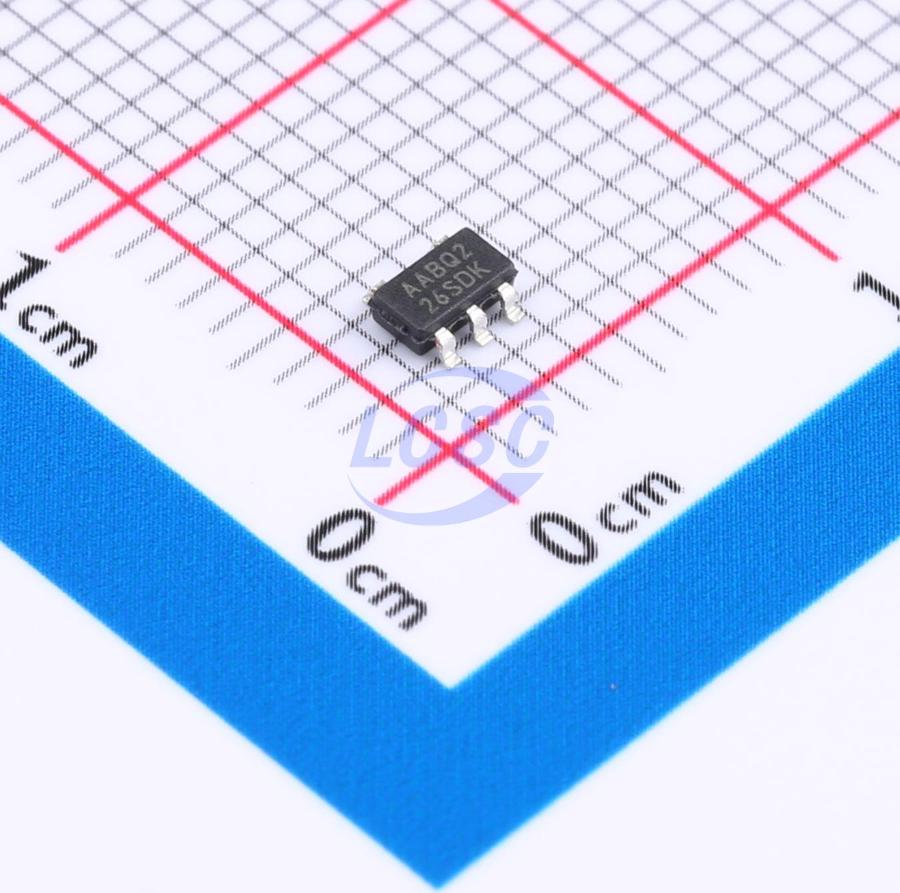

MCP1663T-E/OT

The MCP1663 device is a compact, high-efficiency, fixed-frequency, non-synchronous step-up DC-DC converter which integrates a 36V, 400 mΩ NMOS switch. It provides a space-efficient high-voltage step-up power supply solution for applications powered by either two-cell or three-cell alkaline, Ultimate Lithium, NiCd, NiMH, one-cell Li-Ion or Li-Polymer batteries. The integrated switch is protected by the 1.8A cycle-by-cycle inductor peak current limit operation. There is an output overvoltage protection which turns off switching in case the feedback resistors are accidentally disconnected or the feedback pin is short-circuited to GND. Low-voltage technology allows the regulator to start-up without high inrush current or output voltage overshoot from a low-voltage input. The device features a UVLO which avoids start-up and operation with low inputs or discharged batteries for two cell-powered applications. For standby applications (EN = GND), the device stops switching, enters sleep mode and consumes 0.3 μA (typical) of input current. MCP1663 is easy to use and allows creating classic boost, SEPIC or flyback DC-DC converters within a small Printed Circuit Board (PCB) area. All compensation and protection circuitry is integrated to minimize the number of external components. Ceramic input and output capacitors are used.

Applications

• Two and Three-Cell Alkaline, Lithium Ultimate and NiMH/NiCd Portable Products
• Single-Cell Li-Ion to 5V, 12V or 24V Converters
• LCD Bias Supply for Portable Applications
• Camera Phone Flash
• Portable Medical Equipment
• Hand-Held Instruments

Key features

• 36V, 400 mΩ Integrated Switch
• Up to 92% Efficiency
• Output Voltage Range: up to 32V
• 1.8A Peak Input Current Limit
• Input Voltage Range: 2.4V to 5.5V
• Undervoltage Lockout (UVLO)
• No Load Input Current: 250 μA, typical
• Sleep mode with 0.3 μA Typical Shutdown Quiescent Current
• PWM Operation with Skip Mode: 500 kHz
• Feedback Voltage Reference: VFB = 1.227V
• Cycle-by-Cycle Current Limiting
• Internal Compensation
• Inrush Current Limiting and Internal Soft Start
• Output Overvoltage Protection (OVP)
• Overtemperature Protection
• Easily Configurable for SEPIC, Cuk or Flyback Topologies
• Available Packages: 5-Lead SOT-23, 8-Lead 2x3 TDFN
