HXY MOSFETDatasheet (PDF)

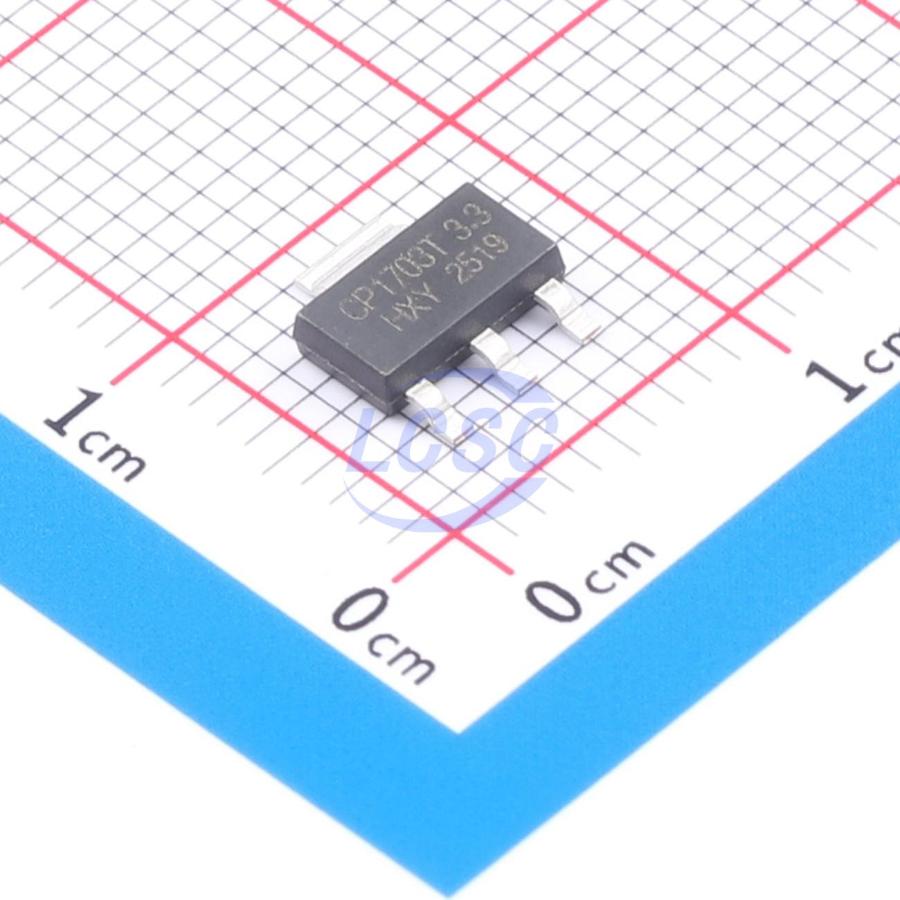

MCP1703T-3302E/DB-HXY
Linear Voltage Regulator IC Fixed 800mA SOT-223
SOT-223ROHS CompliantActive
1A BiCMOS LDO
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- MCP1703T-3302E/DB-HXY
- Store part #
- C49006629
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
191 in stock
#C49006629
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹204.73 | ₹204.73 |
| 10+ | ₹169.97 | ₹1,699.70 |
| 30+ | ₹151.06 | ₹4,531.80 |
| 100+ | ₹129.51 | ₹12,951.00 |
| 500+ | ₹119.96 | ₹59,980.00 |
| 1,000+ | ₹115.68 | ₹1,15,680.00 |
1 × ₹204.73
₹204.73
excl. GST
₹241.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
MCP1703T-3302E/DB-HXY
₹204.73 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 90uA
- Output Configuration
- Positive
- Operating Voltage
- 16V
- Output Current
- 800mA
- Output Type
- Fixed
- Features
- Over Current Protection;Thermal shutdown;Short Circuit Protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
Overview
The MCP1703T-xx02E/DB series linear regulators utilize a unique BiCMOS process, featuring low quiescent current (90μA), low dropout voltage, and high output voltage accuracy. The space-efficient SOT-223 package is suited for portable applications. Output voltage is factory-preset and laser-trimmed to ±1.5% accuracy, with options ranging from 1.8V to 5.0V. The device incorporates thermal shutdown and current foldback protection to prevent damage under the most severe operating conditions. The MCP1703T-xx02E/DB remains stable with output capacitance of 10μF or greater.
Applications
- Battery-powered devices
- Personal communication devices
- Home appliances/electronics
- PC peripherals, hard disk drives
Key features
- Ultra-low dropout voltage: less than 800mV at 0.8A output
- Low quiescent current: 90μA typical
- High output voltage accuracy: ±1.5%
- Guaranteed 0.8A output current (SOT223 package, input-to-output differential less than 1700mV)
- Up to 0.3A output current in SOT223 package for 12V to +5V regulation
- Compact package: SOT-223
- Factory-preset output voltage
- Short-circuit current foldback
- Low temperature coefficient
