HXY MOSFETDatasheet (PDF)

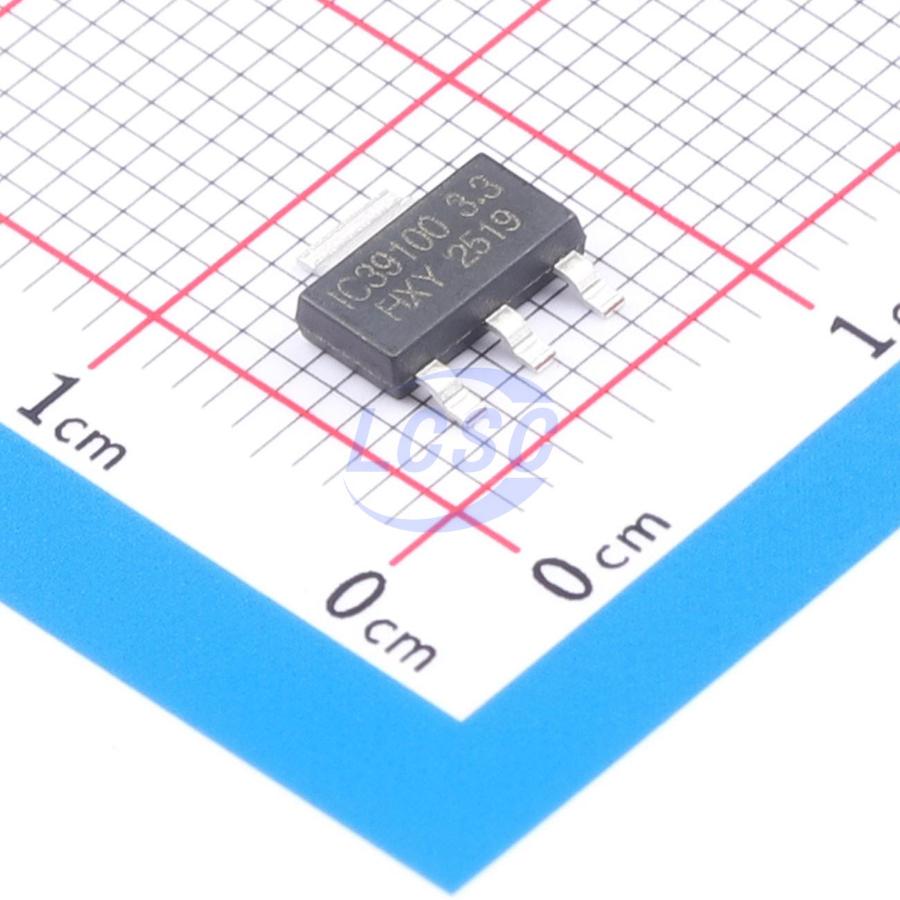

MIC39100-3.3WS-TR-HXY
Linear Voltage Regulator IC Fixed 800mA SOT-223
SOT-223ROHS CompliantActive
1A BiCMOS LDO
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- MIC39100-3.3WS-TR-HXY
- Store part #
- C49006628
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
138 in stock
#C49006628
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹103.43 | ₹103.43 |
| 10+ | ₹83.69 | ₹836.90 |
| 30+ | ₹73.72 | ₹2,211.60 |
| 100+ | ₹63.97 | ₹6,397.00 |
| 500+ | ₹58.12 | ₹29,060.00 |
| 1,000+ | ₹55.08 | ₹55,080.00 |
1 × ₹103.43
₹103.43
excl. GST
₹122.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
MIC39100-3.3WS-TR-HXY
₹103.43 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 90uA
- Output Configuration
- Positive
- Operating Voltage
- 16V
- Output Current
- 800mA
- Output Type
- Fixed
- Features
- Over Current Protection;Thermal shutdown;Short Circuit Protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.11 g
Overview
The MIC39100-xxWS-TR series linear regulators utilize a unique BiCMOS technology, featuring low quiescent current (90μA), low dropout voltage, and high output voltage accuracy. The space-efficient SOT-223 package is suited for portable applications. Output voltage is factory-preset and trimmed to ±1.5% accuracy, with selectable voltages ranging from 1.8V to 5.0V. These robust devices integrate thermal shutdown and current foldback to prevent failure under the harshest operating conditions. The device remains stable with an output capacitor of 10μF or greater.
Applications
- Battery-powered devices
- Personal communication devices
- Home appliances/electronics
- PC peripherals
Key features
- Ultra-low dropout voltage, less than 800mV at 0.8A
- Low quiescent current: 90µA typical
- High output voltage accuracy: ±1.5%
- Guaranteed 0.8A output (in SOT223 package, when input-to-output voltage differential is less than 1700mV)
- In SOT223 package, output current up to 0.3A when stepping down from 12V to +5V
- Compact package: SOT-223
- Factory-preset output voltage
- Short-circuit current foldback
- Low temperature coefficient
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MCP1703T-3302E/DB-HXY#C49006629HXY MOSFET · SOT-223 | HXY MOSFET | SOT-223 | 191 | ₹204.73 · 191 in stock | View |
 | TLV1117-33IDCYR-HXY#C42411812HXY MOSFET · SOT-223 | HXY MOSFET | SOT-223 | 2,185 | ₹21.91 · 2,185 in stock | View |
 | TLV1117-33CDCYR-HXY#C42411813HXY MOSFET · SOT-223 | HXY MOSFET | SOT-223 | 45 | ₹26.82 · 45 in stock | View |
 | REG1117-3.3-HXY#C42411814HXY MOSFET · SOT-223 | HXY MOSFET | SOT-223 | 2,665 | ₹157.93 · 2,665 in stock | View |
 | LM1117MPX-3.3/NOPB-HXY#C42411815HXY MOSFET · SOT-223 | HXY MOSFET | SOT-223 | 4,135 | ₹23.50 · 4,135 in stock | View |
