MICROCHIPDatasheet (PDF)

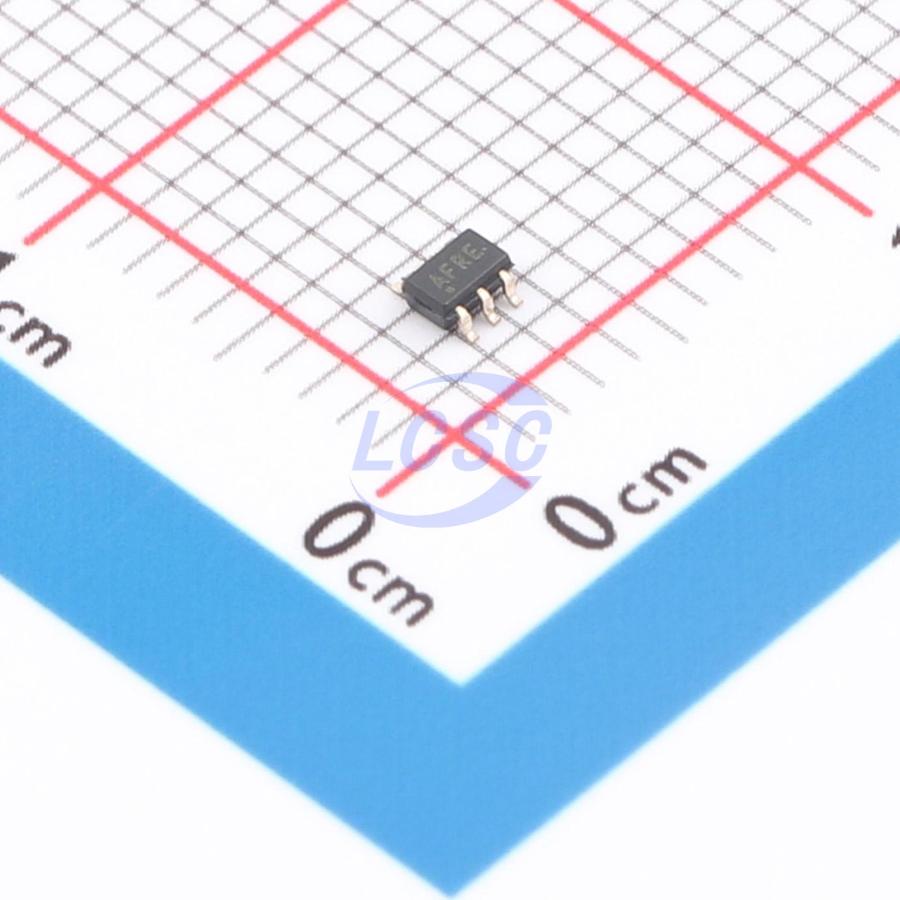

MCP4017T-103E/LTY
±20% I2C 10kΩ SC-70-6 Digital Potentiometers
SC-70-6RoHSActive
- Manufacturer
- MICROCHIP
- Manufacturer part #
- MCP4017T-103E/LTY
- Store part #
- C48820138
- Package / case
- SC-70-6
- Category
- Digital Potentiometers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,995 in stock
#C48820138
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹85.56 | ₹85.56 |
| 10+ | ₹69.44 | ₹694.40 |
| 30+ | ₹61.40 | ₹1,842.00 |
| 100+ | ₹53.56 | ₹5,356.00 |
| 500+ | ₹48.77 | ₹24,385.00 |
| 1,000+ | ₹46.37 | ₹46,370.00 |
1 × ₹85.56
₹85.56
excl. GST
₹100.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MCP4017T-103E/LTY
₹85.56 for 1 + GST
Specifications
- Voltage - Supply
- 1.8V~5.5V
- Memory Type
- RAM
- Tolerance
- ±20%
- Interface
- I2C
- Number of Taps
- 128
- Temperature Coefficient(Typ)
- 150ppm/℃
- Features
- Power-on reset
- Operating Temperature
- -40℃~+125℃
- Resistance Value (Ohms)
- 10kΩ
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.008 g
Overview
Key features
- Configurable as potentiometer or rheostat mode
- 7-bit resistor network resolution with 127 resistors (128 steps)
- Full range wiper operation from zero-scale to full-scale
- R_AB resistance options: 5 kΩ, 10 kΩ, 50 kΩ, or 100 kΩ
- Low wiper resistance: 100 Ω typical
- Low temperature coefficient: absolute TC typical 50 ppm (0°C ~ 70°C) in rheostat mode; ratiometric TC typical 10 ppm in potentiometer mode
- Simple I²C interface supporting read/write commands
- Power-on reset protection (1.5V typical)
- Mid-scale default wiper position at power-up
- Low power consumption: quiescent current 2.5 μA typical
- Wide supply voltage range: 2.7V ~ 5.5V (device specifications guaranteed); 1.8V ~ 5.5V (device operational range)
- Wide bandwidth (−3 dB) operation: 2 MHz typical for 5.0 kΩ device
- Extended operating temperature range: −40°C ~ +125°C
- Ultra-compact SC70 package
- Pb-free package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MCP4017T-103E/LT#C623396MICROCHIP · SC-70-6 | MICROCHIP | SC-70-6 | 1,771 | ₹146.92 · 1,771 in stock | View |
