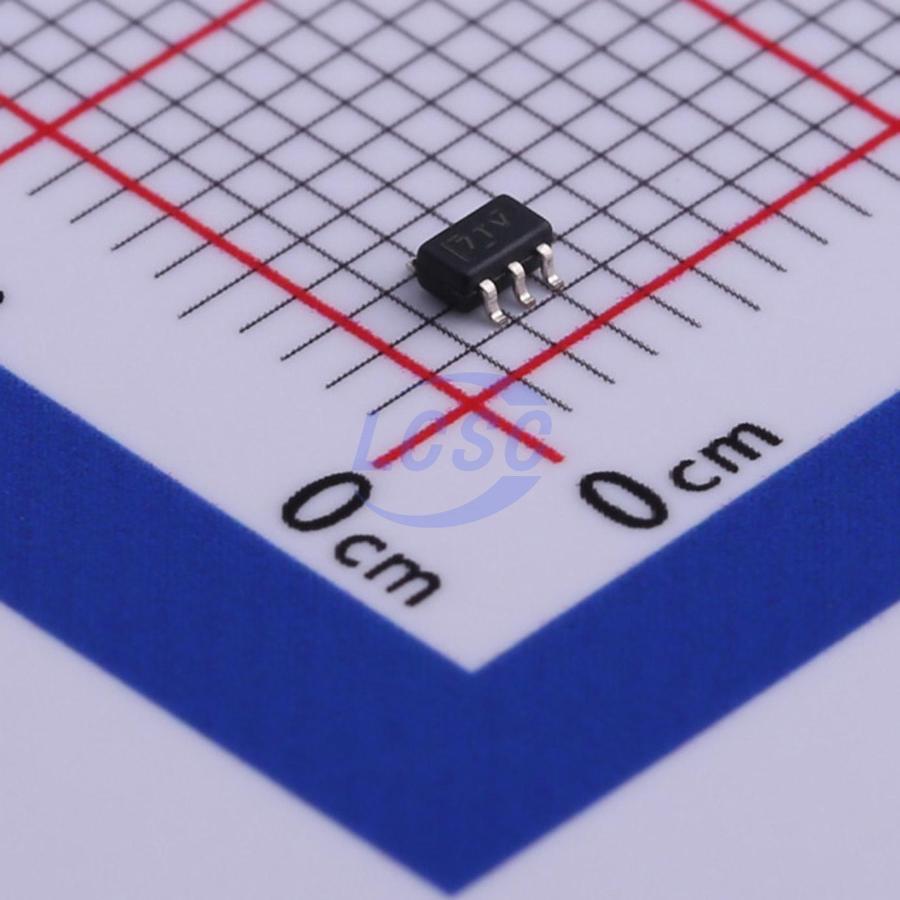

TPL0401A-10DCKR
±20% I2C 10kΩ SC-70-6 Digital Potentiometers RoHS
TPL0401x-10 128-TAPS Single-Channel Digital Potentiometer With IC Interface
- Manufacturer
- TI
- Manufacturer part #
- TPL0401A-10DCKR
- Store part #
- C485973
- Package / case
- SC-70-6
- Category
- Digital Potentiometers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,958 in stock
#C485973
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹196.49 | ₹196.49 |
| 10+ | ₹161.90 | ₹1,619.00 |
| 30+ | ₹142.96 | ₹4,288.80 |
| 100+ | ₹121.42 | ₹12,142.00 |
| 500+ | ₹111.85 | ₹55,925.00 |
| 1,000+ | ₹107.72 | ₹1,07,720.00 |
1 × ₹196.49
₹196.49
excl. GST
₹231.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPL0401A-10DCKR
₹196.49 for 1 + GST
Specifications
- Voltage - Supply
- 2.7V~5.5V
- Resistance value change
- Linear
- Number of Taps
- 128
- Tolerance
- ±20%
- Interface
- I2C
- Temperature Coefficient(Typ)
- 22ppm/℃
- Operating Temperature
- -40℃~+125℃
- Resistance Value (Ohms)
- 10kΩ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.018 g
Overview
The TPL0401x-10 device is a single-channel, lineartaper digital potentiometer with 128 wiper positions. The TPL0401x-10 has the low terminal internal and connected to GND. The position of the wiper can be adjusted using an I²C interface. The TPL0401x-10 is available in a 6-pin SC70 package with a specified temperature range of -40°C to +125°C. The part has a 10-kΩ end-to-end resistance and can operate with a supply voltage range of 2.7 V to 5.5 V. This kind of product is widely used in setting the voltage reference for low power DDR3 memory.
Applications
- Mechanical Potentiometer Replacement
- Adjustable Power Supplies
- Adjustable Gain Amplifiers and Offset Trimming
- Precision Calibration of Setpoint Thresholds
- Sensor Trimming and Calibration
Key features
- Single-Channel, 128-Position Resolution
- 10-kΩ End-to-End Resistance Options
- Low Temperature Coefficient: 22 ppm/°C
- I²C Serial Interface
- 2.7 V to 5.5 V Single-Supply Operation
- ±20% Resistance Tolerance
- A and B Versions Have Different I²C Addresses
- L Terminal is Internal and Connected to GND
- Operating Temperature: -40°C to +125°C
- Available in Industry Standard SC70 Packages
- ESD Performance Tested per JESD 22 – 2000-V Human-Body Model (A114-B, Class II)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPL0401B-10DCKR#C2666599TI · SC-70-6 | TI | SC-70-6 | 7,832 | ₹170.83 · 7,832 in stock | View |
 | TPL0401A-10QDCKRQ1#C2666610TI · SC-70-6 | TI | SC-70-6 | 149 | ₹216.65 · 149 in stock | View |
 | TPL0401B-10QDCKRQ1#C2666612TI · SC-70-6 | TI | SC-70-6 | 29 | ₹226.76 · 29 in stock | View |
 | MCP4017T-103E/LT#C623396MICROCHIP · SC-70-6 | MICROCHIP | SC-70-6 | 1,771 | ₹146.92 · 1,771 in stock | View |
| AD5247BKSZ10-2RL7#C649410ADI · SC-70-6 | ADI | SC-70-6 | 7 | ₹276.27 · 7 in stock | View | |
