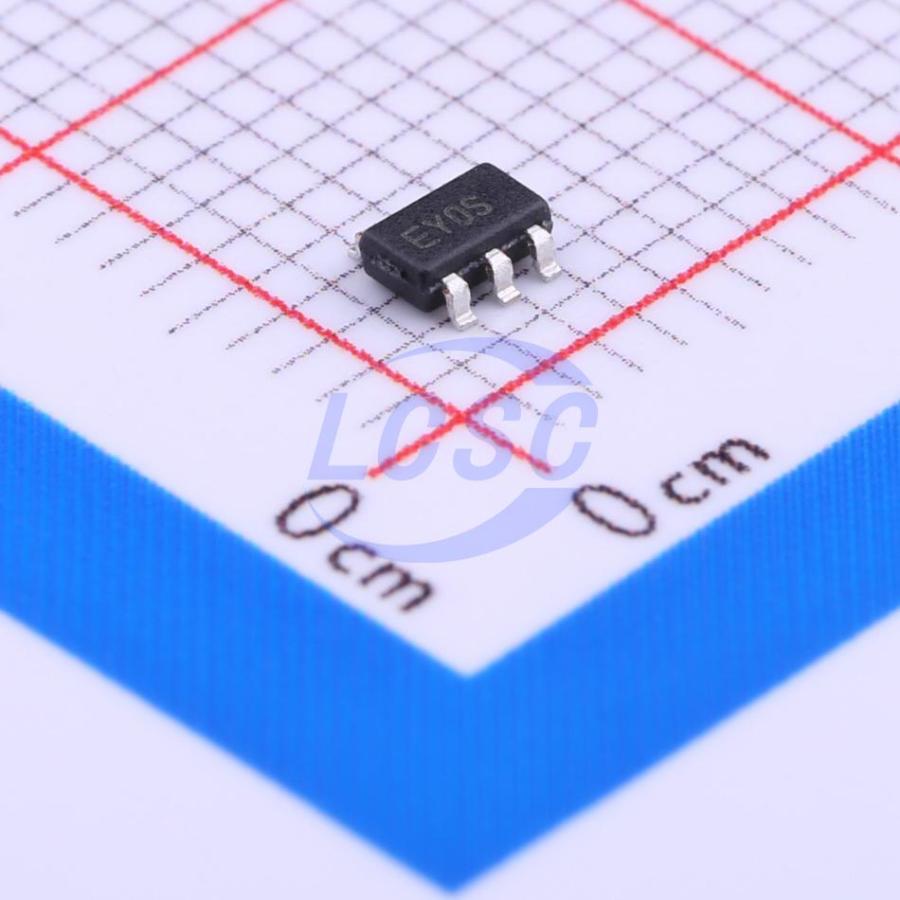

MCP6021T-E/OT

30mA 1 500uV 7V/us 90dB 1pA 1mA 10MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS3 CompliantActive

Rail-to-Rail Input/Output, 10 MHz Op Amps

Manufacturer: MICROCHIP
Manufacturer part #: MCP6021T-E/OT
Store part #: C50538
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,460 in stock

#C50538

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹192.95	₹192.95
10+	₹158.80	₹1,588.00
30+	₹140.09	₹4,202.70
100+	₹118.78	₹11,878.00
500+	₹109.43	₹54,715.00
1,000+	₹105.07	₹1,05,070.00

Quantity (min 1)

1 × ₹192.95

₹192.95

excl. GST

₹227.68 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

MCP6021T-E/OT

₹192.95 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 30mA
Number of Channels: 1
Vos - Input Offset Voltage: 500uV
Slew Rate: 7V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 90dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 3.5uV/℃
Quiescent Current: 1mA
Gain Bandwidth Product: 10MHz
Features: Built-in compensation;ESD protection
Input Voltage Noise Density: 8.7nV/√Hz@10kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.5V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.043 g

Overview

The MCP6021, MCP6021R, MCP6022, MCP6023 and MCP6024 are rail-to-rail input and output op amps with high performance. Key specifications include: wide bandwidth (10 MHz), low noise (8.7 nV/√Hz), low input offset voltage and low distortion (0.00053% THD+N). The MCP6023 also offers a Chip Select pin (CS) that gives power savings when the part is not in use. The single MCP6021 and MCP6021R are available in SOT-23-5. The single MCP6021, single MCP6023 and dual MCP6022 are available in 8-lead PDIP, SOIC and TSSOP. The Extended Temperature single MCP6021 is available in 8-lead MSOP. The quad MCP6024 is offered in 14-lead PDIP, SOIC and TSSOP packages. The MCP6021/1R/2/3/4 family is available in Industrial and Extended temperature ranges. It has a power supply range of 2.5V to 5.5V.

Applications

Automotive
Multi-Pole Active Filters
Audio Processing
DAC Buffer
Test Equipment
Medical Instrumentation

Key features

Rail-to-Rail Input/Output
Wide Bandwidth: 10 MHz (typical)
Low Noise: 8.7 nV/√Hz, at 10 kHz (typical)
Low Offset Voltage:
Industrial Temperature: ±500 μV (maximum)
Extended Temperature: ±250 μV (maximum)
Mid-Supply VREF: MCP6021 and MCP6023
Low Supply Current: 1 mA (typical)
Total Harmonic Distortion: 0.00053% (typical, G = 1 V/V)
Unity Gain Stable
Power Supply Range: 2.5V to 5.5V
Temperature Range:
Industrial: -40°C to +85°C
Extended: -40°C to +125°C

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
MCP6021RT-E/OT#C623458MICROCHIP · SOT-23-5	MICROCHIP	SOT-23-5	1	₹204.73 · 1 in stock	View
COS6021TR#C18198083COSINE · SOT23-5	COSINE	SOT23-5	245	₹17.19 · 245 in stock	View
COS721TR#C693056COSINE · SOT-23-5	COSINE	SOT-23-5	7,840	₹19.33 · 7,840 in stock	View
MCP6291T-E/OT#C145575MICROCHIP · SOT-23-5	MICROCHIP	SOT-23-5	16,818	₹108.54 · 16,818 in stock	View
SL721XT5#C19632483Slkor · SOT-23-5	Slkor	SOT-23-5	105	₹26.26 · 105 in stock	View
