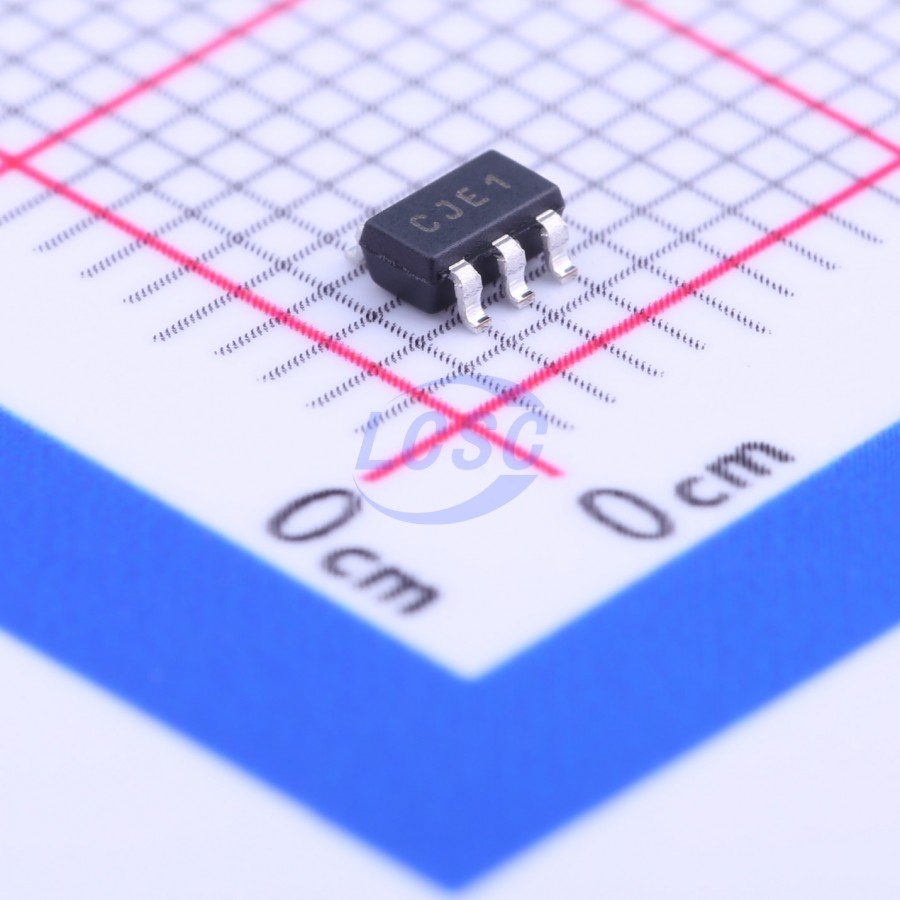

MCP6291T-E/OT

25mA 1 3mV 7V/us 85dB 1pA 1mA 10MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS3 CompliantActive

1.0 mA, 10 MHz Rail-to-Rail Op Amp

Manufacturer: MICROCHIP
Manufacturer part #: MCP6291T-E/OT
Store part #: C145575
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

16,818 in stock

#C145575

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹108.54	₹108.54
10+	₹85.92	₹859.20
30+	₹74.39	₹2,231.70
100+	₹63.08	₹6,308.00
500+	₹56.33	₹28,165.00
1,000+	₹52.85	₹52,850.00

Quantity (min 1)

1 × ₹108.54

₹108.54

excl. GST

₹128.08 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

MCP6291T-E/OT

₹108.54 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 25mA
Number of Channels: 1
Vos - Input Offset Voltage: 3mV
Slew Rate: 7V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 85dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 1.7uV/℃
Quiescent Current: 1mA
Gain Bandwidth Product: 10MHz
Input Voltage Noise Density: 8.7nV/√Hz@10kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.4V~6V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.043 g

Overview

The MCP6291/1R/2/3/4/5 family of operational amplifiers (op amps) provide wide bandwidth for the current. This family has a 10 MHz Gain Bandwidth Product (GBWP) and a 65° phase margin. This family also operates from a single supply voltage as low as 2.4V while drawing 1 mA (typical) quiescent current. In addition, the MCP6291/1R/2/3/4/5 supports rail-to-rail input and output swing, with a common mode input voltage range of VDD + 300 mV to VSS - 300 mV. This family of operational amplifiers is designed with advanced CMOS process. The MCP6295 has a Chip Select (CS) input for dual op amps in an 8-pin package. This device is manufactured by cascading the two op amps, with the output of op amp A being connected to the non-inverting input of op amp B. The CS input puts the device in a Low-power mode. The MCP6291/1R/2/3/4/5 family operates over the Extended Temperature Range of -40°C to +125°C. It also has a power supply range of 2.4V to 6.0V.

Applications

Automotive
Portable Equipment
Photodiode Amplifier
Analog Filters
Notebooks and PDAs
Battery-Powered Systems

Key features

Gain Bandwidth Product: 10 MHz (typical)
Supply Current: IQ = 1.0 mA
Supply Voltage: 2.4V to 6.0V
Rail-to-Rail Input/Output
Extended Temperature Range: -40°C to +125°C
Available in Single, Dual and Quad Packages
Single with CS (MCP6293)
Dual with CS (MCP6295)
