MICROCHIPDatasheet (PDF)

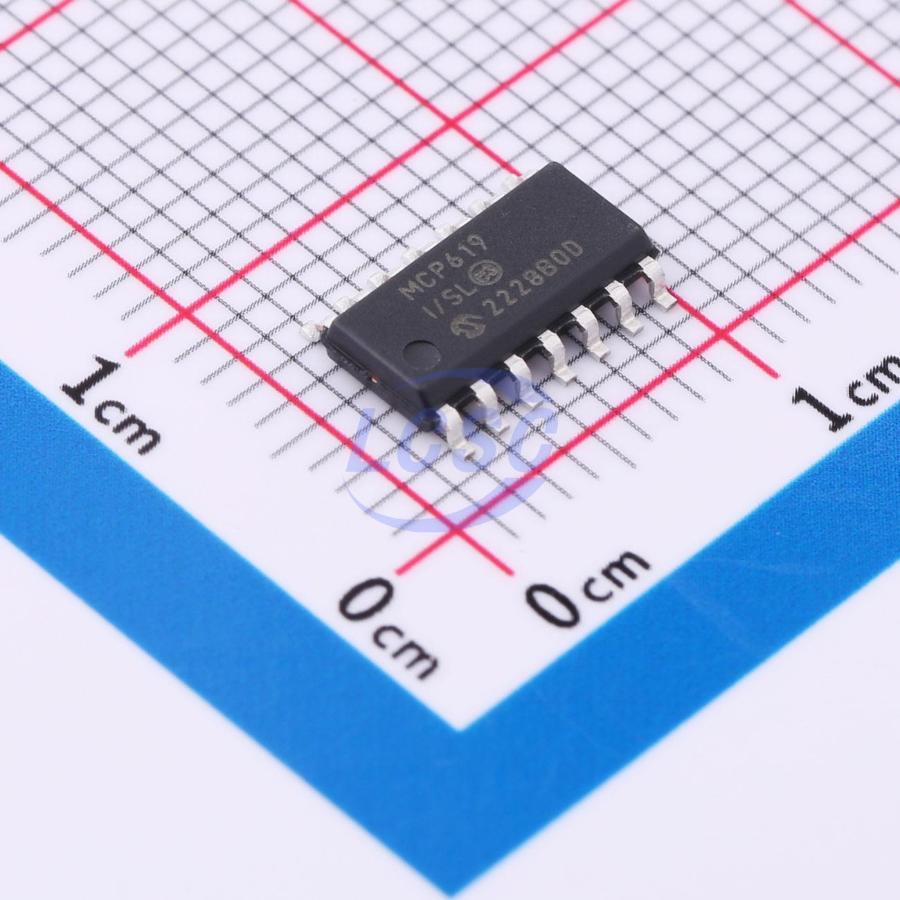

MCP619-I/SL
17mA 4 150uV 0.08V/us 15nA 100dB 190kHz 19uA Rail-to-rail output SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-14ROHS3 CompliantActive
Micropower Bi-CMOS Op Amps
- Manufacturer
- MICROCHIP
- Manufacturer part #
- MCP619-I/SL
- Store part #
- C640908
- Package / case
- SOIC-14
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18 in stock
#C640908
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹489.03 | ₹489.03 |
| 10+ | ₹478.16 | ₹4,781.60 |
| 30+ | ₹470.99 | ₹14,129.70 |
| 100+ | ₹463.82 | ₹46,382.00 |
1 × ₹489.03
₹489.03
excl. GST
₹577.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 57 per tube
MCP619-I/SL
₹489.03 for 1 + GST
Specifications
- Output Current
- 17mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 150uV
- Slew Rate
- 0.08V/us
- Input Offset Current(Ios)
- 150pA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 15nA
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Input Offset Voltage Drift(Vos TC)
- 2.5uV/℃
- Gain Bandwidth Product
- 190kHz
- Quiescent Current
- 19uA
- Features
- Built-in compensation;Reverse-phase input protection
- Input Voltage Noise Density
- 32nV/√Hz@1kHz
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 2.3V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 57 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.7 g
Overview
The MCP616/7/8/9 family of operational amplifiers (op amps) are capable of precision, low-power, single-supply operation. These op amps are unity-gain stable, have low input offset voltage (±150 μV, maximum), rail-to-rail output swing and low input offset current (0.3 nA, typical). These features make this family of op amps well suited for battery-powered applications. The single MCP616, the single MCP618 with Chip Select (CS) and the dual MCP617 are all available in standard 8-lead PDIP, SOIC and MSOP packages. The quad MCP619 is offered in standard 14-lead PDIP, SOIC and TSSOP packages. All devices are fully specified from -40°C to +85°C, with power supplies from 2.3V to 5.5V.
Applications
- Battery Power Instruments
- Weight Scales
- Strain Gauges
- Medical Instruments
- Test Equipment
Key features
- Low Input Offset Voltage: ±150 μV (maximum)
- Low Noise: 2.2 μVₚ₋ₚ (typical, 0.1 Hz to 10 Hz)
- Rail-to-Rail Output
- Low Input Offset Current: 0.3 nA (typical)
- Low Quiescent Current: 25 μA (maximum)
- Power Supply Voltage: 2.3V to 5.5V
- Unity Gain Stable
- Chip Select (CS) Capability: MCP618
- Industrial Temperature Range: -40°C to +85°C
- No Phase Reversal
- Available in Single, Dual and Quad Packages
