MICROCHIPDatasheet (PDF)

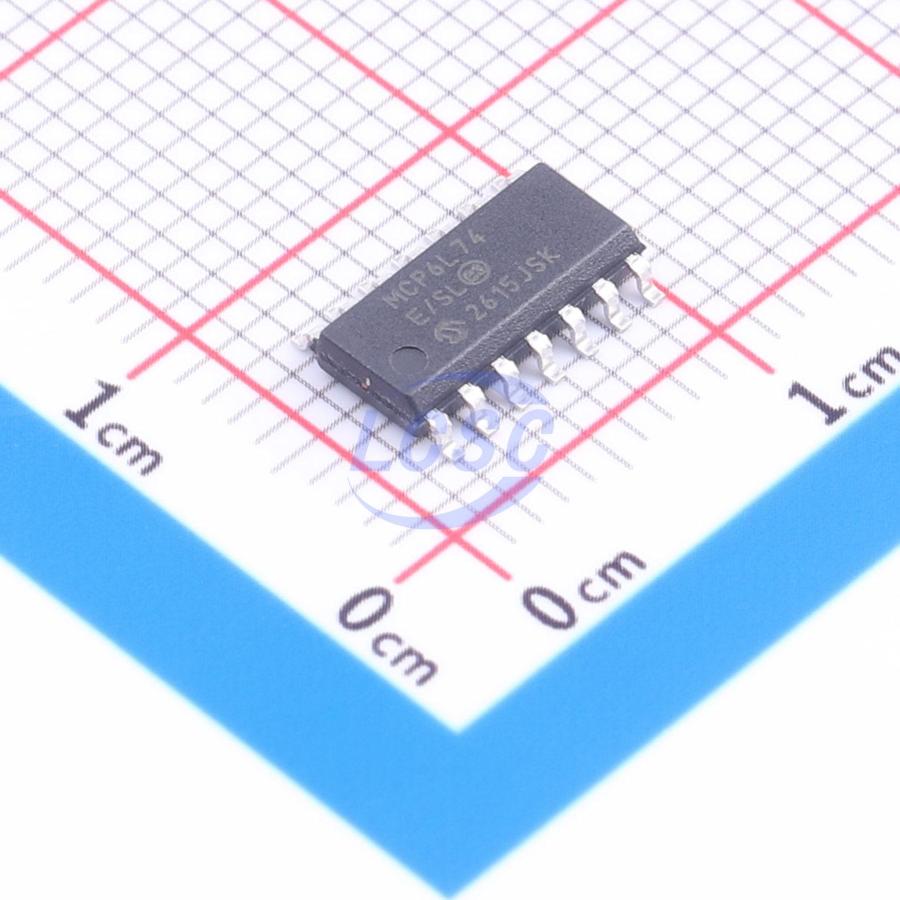

MCP6L74T-E/SL
25mA 4 1mV 900V/ms 91dB 1pA 150uA Rail-to-Rail Input, Rail-to-Rail Output SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-14ROHS3 CompliantActive
2 MHz, 150 μA Op Amps
- Manufacturer
- MICROCHIP
- Manufacturer part #
- MCP6L74T-E/SL
- Store part #
- C626834
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C626834
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹287.06 | ₹287.06 |
| 10+ | ₹280.34 | ₹2,803.40 |
| 30+ | ₹275.79 | ₹8,273.70 |
| 100+ | ₹271.45 | ₹27,145.00 |
1 × ₹287.06
₹287.06
excl. GST
₹338.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,600 per reel
MCP6L74T-E/SL
₹287.06 for 1 + GST
Specifications
- Output Current
- 25mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 1mV
- Slew Rate
- 900V/ms
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 91dB
- Ib - Input Bias Current
- 1pA
- Input Offset Voltage Drift(Vos TC)
- 1.3uV/℃
- Quiescent Current
- 150uA
- Input Voltage Noise Density
- 19nV/√Hz@10kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2V~6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,600 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.044 g
Overview
The MCP6L71/1R/2/4 family of operational amplifiers (op amps) supports general purpose applications. The combination of rail-to-rail input and output, low quiescent current and bandwidth fit into many applications. This family has a 2 MHz Gain Bandwidth Product (GBWP) and a low 150 µA per amplifier quiescent current. These op amps operate on supply voltages between 2.0V and 6.0V, with rail-to-rail input and output swing. They are available in the extended temperature range.
Applications
- Portable Equipment
- Photodiode Amplifier
- Analog Filters
- Notebooks and PDAs
- Battery-Powered Systems
Key features
- Gain Bandwidth Product: 2 MHz (typical)
- Supply Current: IQ = 150 µA (typical)
- Supply Voltage: 2.0V to 6.0V
- Rail-to-Rail Input/Output
- Extended Temperature Range: -40°C to +125°C
- Available in Single, Dual and Quad Packages
