MICROCHIPDatasheet (PDF)

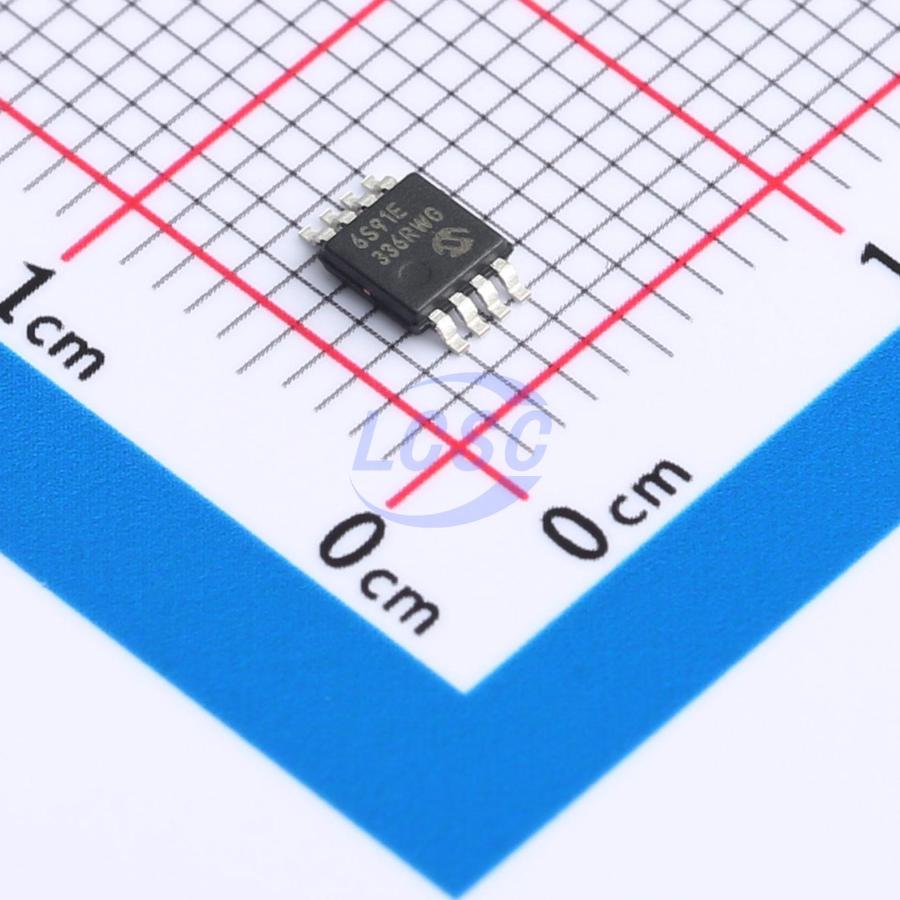

MCP6S91T-E/MS
25mA 1 4mV 22V/us PGA 1pA 1mA 1V/V~32V/V MSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
MSOP-8ROHS3 CompliantActive
Single-Ended, Rail-to-Rail I/O, Low-Gain PGA
- Manufacturer
- MICROCHIP
- Manufacturer part #
- MCP6S91T-E/MS
- Store part #
- C627647
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11 in stock
#C627647
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹184.35 | ₹184.35 |
| 10+ | ₹180.06 | ₹1,800.60 |
| 30+ | ₹177.27 | ₹5,318.10 |
| 100+ | ₹174.27 | ₹17,427.00 |
1 × ₹184.35
₹184.35
excl. GST
₹217.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MCP6S91T-E/MS
₹184.35 for 1 + GST
Specifications
- output type
- Single-Ended
- Output Current
- 25mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 4mV
- Current - Supply
- 1mA
- Slew Rate
- 22V/us
- Amplifier Type
- PGA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Input Offset Voltage Drift(Vos TC)
- 1.8uV/℃
- -3dB Bandwidth
- 18MHz
- Quiescent Current
- 1mA
- Gain
- 1V/V~32V/V
- Features
- Digital interface gain;Enable/shutdown function
- Rail to Rail
- Rail-to-rail input;Rail-to-rail output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.072 g
Overview
Analog Programmable Gain Amplifiers (PGAs) can be configured for gains from +1 to +32 V/V. The input multiplexer can select one of up to two channels through a SPI port. The serial interface can also put the PGA into shutdown to conserve power. These PGAs are optimized for high-speed, low offset voltage and single-supply operation with rail-to-rail input and output capability. These specifications support single-supply applications needing flexible performance or multiple inputs. The one-channel MCP6S91 and the two-channel MCP6S92 are available in 8-pin PDIP, SOIC and MSOP packages. The two-channel MCP6S93 is available in a 10-pin MSOP package. All parts are fully specified from -40°C to +125°C.
Applications
- A/D Converter Driver
- Multiplexed Analog Applications
- Data Acquisition
- Industrial Instrumentation
- Test Equipment
- Medical Instrumentation
Key features
- Multiplexed Inputs: 1 or 2 channels
- 8 Gain Selections: +1, +2, +4, +5, +8, +10, +16 or +32 V/V
- Serial Peripheral Interface (SPI)
- Rail-to-Rail Input and Output
- Low Gain Error: ±1% (max.)
- Offset Mismatch Between Channels: 0 μV
- High Bandwidth: 1 to 18 MHz (typ.)
- Low Noise: 10 nV/√Hz @ 10 kHz (typ.)
- Low Supply Current: 1.0 mA (typ.)
- Single Supply: 2.5V to 5.5V
- Extended Temperature Range: -40°C to +125°C
