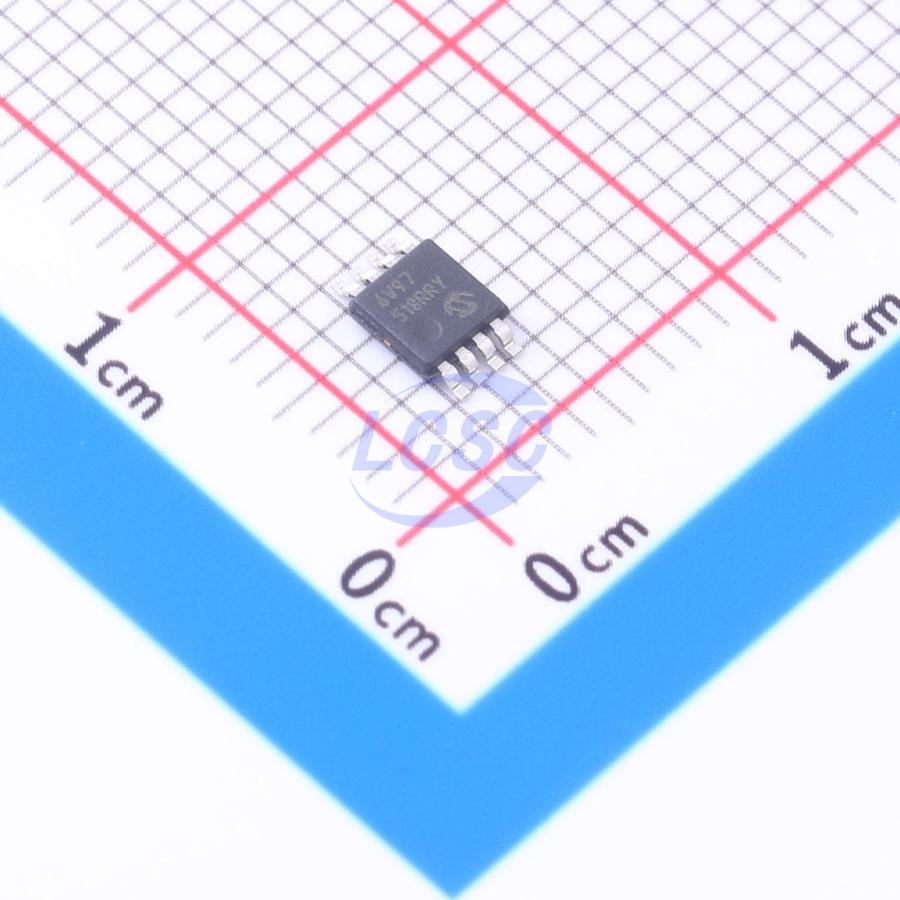

MCP6V97T-E/MS

The MCP6V96/6U/7/9 family of operational amplifiers provides input offset voltage correction for very low offset and offset drift. These devices have a gain bandwidth product of 10 MHz (typical). They are unity-gain stable, have virtually no 1/f noise and have good Power Supply Rejection Ratio (PSRR) and Common-Mode Rejection Ratio (CMRR). These products operate with a single supply voltage as low as 2.4V, while drawing 1.1 mA/amplifier (typical) of quiescent current. The MCP6V96/6U/7/9 family has enhanced EMI protection to minimize any electromagnetic interference from external sources. This feature makes it well-suited for EMI-sensitive applications such as power lines, radio stations and mobile communications, etc. The MCP6V96/6U/7/9 op amps are offered in single (MCP6V96 and MCP6V96U), dual (MCP6V97) and quad (MCP6V99) packages. They were designed using an advanced CMOS process.

Applications

• Portable Instrumentation
• Sensor Conditioning
• Temperature Measurement
• DC Offset Correction
• Medical Instrumentation

Key features

• High DC Precision:
• V₀ₛ Drift: ±150 nV/°C (maximum)
• V₀ₛ: ±25 μV (maximum)
• Aₒₗ: 111 dB (minimum, VDD = 5.5V)
• PSRR: 110 dB (minimum, VDD = 5.5V)
• CMRR: 112 dB (minimum, VDD = 5.5V)
• Eₙᵢ: 0.24 μVₚ₋ₚ (typical), f = 0.1 Hz to 10 Hz
• Eₙᵢ: 0.08 μVₚ₋ₚ (typical), f = 0.01 Hz to 1 Hz
• Enhanced EMI Protection:
• Electromagnetic Interference Rejection Ratio (EMIRR) at 1.8 GHz: 93 dB
• Low Power and Supply Voltages:
• IQ: 1.1 mA/amplifier (typical)
• Wide supply voltage range: 2.4V to 5.5V
• Small Packages:
• Singles in SC70, SOT - 23
• Duals in MSOP - 8, 2 x 3 TDFN
• Quads in TSSOP - 14
• Easy to Use:
• Rail - to - rail input/output
• Gain bandwidth product: 10 MHz (typical)
• Unity gain stable
• Extended Temperature Range: -40°C to +125°C
