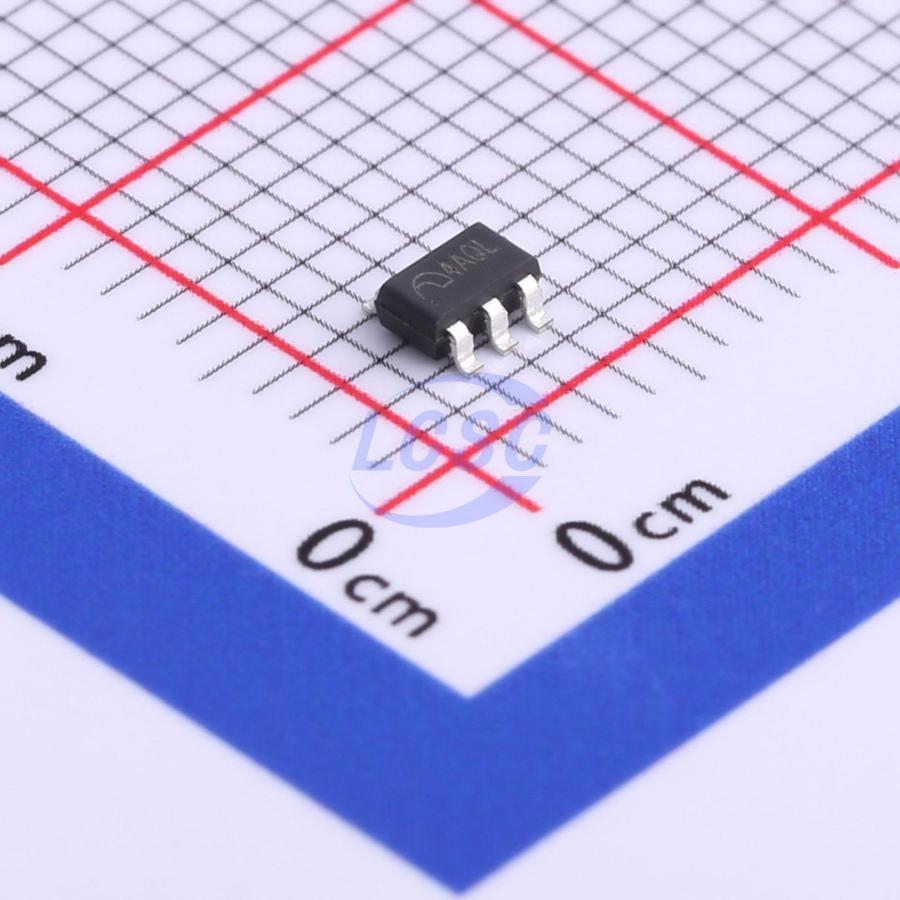

MICRONE

ME2135A50M6G

650kHz boost converter 300mA 4.85V~5.15V SOT-23-6 Voltage Regulators - DC DC Switching Regulators

SOT-23-6RoHSActive

Low-noise charge pump step-up DC-DC converter

Manufacturer: MICRONE
Manufacturer part #: ME2135A50M6G
Store part #: C610263
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

33,325 in stock

#C610263

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹11.51	₹57.55
50+	₹9.12	₹456.00
150+	₹7.92	₹1,188.00
500+	₹7.03	₹3,515.00
3,000+	₹5.65	₹16,950.00
6,000+	₹5.29	₹31,740.00

Quantity (min 5, multiples of 5)

5 × ₹11.51

₹57.55

excl. GST

₹67.91 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

ME2135A50M6G

₹57.55 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Frequency - Switching: 650kHz
Function: boost converter
Features: Soft-start;Low ripple / low noise architecture;Output short-circuit protection;Low-power standby
Operating Voltage: 2.7V~5.5V
Output Current: 300mA
Output Voltage: 4.85V~5.15V
Quiescent Current: 800uA
Energy Efficiency: 81%

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.029 g

Overview

ME2135 is a low-noise charge pump boost DC-DC converter with an input voltage range of 1.8V - 5.5V, operating at a constant frequency of 650KHz, capable of driving load currents up to 250mA. No external inductor is required for boost operation. Minimal external components (one FLY capacitor and two bypass capacitors for VIN and VOUT), combined with a compact package, deliver high integration, low noise, low EMI, and low ripple characteristics, making it suitable for small battery-powered applications. Internal features include thermal shutdown protection, output short-circuit protection, and a soft-start circuit to minimize inrush current at startup. Shutdown current is low, at less than 0.1uA.

Applications

White LED driver
Li-battery powered applications
3V to 5V conversion applications
2AA battery to 3.3V conversion applications
Smart card reader

Key features

Output voltage accuracy ±3%
Input voltage range 1.8V - 5.5V (VO = 3.3V); 2.7V - 5.5V (VO = 5.0V)
Output current up to 250mA (VIN = 3.0V, VO = 3.3V); 300mA (VIN = 3.6V, VO = 5.0V)
Operating frequency 650KHz
Shutdown current < 0.1uA
Inductor-free application
Short-circuit protection
Soft-start
