MICRONEDatasheet (PDF)

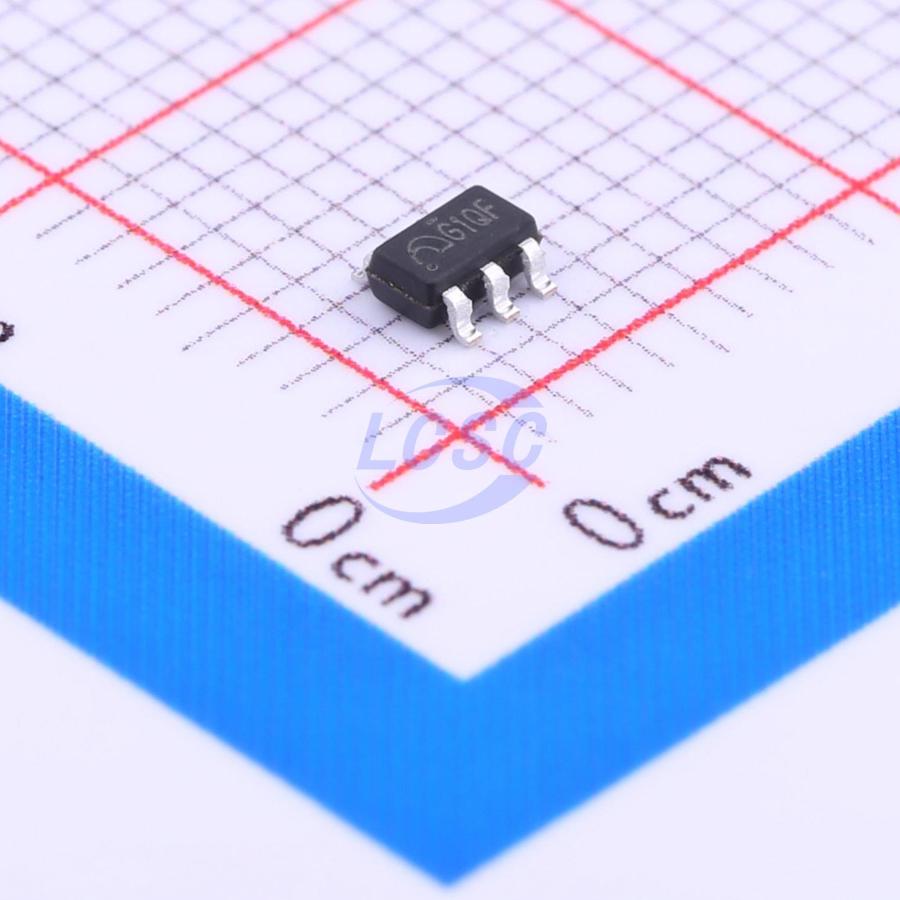

ME2159AM6G
650kHz Boost Adjustable 600mV~12V 2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
1A Step-Up Current Mode PWM Converter
- Manufacturer
- MICRONE
- Manufacturer part #
- ME2159AM6G
- Store part #
- C84114
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,605 in stock
#C84114
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.17 | ₹155.85 |
| 50+ | ₹25.04 | ₹1,252.00 |
| 150+ | ₹22.42 | ₹3,363.00 |
| 500+ | ₹19.14 | ₹9,570.00 |
| 3,000+ | ₹16.47 | ₹49,410.00 |
| 6,000+ | ₹15.60 | ₹93,600.00 |
5 × ₹31.17
₹155.85
excl. GST
₹183.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME2159AM6G
₹155.85 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 650kHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Overcurrent Protection;Load disconnect
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.5V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~12V
- Output Current
- 2A
- Quiescent Current
- 280uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.055 g
Overview
The ME2159 is a current mode boost DC-DC converter. Its PWM circuitry with built-in 0.18Ω power MOSFET make this regulator highly power efficient. The internal compensation network also minimizes as much as 6 external component counts. The non-inverting input of error amplifier connects to a 0.6V precision reference voltage and internal soft-start function can reduce the inrush current.
Applications
- Chargers
- LCD Displays
- Digital Cameras
- Handheld Devices
- Portable Products
Key features
- Precision Feedback Reference Voltage: 0.6V
- Reference Voltage accuracy: ±2%
- Adjustable Output up to 12V
- Internal Fixed PWM frequency: 650KHz
- Internal 0.18Ω, 2A, 16V Power MOSFET
- Shutdown Current: 0.1μA
- Over Temperature Protection: 165℃
- Package: SOT23-6
