MICRONEDatasheet (PDF)

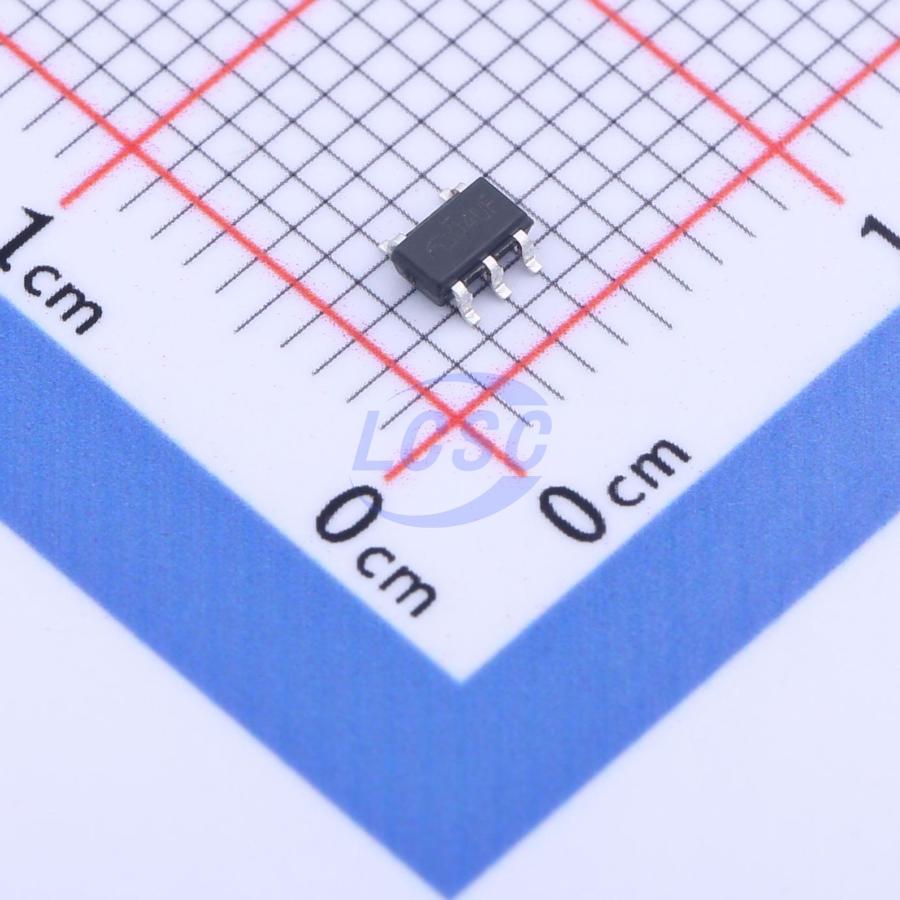

ME3104AM5G-N
1.5MHz Step-down type Adjustable 2A SOT-23-5 Voltage Regulators - DC DC Switching Regulators
SOT-23-5RoHSActive
5V, 2A Current Mode Synchronous Step-Down DC/DC Converter
- Manufacturer
- MICRONE
- Manufacturer part #
- ME3104AM5G-N
- Store part #
- C2925764
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,465 in stock
#C2925764
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.02 | ₹70.10 |
| 50+ | ₹11.21 | ₹560.50 |
| 150+ | ₹9.80 | ₹1,470.00 |
| 500+ | ₹8.75 | ₹4,375.00 |
| 3,000+ | ₹7.53 | ₹22,590.00 |
| 6,000+ | ₹7.10 | ₹42,600.00 |
5 × ₹14.02
₹70.10
excl. GST
₹82.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME3104AM5G-N
₹70.10 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+70℃@(TA)
- Frequency - Switching
- 1.5MHz
- Number of Outputs
- 1
- Function
- Step-down type
- Features
- Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.8V~6V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Quiescent Current
- 50uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.08 g
Overview
ME3104-N is a current mode synchronous step-down DC/DC converter with an input voltage range of 2.8V to 6V. And the output voltage is set externally. It works at PFM/PWM mode; it operates in nearly constant switching frequency 1.5MHz (TYP) over the heavy load and works in PFM mode that maintains high efficiency during light load operation. ME3104-N integrated a few protect circuits to make the system works in safety stations. It contains input Under-Voltage Lockout, over-current protection and short-circuit protection and over temperature protection.
Applications
- Bluetooth
- Cable Modem
- LCD TV Power Supply& Metering Platforms
- General Purpose Point-of-Load(POL)
- Mobile devices
Key features
- Output Current: 2A (TYP)
- Efficiency: 94% (Iout = 500mA, Vout = 3.3V)
- Input Voltage: 2.8V - 6V
- Feedback Voltage: 0.6V (±2.0%)
- Frequency: 1.5MHz (TYP) in PWM Mode
- PFM/PWM Control Mode
- Low Dropout Operation: 100% Duty Cycle
- Input Voltage UVLO
- Internal Soft-Start Function
- Overcurrent Protection and Short-Circuit Protection
- Overtemperature Protection
