MICRONEDatasheet (PDF)

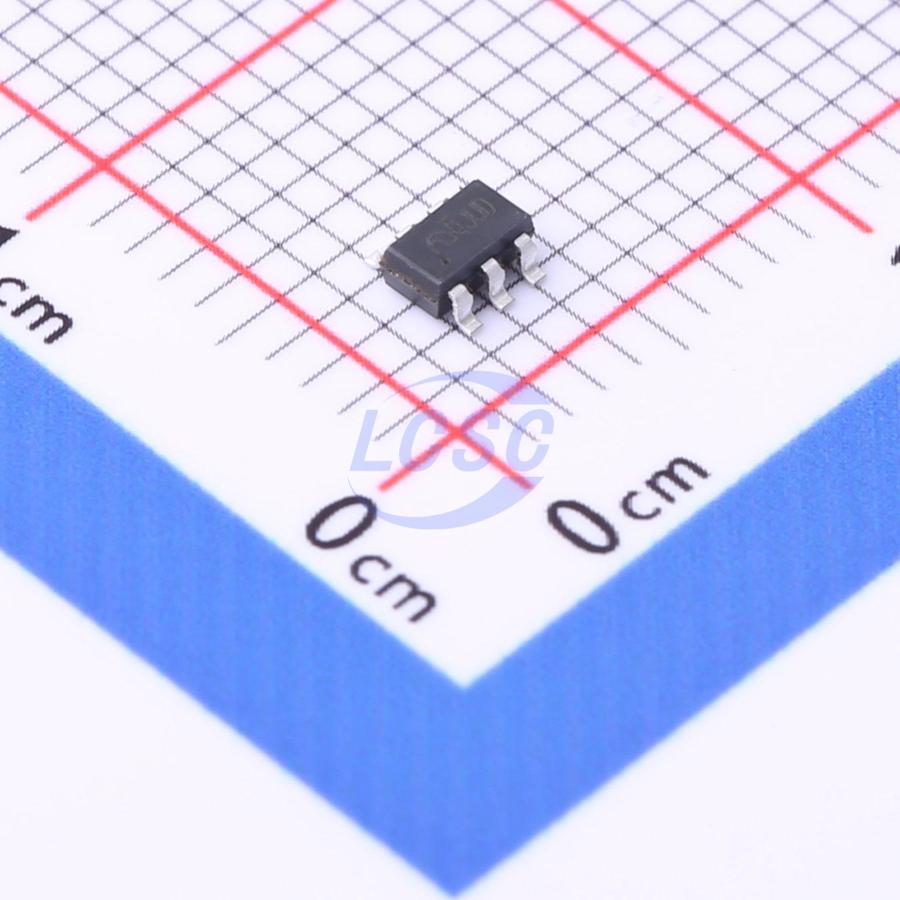

ME3110AM6G
Buck Switching Regulator IC Adjustable 1 Output 2A SOT-23-6
SOT-23-6RoHSActive
Efficient 500 kHz, 18V Input, 2 A Load, Synchronous Rectification Buck DC-DC Converter
- Manufacturer
- MICRONE
- Manufacturer part #
- ME3110AM6G
- Store part #
- C526187
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
21,150 in stock
#C526187
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.41 | ₹87.05 |
| 50+ | ₹13.65 | ₹682.50 |
| 150+ | ₹11.77 | ₹1,765.50 |
| 500+ | ₹10.37 | ₹5,185.00 |
| 3,000+ | ₹9.25 | ₹27,750.00 |
| 6,000+ | ₹8.68 | ₹52,080.00 |
5 × ₹17.41
₹87.05
excl. GST
₹102.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME3110AM6G
₹87.05 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Function
- Step-down type
- Frequency - Switching
- 500kHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.4V~18V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Quiescent Current
- 120uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.05 g
Overview
The ME3110 is a high-efficiency synchronous rectification buck DC-DC converter IC with an input voltage up to 18V. It integrates two low on-resistance NMOSFET power switches — 70mΩ for the low-side switch and 140mΩ for the high-side switch — supporting up to 2A load current. The IC operates in PFM mode under light load and in quasi-PWM continuous current mode under heavy load, with a switching frequency of 500kHz. It employs an adaptive constant on-time control architecture for fast load transient response. Built-in protection features including over-temperature protection, input UVLO, cycle-by-cycle current limiting, and output short-circuit protection enhance overall reliability.
Applications
- Set-top box
- LCD TV
- DSL modem
- Digital TV
Key features
- Input voltage range: 4.4V ~ 18V
- Shutdown current: 10uA
- Quiescent current: 120uA
- On-resistance: low-side 70mΩ, high-side 140mΩ
- Switching frequency: 500kHz
- Reference voltage: 0.6V ±2%
- Cycle-by-cycle current limiting: peak current limit 5.5A, valley current limit 3A
- Output short-circuit protection: hiccup mode
- Over-temperature protection: 160°C
