MICRONE

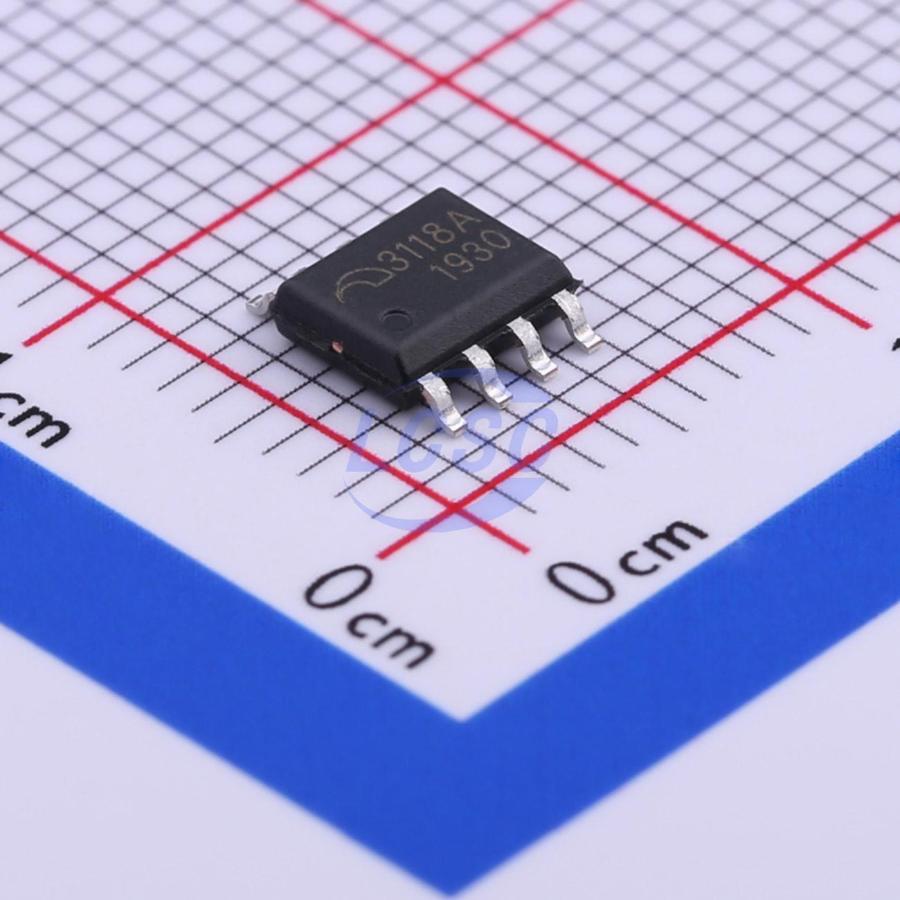

ME3118ASPG

Buck Switching Regulator IC Adjustable 1 Output 5A ESOP-8

ESOP-8RoHSActive

5A Output Synchronous Buck Regulator

Manufacturer: MICRONE
Manufacturer part #: ME3118ASPG
Store part #: C427570
Package / case: ESOP-8
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8,645 in stock

#C427570

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹51.37	₹256.85
50+	₹40.42	₹2,021.00
150+	₹35.73	₹5,359.50
500+	₹28.07	₹14,035.00
3,000+	₹25.47	₹76,410.00
6,000+	₹23.91	₹1,43,460.00

Quantity (min 5, multiples of 5)

5 × ₹51.37

₹256.85

excl. GST

₹303.08 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

ME3118ASPG

₹256.85 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Function: Step-down type
Frequency - Switching: 500kHz
Number of Outputs: 1
Features: Adjustable soft-start;Cycle-by-cycle current limiting;Overcurrent Protection;External compensation
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~18V
Switch tube (built-in/external): Built-in
Output Voltage: 800mV~15.3V
Output Current: 5A
Quiescent Current: 1.6mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.186 g

Overview

ME3118 is a simple, high-efficiency synchronous rectified buck regulator with a maximum output current of 5A. The input voltage range spans from 4.5V to 18V, supporting a maximum output current of 5A and output voltage as low as 0.8V. The device is available in an ESOP8 package with an exposed thermal pad, operating over a temperature range of -40°C to +85°C. ME3118 is a current-mode synchronous rectified buck regulator featuring a high-side PMOS and a low-side NMOS. Key functions include enable control, power shutdown, undervoltage protection, output overvoltage protection, thermal protection, and external soft-start.

Applications

DC/DC power supplies
LCD TVs
Notebook computers
DVD and Blu-ray players
Fiber optic modulators

Key features

4.5V to 18V operating voltage range
5A maximum continuous output current synchronous buck, 43mΩ integrated high-side switch and 40mΩ integrated low-side switch
Up to 95% efficiency (VIN = 10V)
External soft-start function
Adjustable output voltage, 0.8V minimum
500KHz PWM operating mode
Cycle-by-cycle current limiting protection
Short-circuit protection
