MICRONEDatasheet (PDF)

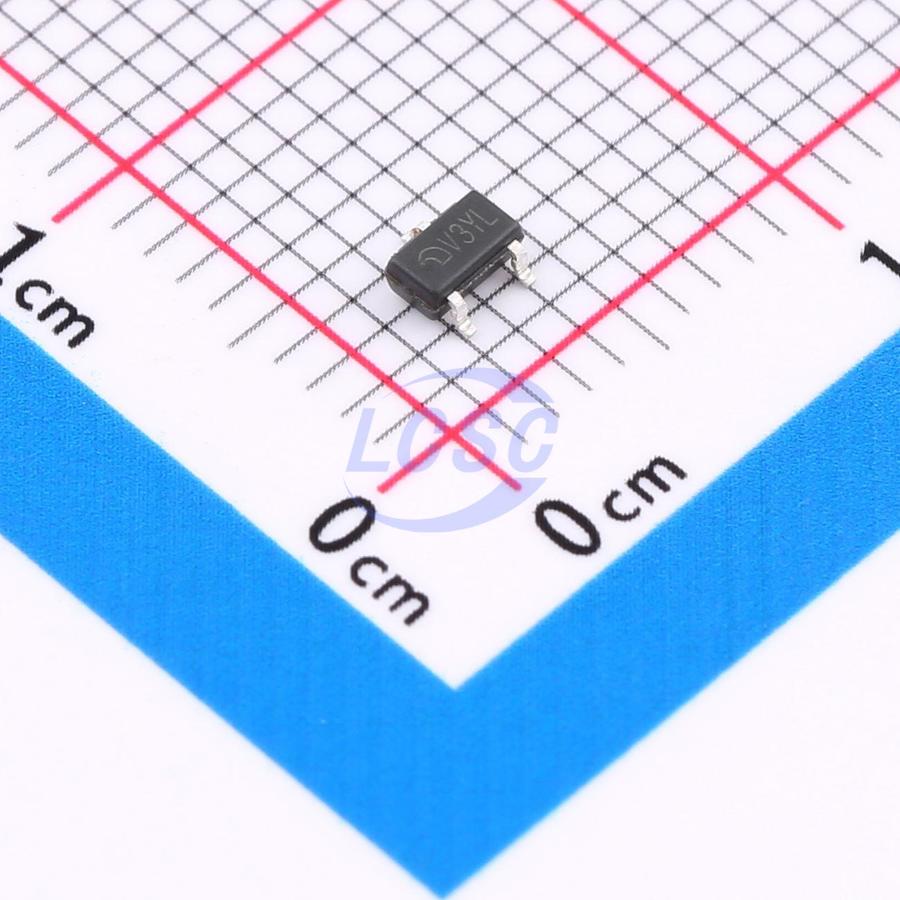

ME6209A50M3G
5V Positive Fixed SOT-23-3L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-3LRoHSActive
Low Power Consumption LDO
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6209A50M3G
- Store part #
- C90248
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
29,640 in stock
#C90248
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.81 | ₹88.10 |
| 100+ | ₹6.93 | ₹693.00 |
| 300+ | ₹5.99 | ₹1,797.00 |
| 3,000+ | ₹5.09 | ₹15,270.00 |
| 6,000+ | ₹4.52 | ₹27,120.00 |
| 9,000+ | ₹4.25 | ₹38,250.00 |
10 × ₹8.81
₹88.10
excl. GST
₹103.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6209A50M3G
₹88.10 for 10 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 18V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.053 g
Overview
The ME6209 series are a group of positive voltage output, three –pin regulator, that provide a high current even when the input/output Voltage differential is small. Low power consumption and high accuracy is achieved through CMOS technology. They allow input voltages as high as 18V.
Applications
- Cameras, video recorders
- Voltage regulator for microprocessor
- Voltage regulator for LAN cards
- Wireless communication equipment
- Audio/Video equipment
Key features
- Ultra low quiescent current: 3.0uA(typ)
- High input voltage (up to 18V)
- Low dropout voltage :80mV@Iout=40mA (V_OUT=3.3V)
- Output voltage accuracy: ±2%
- Maximum output current: 250mA （within max.power dissipation, V_OUT=3.3V）
- Low temperature coefficient Package：SOT23-3、TO-92、SOT89-3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME6231A50M3G#C2765180MICRONE · SOT23-3 | MICRONE | SOT23-3 | 15 | ₹11.47 · 15 in stock | View |
 | ME6210A50M3G#C236679MICRONE · SOT-23 | MICRONE | SOT-23 | 3,260 | ₹7.38 · 3,260 in stock | View |
 | ME6214A50M3G#C427597MICRONE · SOT-23 | MICRONE | SOT-23 | 1,380 | ₹10.82 · 1,380 in stock | View |
 | ME6239A50M3G#C2890990MICRONE · SOT-23-3 | MICRONE | SOT-23-3 | 40 | ₹9.88 · 40 in stock | View |
 | ME6249A50M3G#C2927386MICRONE · SOT23-3 | MICRONE | SOT23-3 | On request | ₹9.67 · 0 in stock | View |
