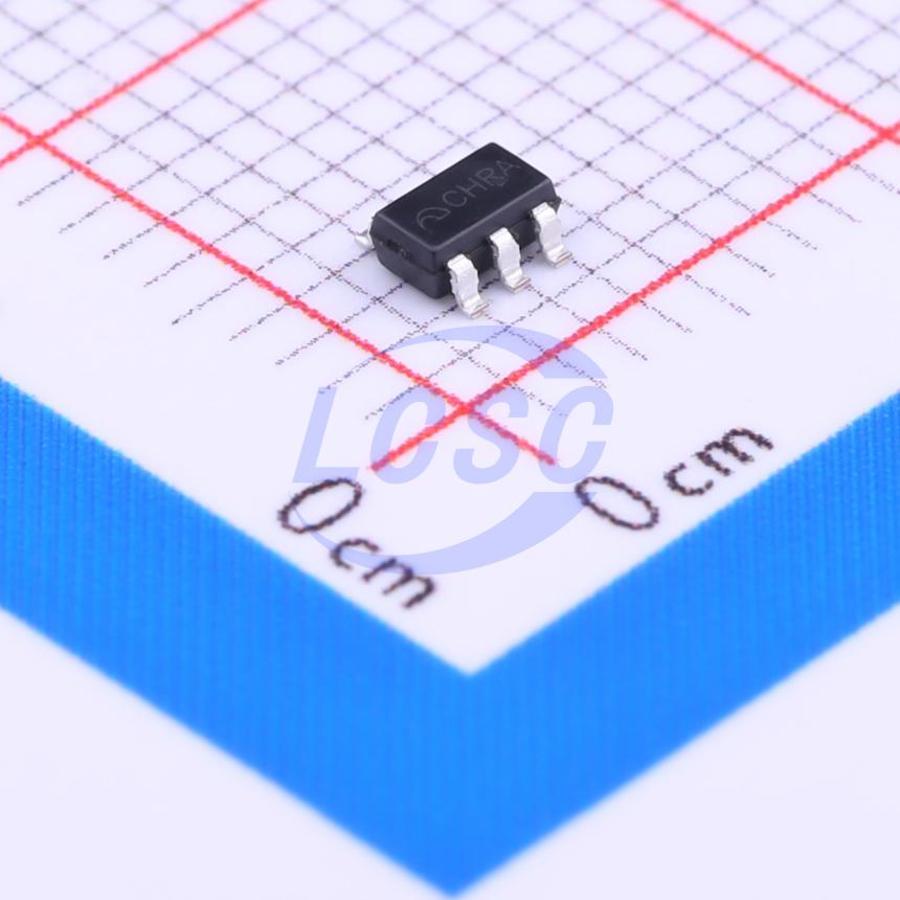

ME6212C33M5G
Linear Voltage Regulator IC Positive Fixed 1 Output 350mA SOT-23-5
SOT-23-5RoHSActive
High-precision, high ripple rejection ratio, low-noise, ultra-fast response linear voltage regulator
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6212C33M5G
- Store part #
- C81233
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
67,110 in stock
#C81233
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.07 | ₹60.70 |
| 100+ | ₹4.91 | ₹491.00 |
| 300+ | ₹4.33 | ₹1,299.00 |
| 3,000+ | ₹3.89 | ₹11,670.00 |
| 6,000+ | ₹3.53 | ₹21,180.00 |
| 9,000+ | ₹3.36 | ₹30,240.00 |
10 × ₹6.07
₹60.70
excl. GST
₹71.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6212C33M5G
₹60.70 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 350mA
- Features
- Enable control;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.02 g
Overview
The ME6212 series are high-accuracy, high-PSRR, low-noise, ultra-fast response LDO linear regulators fabricated using CMOS process technology. The ME6212 series integrates a fixed reference voltage source, error correction circuit, current limiting circuit, phase compensation circuit, and a low on-resistance MOSFET, achieving high ripple rejection, low output noise, and ultra-fast response low-dropout performance.
Applications
- Tablet
- Set-top box
- Bluetooth speaker
- Dash cam
- Automotive products
- Toys
Key features
- ME6212 series is compatible with ceramic capacitors smaller than tantalum capacitors, and does not require a 0.1μF bypass capacitor, saving more board space.
- The high-speed response characteristic of the ME6212 series handles load current fluctuations, making it especially suitable for handheld and RF products. The output can be shut down by controlling the CE pin on the chip, with shutdown current consumption below 1μA.
- Ultra-low power consumption: Active: 50μA (typ.), Standby: 0.1μA (typ.)
- Input voltage range: 2.0~6.0V
- Output voltage range: 1.2~5.0V (in 0.1V increments)
- Output accuracy: ±2%
- Input/output voltage differential: 120mV @ Iout = 100mA (3.3V)
- Output current: 350mA
- High ripple rejection ratio: 65dB @ 1KHz (ME6212C33)
- Low output noise: 50μVrms
- Good line regulation: 0.05% (TYP.)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME6511C33M5G#C2837689MICRONE · SOT-23-5L | MICRONE | SOT-23-5L | 2,910 | ₹4.25 · 2,910 in stock | View |
 | ME6211C33M5G-N#C82942MICRONE · SOT-23-5 | MICRONE | SOT-23-5 | 1,69,200 | ₹8.19 · 1,69,200 in stock | View |
 | ME6217C33M5G#C427602MICRONE · SOT-23-5 | MICRONE | SOT-23-5 | 82,595 | ₹14.13 · 82,595 in stock | View |
 | ME6231C33M5G#C610253MICRONE · SOT-23-5 | MICRONE | SOT-23-5 | 34,770 | ₹10.07 · 34,770 in stock | View |
 | ME6119C33M5G#C81100MICRONE · SOT-23-5 | MICRONE | SOT-23-5 | 34,010 | ₹13.23 · 34,010 in stock | View |
