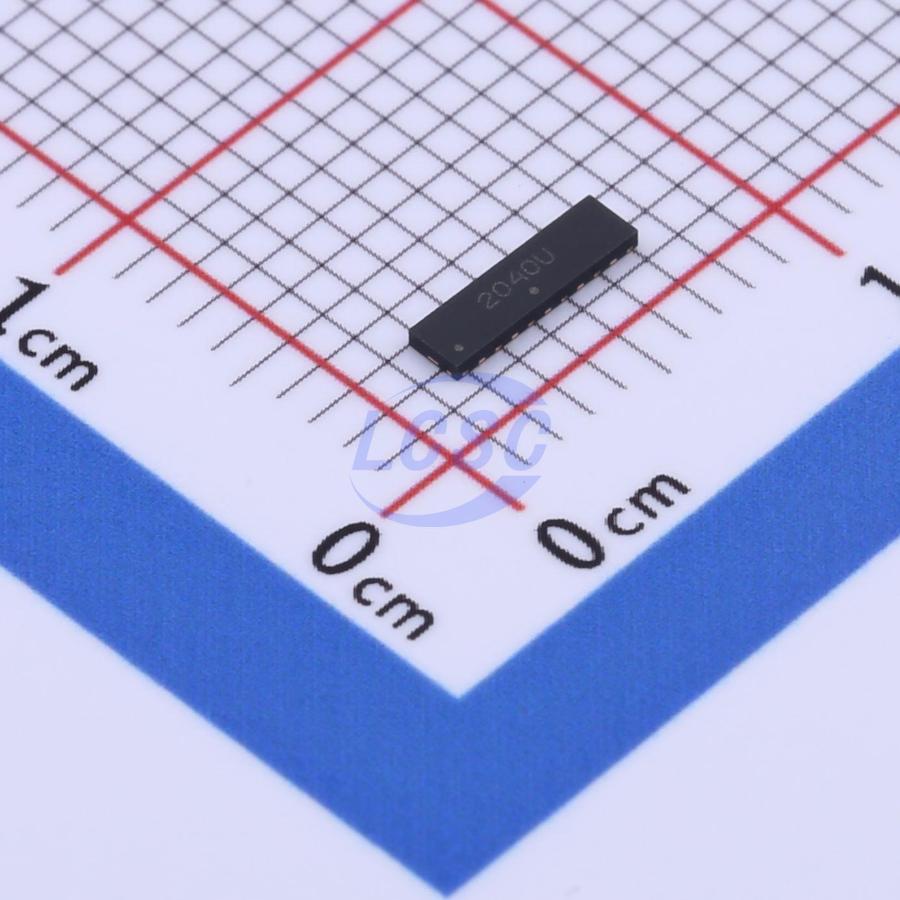

MG2040MUTAG
10VC Clamp ESD DIODE UDFN-18(1.5x5.5)
ESD DIODE 5VWM 10VC UDFN-18(1.5x5.5)
- Manufacturer
- onsemi
- Manufacturer part #
- MG2040MUTAG
- Store part #
- C891560
- Package / case
- UDFN-18(1.5x5.5)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
86 in stock
#C891560
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹135.32 | ₹135.32 |
| 10+ | ₹111.86 | ₹1,118.60 |
| 30+ | ₹99.05 | ₹2,971.50 |
| 100+ | ₹84.50 | ₹8,450.00 |
| 500+ | ₹77.98 | ₹38,990.00 |
| 1,000+ | ₹74.93 | ₹74,930.00 |
1 × ₹135.32
₹135.32
excl. GST
₹159.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MG2040MUTAG
₹135.32 for 1 + GST
Specifications
- Clamping Voltage
- 10V
- Operating Temperature
- -55℃~+125℃
- Voltage - Breakdown
- 5.5V
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.049 g
Overview
The MG2040 ESD protection diode is designed specifically to protect HDMI and Display Port with full functionality ESD protection and back drive current protection for VCC line. Ultra−low capacitance and low ESD clamping voltage make this device an ideal solution for protecting voltage sensitive high speed data lines. The flow−through style package allows for easy PCB layout and matched trace lengths necessary to maintain consistent impedance for the high speed TMDS lines.
Applications
- HDMI
- Display Port
Key features
- Full Function HDMI / Display Port Solution
- Single Connect, Flow through Routing for TMDS Lines
- Low Capacitance 0.35 pF Typical, I/O to GND)
- Protection for the Following IEC Standards: IEC 61000−4−2 Level 4 ±8 kV Contact)
- UL Flammability Rating of 94 V−0
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- This is a Pb−Free Device
