MSKSEMIDatasheet (PDF)

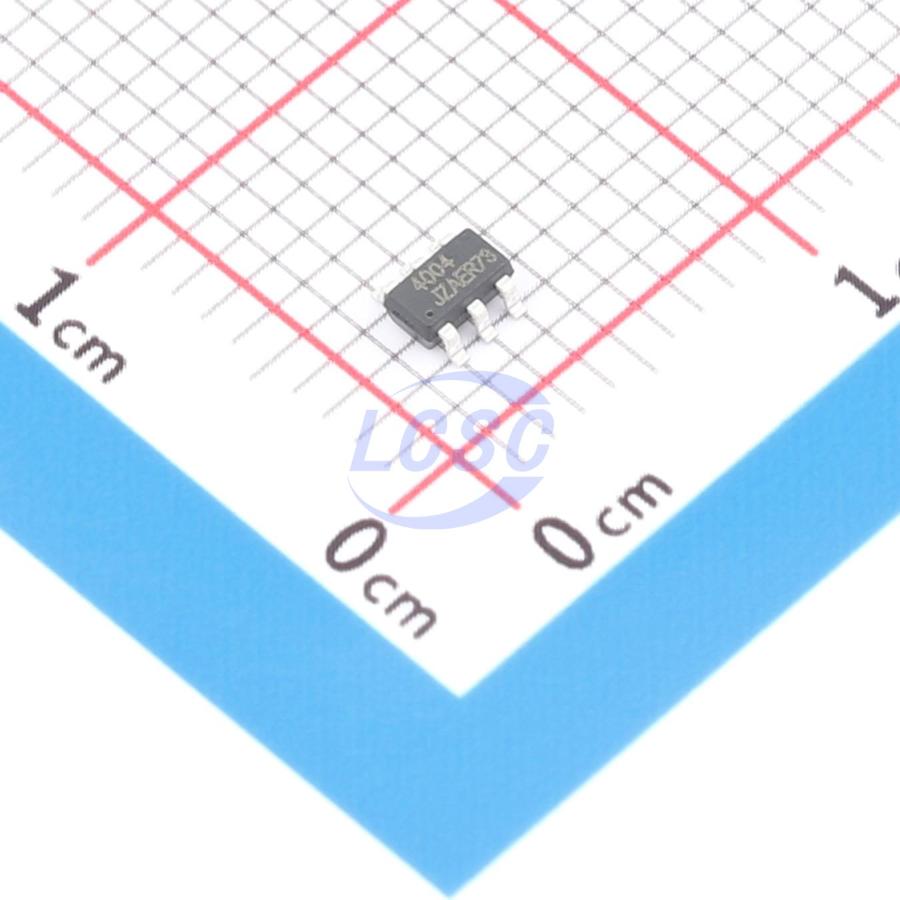

MHX4004-MS
boost converter 400kHz 300mA 5V SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MHX4004-MS
- Store part #
- C50385423
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
740 in stock
#C50385423
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.69 | ₹63.45 |
| 50+ | ₹10.08 | ₹504.00 |
| 150+ | ₹8.77 | ₹1,315.50 |
| 500+ | ₹7.79 | ₹3,895.00 |
| 3,000+ | ₹6.69 | ₹20,070.00 |
| 6,000+ | ₹6.30 | ₹37,800.00 |
5 × ₹12.69
₹63.45
excl. GST
₹74.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MHX4004-MS
₹63.45 for 5 + GST
Specifications
- Operating Temperature
- -25℃~+85℃
- Function
- boost converter
- Frequency - Switching
- 400kHz
- Features
- Overcurrent Protection;Output short-circuit protection;Soft-start;Low ripple / low noise architecture;Low-power standby
- Operating Voltage
- 2.7V~5V
- Output Current
- 300mA
- Output Voltage
- 5V
- Energy Efficiency
- 85%
- Quiescent Current
- 230uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.044 g
Overview
MHX4004-MS is a low-noise, 400KHz charge pump DC/DC converter that delivers a regulated 5V output over an input voltage range of 2.7V to 5V, with excellent line and load regulation. The device maintains a stable switching frequency with a maximum output current of 300mA. It supports both PFM and PWM modes to optimize quiescent current consumption, extending battery life in portable applications — particularly suited for lithium battery-powered designs. The optimized charge pump architecture features low output ripple and minimal interference to wireless devices such as FM receivers. The IC integrates over-temperature protection, over-current protection, and soft-start functionality, with a shutdown current of less than 1uA, available in a SOT-23-6 package.
Applications
- Smart Bluetooth speakers
- Lithium battery backup power
- Smart card readers
- LED backlight drivers
- 3V to 5V conversion
Key features
- Fixed 5V±2% output
- Input voltage range: 2.7V ~ 5V
- Output voltage range: 4.9V ~ 5.1V
- Output current up to 300mA (VIN=3.6V)
- Low quiescent current: 0.23mA (VIN=3.6V)
- Low-noise fixed frequency: 400KHz (VIN=3.6V)
- Shutdown current < 1uA
- Overtemperature and overcurrent protection
- Soft-start function
