MICROCHIPDatasheet (PDF)

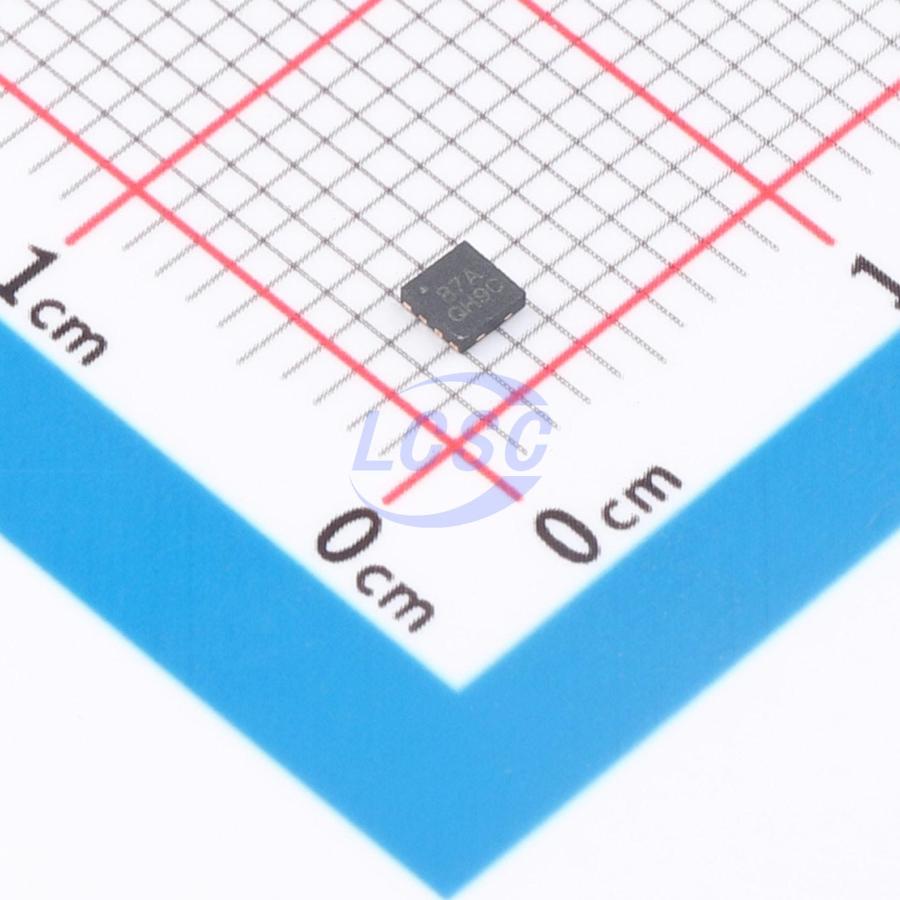

MIC2875-AYMT-TR
2MHz Boost Adjustable 3.8A TDFN-8L-EP(2x2) Voltage Regulators - DC DC Switching Regulators RoHS
TDFN-8L-EP(2x2)ROHS3 CompliantActive
- Manufacturer
- MICROCHIP
- Manufacturer part #
- MIC2875-AYMT-TR
- Store part #
- C621879
- Package / case
- TDFN-8L-EP(2x2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C621879
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹245.65 | ₹245.65 |
| 10+ | ₹208.36 | ₹2,083.60 |
| 30+ | ₹185.17 | ₹5,555.10 |
| 100+ | ₹161.31 | ₹16,131.00 |
| 500+ | ₹150.48 | ₹75,240.00 |
| 1,000+ | ₹145.93 | ₹1,45,930.00 |
1 × ₹245.65
₹245.65
excl. GST
₹289.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
MIC2875-AYMT-TR
₹245.65 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 2MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Load disconnect;Overcurrent Protection;Cycle-by-cycle current limiting;Light load efficient mode;Operating status indication
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.5V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3.8A
- Quiescent Current
- 1mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.047 g
Overview
The MIC2875 is a compact and highly-efficient 2MHz synchronous boost regulator with a 4.8A switch. It features a bi-directional load disconnect function which prevents any leakage current between the input and output when the device is disabled. The MIC2875 operates in bypass mode automatically when the input voltage is greater than the target output voltage. At light loads, the boost converter goes to the PFM mode to improve the efficiency. To minimize switching artifacts in the audio band, the MIC2875 is designed to operate with a minimum switching frequency of 45kHz. The MIC2875 also features an integrated anti-ringing switch to minimize EMI. The MIC2875 is available in a 8-lead 2mm × 2mm ultra-thin DFN (UDFN) package, with a junction temperature range of -40°C to +125°C.
Applications
- Tablet and Smartphones
- USB OTG and HDMI Hosts
- Portable Power Reserve Supplies
- Low-Noise Audio Applications
- Portable Equipment
Key features
- Up to 95% Efficiency
- Input Voltage Range: 2.5V to 5.5V
- Fully-Integrated, High-Efficiency, 2 MHz Synchronous Boost Regulator
- Bi-Directional True Load Disconnect
- Integrated Anti-Ringing Switch
- Minimum Switching Frequency of 45kHz
- <1 μA Shutdown Current
- Bypass Mode for VIN ≥ VOUT
- Overcurrent Protection and Thermal Shutdown
- Fixed and Adjustable Output Versions
- 8-lead 2mm×2mm UDFN Package
