MICROCHIPDatasheet (PDF)

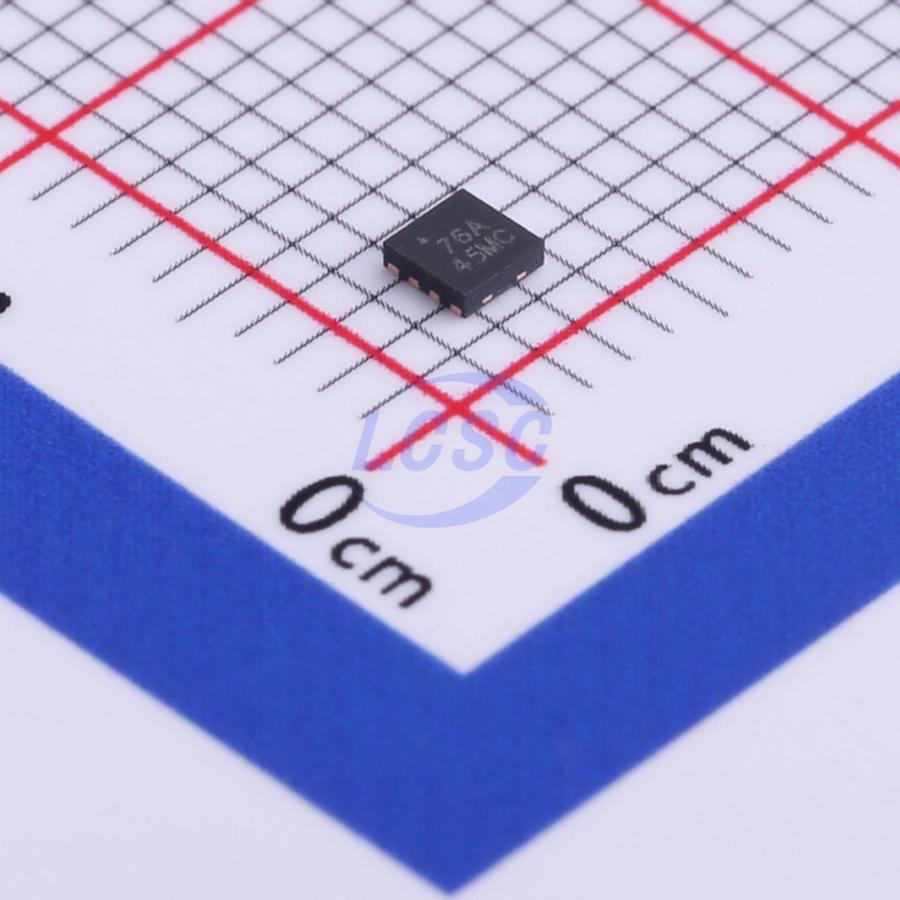

MIC2876-AYMT-TR
2MHz Boost Adjustable 3.2V~5.5V 4.8A UDFN-8-EP(2x2) Voltage Regulators - DC DC Switching Regulators RoHS
UDFN-8-EP(2x2)ROHS3 CompliantActive
High-Efficiency 2MHz Synchronous Boost Regulator
- Manufacturer
- MICROCHIP
- Manufacturer part #
- MIC2876-AYMT-TR
- Store part #
- C515514
- Package / case
- UDFN-8-EP(2x2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C515514
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹174.01 | ₹174.01 |
| 10+ | ₹143.14 | ₹1,431.40 |
| 30+ | ₹126.08 | ₹3,782.40 |
| 100+ | ₹105.14 | ₹10,514.00 |
| 500+ | ₹96.72 | ₹48,360.00 |
| 1,000+ | ₹92.83 | ₹92,830.00 |
1 × ₹174.01
₹174.01
excl. GST
₹205.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
MIC2876-AYMT-TR
₹174.01 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 2MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Load disconnect;Overcurrent Protection;Cycle-by-cycle current limiting;Light load efficient mode;Operating status indication
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.5V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 3.2V~5.5V
- Output Current
- 4.8A
- Quiescent Current
- 109uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.02 g
Overview
The MIC2876 is a compact and highly efficient 2 MHz synchronous boost regulator with a 4.8A switch. It features a bi-directional load disconnect function that prevents any leakage current between the input and output when the device is disabled. The MIC2876 operates in bypass mode automatically when the input voltage is greater than the target output voltage. At light loads, the boost converter goes to the PFM mode to improve the efficiency. The MIC2876 also features an integrated anti-ringing switch to minimize EMI. The MIC2876 is available in a 8-pin 2 mm × 2 mm UDFN package, with a junction temperature range of -40°C to +125°C.
Applications
- Tablets and Smartphones
- USB OTG and HDMI Hosts
- Portable Power Reserve Supplies
- High-Current Parallel Lithium Cell Applications
- Portable Equipment
Key features
- Up to 95% Efficiency
- Input Voltage Range from 2.5V to 5.5V
- Fully Integrated, High-Efficiency, 2 MHz Synchronous Boost Regulator
- Bi-Directional True Load Disconnect
- Integrated Anti-Ringing Switch
- < 1 μA Shutdown Current
- Bypass Mode for VIN ≥ VOUT
- Overcurrent Protection and Thermal Shutdown
- Fixed and Adjustable Output Versions
- 8-pin 2 mm × 2 mm UDFN package
