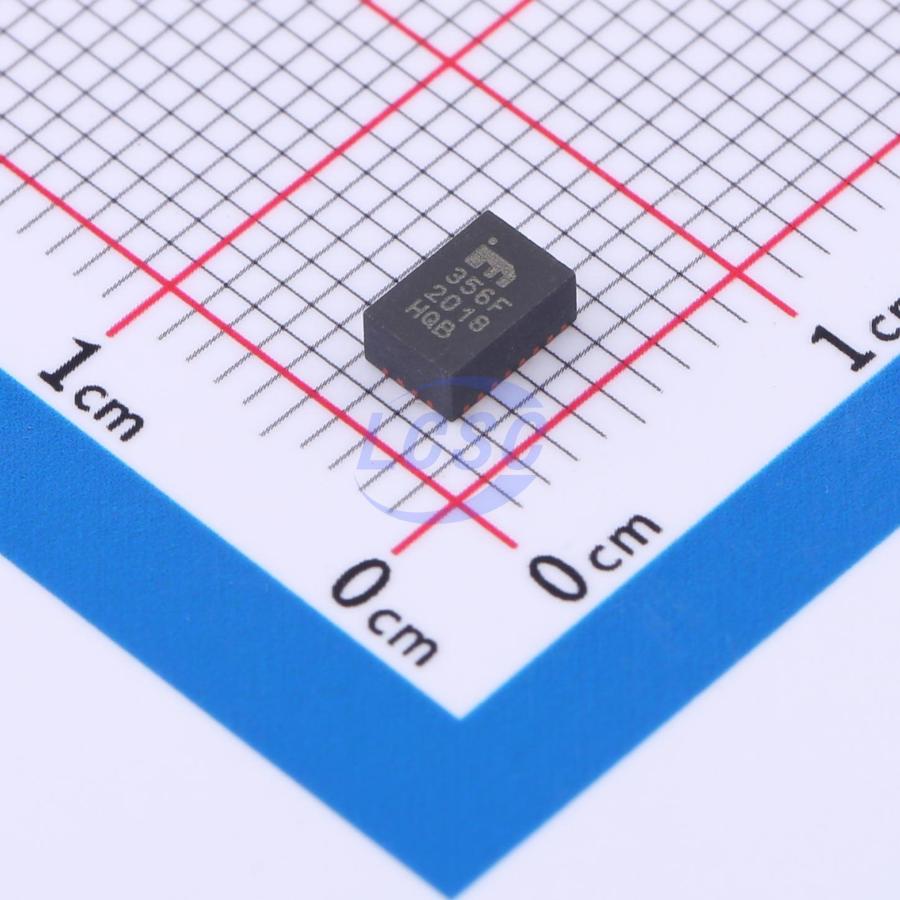

MIC33M356-FAYMP-TR

1.7MHz~2.2MHz Step-down type Adjustable 600mV~1.28V 3A QFN-24(3x4.5) Voltage Regulators - DC DC Switching Regulators RoHS

QFN-24(3x4.5)ROHS3 CompliantActive

3A Power Module Buck Converter

Manufacturer: MICROCHIP
Manufacturer part #: MIC33M356-FAYMP-TR
Store part #: C1870724
Package / case: QFN-24(3x4.5)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

Out of stock

#C1870724

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹638.25	₹638.25
10+	₹549.48	₹5,494.80
30+	₹496.57	₹14,897.10
100+	₹443.07	₹44,307.00
500+	₹418.46	₹2,09,230.00
1,000+	₹407.39	₹4,07,390.00

Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,100 per reel

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Frequency - Switching: 1.7MHz~2.2MHz
Function: Step-down type
Number of Outputs: 1
Features: Adjustable current limiting;Hiccup current limiting;Protection latch;Adjustable soft-start;Output discharge;Light load efficient mode;Operating status indication;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.4V~5.5V
Switch tube (built-in/external): Built-in
Output Voltage: 600mV~1.28V
Output Current: 3A
Quiescent Current: 60uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,100 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1.6 g

Overview

The MIC33M356 is a I²C programmable, high-efficiency, low-voltage input, 3A current, synchronous step-down regulator power module with integrated inductor. The Constant On-Time (COT) control architecture with HyperLight Load mode provides very high efficiency at light loads, while still having ultra-fast transient response. The I²C interface allows programming the output voltage between 0.6V and 1.28V, with 5 mV resolution or between 0.6V and 3.84V, with 10 mV and 20 mV resolution. Two different default voltage options (0.9V and 1.0V) are provided so that the application can be started with a safe voltage level and then moved to high-performance modes under I²C control. An open-drain Power Good output facilitates output voltage monitoring and sequencing. If set in shutdown (EN = GND), the MIC33M356 typically draws 1.5 μA of current, while the output is discharged through a 10Ω pull-down resistor (if the output discharge feature is enabled). The MIC33M356 pinout is compatible with the MIC33M350, so that applications can be easily converted. The 2.4V to 5.5V input voltage range, low shutdown and quiescent currents make the MIC33M356 ideal for single-cell Li-Ion battery-powered applications. The 100% duty cycle capability provides low dropout operation, extending operating range in portable systems. The MIC33M356 is available in a thermally-efficient, 24-lead, 3.0 mm × 4.5 mm × 1.8 mm QFN package, with an operating junction temperature range of -40°C to +125°C.

Applications

Solid-State Drives (SSD)
Tablets, Notebooks and Ultrabooks
FPGAs, DSP and Low-Voltage ASIC Power

Key features

Input Voltage Range: 2.4V to 5.5V
3A Output Current
Multiple Faults Indication through I²C
I²C Programmable:
Output voltage: 0.6V to 1.28V at 5 mV resolution or 0.6V to 3.84V, 10 and 20 mV resolution
Slew rate: 0.2 ms/V to 3.2 ms/V
On-time (switching frequency)
High-side current limit: 3.5A or 5A
Enable delay: 0.2 ms - 3 ms
Output discharge when disabled (EN = GND)
High Efficiency (up to 95%)
Ultra-Fast Transient Response
±1.5% Output Voltage Accuracy Over Line/Load/Temperature Range
Safe Start-up with Pre-Biased Output
Typical 1.5 μA Shutdown Supply Current
Low Dropout (100% Duty Cycle) Operation
I²C Speed Up to 3.4 MHz
Latch-Off Thermal Shutdown Protection
Latch-Off Current Limit Protection
Power Good (PG) Open-Drain Output
Meets the CISPR32 Class B Emissions
