MICROCHIP

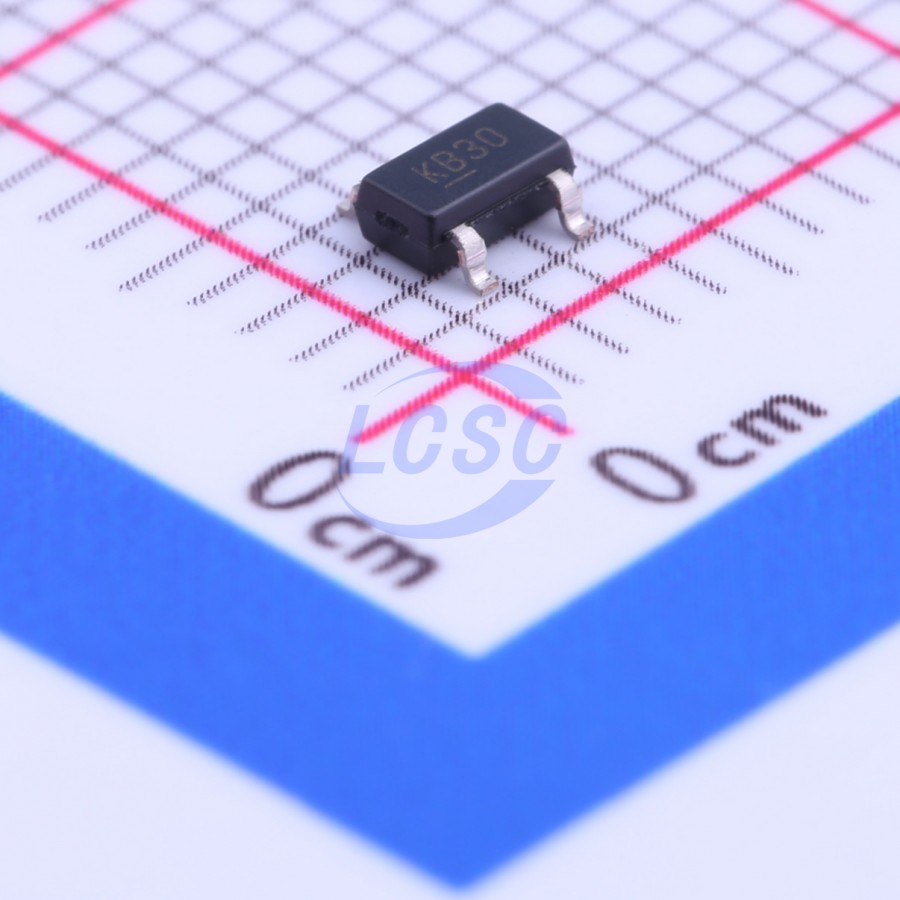

MIC5205-3.0YM5-TR

3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-23-5ROHS3 CompliantActive

150mA Low-Noise LDO Regulator

Manufacturer: MICROCHIP
Manufacturer part #: MIC5205-3.0YM5-TR
Store part #: C145631
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

188 in stock

#C145631

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹78.93	₹78.93
10+	₹62.67	₹626.70
30+	₹55.72	₹1,671.60
100+	₹47.06	₹4,706.00
500+	₹43.16	₹21,580.00
1,000+	₹40.76	₹40,760.00

Quantity (min 1)

1 × ₹78.93

₹78.93

excl. GST

₹93.14 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

MIC5205-3.0YM5-TR

₹78.93 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 5uA
Output Configuration: Positive
Output Current: 150mA
Operating Voltage: 16V
Features: Enable control;Noise bypass terminal;Reverse polarity voltage protection;Over Current Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.043 g

Overview

The MIC5205 is an efficient linear voltage regulator with ultra low-noise output, very low dropout voltage (typically 17mV at light loads and 165mV at 150mA), and very low ground current (600μA at 100mA output). The MIC5205 offers better than 1% initial accuracy. Designed especially for hand-held, battery-powered devices, the MIC5205 includes a CMOS or TTL compatible enable/shutdown control input. When shut down, power consumption drops nearly to zero. Regulator ground current increases only slightly in dropout, further prolonging battery life. Key MIC5205 features include a reference bypass pin to improve its already excellent low-noise performance, reversed-battery protection, current limiting, and overtemperature shutdown. The MIC5205 is available in fixed and adjustable output voltage versions in a small SOT-23-5 package.

Applications

Cellular telephones
Laptop, notebook, and palmtop computers
Battery-powered equipment
PCMCIA VCC and VPP regulation/switching
Consumer/personal electronics
SMPS post-regulator/dc-to-dc modules
High-efficiency linear power supplies

Key features

Ultra-low-noise output
High output voltage accuracy
Guaranteed 150mA output
Low quiescent current
Low dropout voltage
Extremely tight load and line regulation
Very low temperature coefficient
Current and thermal limiting
Reverse-battery protection
“Zero” off-mode current
Logic-controlled electronic enable

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
LP2985IM5X-3.0#C18212644TECH PUBLIC · SOT-23-5	TECH PUBLIC	SOT-23-5	1,345	₹22.53 · 1,345 in stock	View
LW6530A23E#C51953185Lewa Micro · SOT-23-5L	Lewa Micro	SOT-23-5L	2,920	₹8.51 · 2,920 in stock	View
SPX3819M5-L-3-0#C23380894TECH PUBLIC · SOT-23-5	TECH PUBLIC	SOT-23-5	2,155	₹18.87 · 2,155 in stock	View
NCP716BSN300T1G#C463158onsemi · TSOP-5	onsemi	TSOP-5	30	₹292.45 · 30 in stock	View
TPS70930DBVR-TP#C50314383TECH PUBLIC · SOT-23-5	TECH PUBLIC	SOT-23-5	2,935	₹16.43 · 2,935 in stock	View
