onsemiDatasheet (PDF)

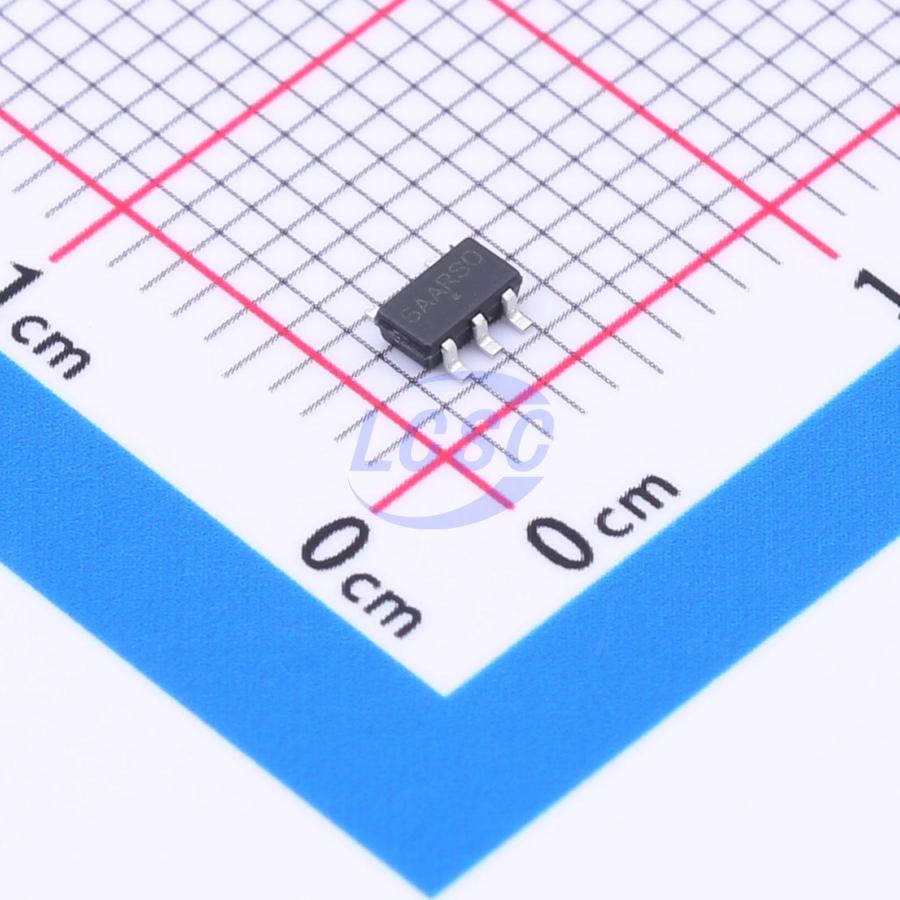

NCP716BSN300T1G
3V Positive Fixed TSOP-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TSOP-5ROHS3 CompliantActive
Wide Input Voltage Low Dropout, Ultra-Low Ilq Regulator
- Manufacturer
- onsemi
- Manufacturer part #
- NCP716BSN300T1G
- Store part #
- C463158
- Package / case
- TSOP-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C463158
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹292.45 | ₹292.45 |
| 10+ | ₹249.41 | ₹2,494.10 |
| 30+ | ₹222.57 | ₹6,677.10 |
| 100+ | ₹194.90 | ₹19,490.00 |
| 500+ | ₹182.60 | ₹91,300.00 |
| 1,000+ | ₹177.07 | ₹1,77,070.00 |
1 × ₹292.45
₹292.45
excl. GST
₹345.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP716BSN300T1G
₹292.45 for 1 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 4.7uA
- Output Configuration
- Positive
- Operating Voltage
- 24V
- Output Current
- 150mA
- Features
- Thermal shutdown;Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.27 g
Overview
The NCP716B is 150 mA LDO Linear Voltage Regulator. It is a very stable and accurate device with ultra−low ground current consumption (4.7 μA over the full output load range) and a wide input voltage range (up to 24 V). The regulator incorporates several protection features such as Thermal Shutdown and Current Limiting.
Applications
- Portable Equipment
- Communication Systems
- Industrial Measurement Systems
- Home Automation Devices
Key features
- Operating Input Voltage Range: 2.5 V to 24 V
- Fixed Voltage Options Available: 3.0 V, 3.3 V and 5.0 V
- Ultra Low Quiescent Current: Max. 4.7 μA over Temperature
- ±2% Accuracy over Full Temperature Range
- Noise: 115 μVRMS from 200 Hz to 100 kHz
- Thermal Shutdown and Current Limit Protection
- Available in TSOP−5 Package
- This is a Pb−Free Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCP718ASN300T1G#C892789onsemi · TSOT-23-5 | onsemi | TSOT-23-5 | 39 | ₹52.15 · 39 in stock | View |
 | NCP718BSN300T1G#C892794onsemi · TSOT-23-5 | onsemi | TSOT-23-5 | 197 | ₹113.83 · 197 in stock | View |
 | TLV70430DBVR#C133625TI · SOT-23-5 | TI | SOT-23-5 | 241 | ₹89.28 · 241 in stock | View |
 | TLV70130DBVR#C2870570TI · SOT-23-5 | TI | SOT-23-5 | 9 | ₹206.27 · 9 in stock | View |
 | PJ72AL30SE-A#C41367951PJSEMI · SOT-23-5 | PJSEMI | SOT-23-5 | 500 | ₹10.60 · 500 in stock | View |
