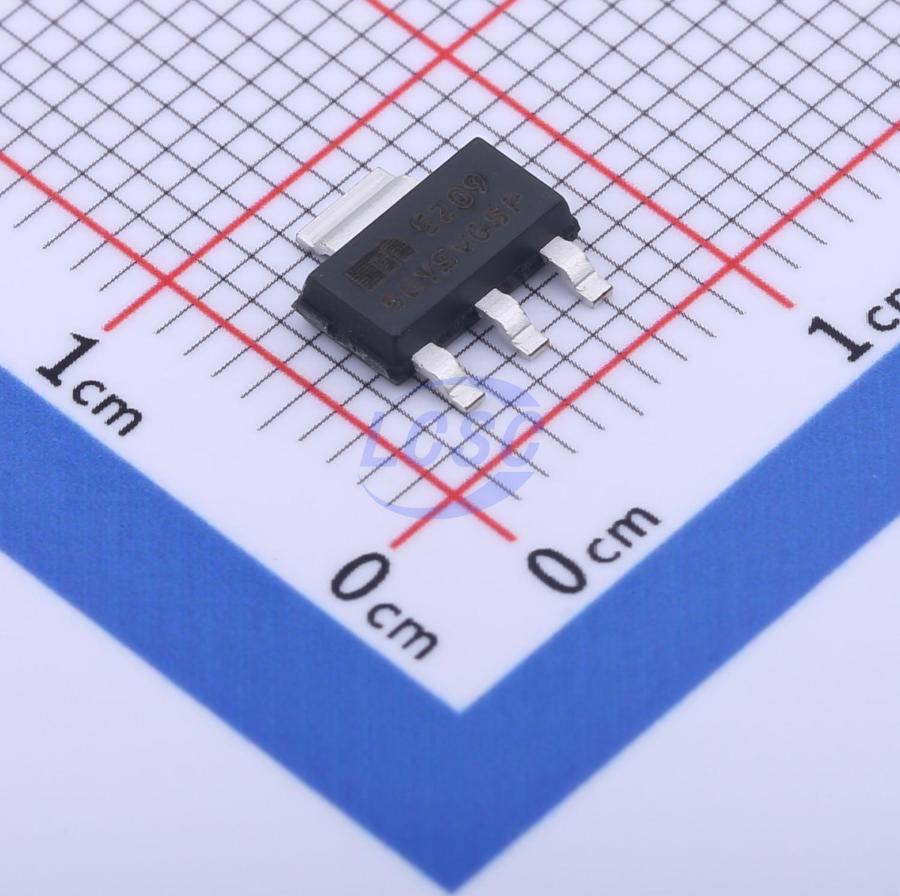

MIC5209-5.0YS

The MIC5209 is an efficient linear voltage regulator with very low dropout voltage, typically 10 mV at light loads and less than 500 mV at full load, with better than 1% output voltage accuracy. Designed especially for hand-held, battery-powered devices, the MIC5209 features low ground current to help prolong battery life. An enable/shutdown pin on the SOIC-8 and DDPAK versions can further improve battery life with near-zero shutdown current. Key features include reversed-battery protection, current limiting, overtemperature shutdown, ultra-low-noise capability (SOIC-8 and DDPAK versions), and is available in thermally efficient packaging. The MIC5209 is available in adjustable or fixed output voltages.

Applications

• Pentium II Slot 1 and Slot 2 Support Circuits
• Laptop, Notebook, and Palmtop Computers
• Cellular Telephones
• Consumer and Personal Electronics
• SMPS Post-Regulator and DC/DC Modules
• High-Efficiency Linear Power Supplies

Key features

• Output Voltage Range: 1.8V – 15V
• Meets Intel Slot 1 and Slot 2 Requirements
• Guaranteed 500 mA Output Over the Full Operating Temperature Range
• Low 500 mV Maximum Dropout Voltage at Full Load
• Extremely Tight Load and Line Regulation
• Thermally Efficient Surface-Mount Package
• Low Temperature Coefficient
• Current and Thermal Limiting
• Reversed-Battery Protection
• No-Load Stability
• 1% Output Accuracy
• Ultra-Low-Noise Capability in SOIC-8 and DDPAK
• Ultra-Small 3 mm×3 mm DFN Package
