HXY MOSFETDatasheet (PDF)

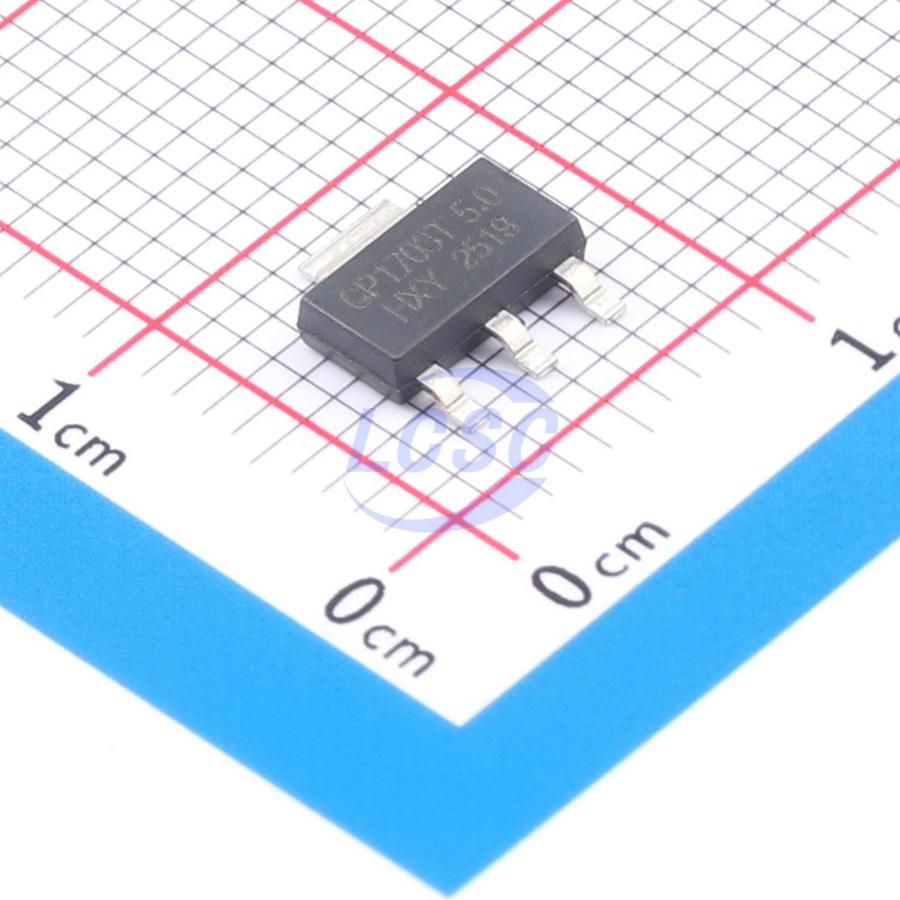

MCP1703T-5002E/DB-HXY
Linear Voltage Regulator IC Fixed 800mA SOT-223
SOT-223ROHS CompliantActive
1A BiCMOS LDO
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- MCP1703T-5002E/DB-HXY
- Store part #
- C49006631
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
123 in stock
#C49006631
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹96.49 | ₹96.49 |
| 10+ | ₹77.58 | ₹775.80 |
| 30+ | ₹68.24 | ₹2,047.20 |
| 100+ | ₹58.90 | ₹5,890.00 |
| 500+ | ₹53.46 | ₹26,730.00 |
| 1,000+ | ₹50.42 | ₹50,420.00 |
1 × ₹96.49
₹96.49
excl. GST
₹113.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
MCP1703T-5002E/DB-HXY
₹96.49 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 90uA
- Output Configuration
- Positive
- Operating Voltage
- 16V
- Output Current
- 800mA
- Output Type
- Fixed
- Features
- Over Current Protection;Thermal shutdown;Short Circuit Protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.15 g
Overview
The MCP1703T-xx02E/DB series linear regulators utilize a unique BiCMOS process, featuring low quiescent current (90μA), low dropout voltage, and high output voltage accuracy. The space-efficient SOT-223 package is suited for portable applications. Output voltage is factory-preset and laser-trimmed to ±1.5% accuracy, with options ranging from 1.8V to 5.0V. The device incorporates thermal shutdown and current foldback protection to prevent damage under the most severe operating conditions. The MCP1703T-xx02E/DB remains stable with output capacitance of 10μF or greater.
Applications
- Battery-powered devices
- Personal communication devices
- Home appliances/electronics
- PC peripherals, hard disk drives
Key features
- Ultra-low dropout voltage: less than 800mV at 0.8A output
- Low quiescent current: 90μA typical
- High output voltage accuracy: ±1.5%
- Guaranteed 0.8A output current (SOT223 package, input-to-output differential less than 1700mV)
- Up to 0.3A output current in SOT223 package for 12V to +5V regulation
- Compact package: SOT-223
- Factory-preset output voltage
- Short-circuit current foldback
- Low temperature coefficient
