HXY MOSFETDatasheet (PDF)

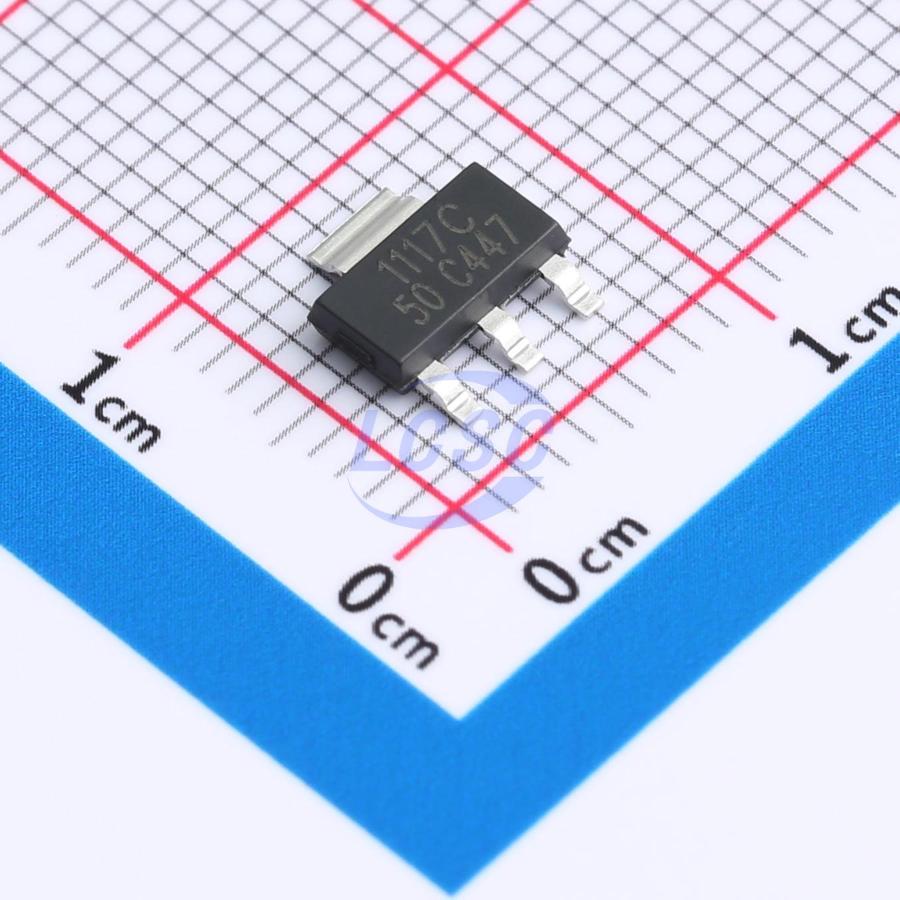

LD1117S50TR-HXY
Linear Voltage Regulator IC Fixed 1 Output 800mA SOT-223
SOT-223RoHSActive
800mA Bipolar Linear Regulator
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- LD1117S50TR-HXY
- Store part #
- C42432298
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C42432298
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.82 | ₹54.10 |
| 50+ | ₹8.60 | ₹430.00 |
| 150+ | ₹7.49 | ₹1,123.50 |
| 500+ | ₹6.65 | ₹3,325.00 |
| 2,500+ | ₹5.98 | ₹14,950.00 |
| 5,000+ | ₹5.65 | ₹28,250.00 |
5 × ₹10.82
₹54.10
excl. GST
₹63.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LD1117S50TR-HXY
₹54.10 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+85℃
- Supply Current (Iq)
- 2mA
- Output Configuration
- Positive
- Output Current
- 800mA
- Operating Voltage
- 12V
- Features
- Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.142 g
Overview
The LD1117S is a series of low dropout voltage regulators with a dropout voltage of 1.3V at 800mA load current. Compared to competitors' 5mA, the LD1117S features an ultra-low quiescent current of only 2mA. In addition to fixed versions (output voltages of 1.2V, 1.8V, 2.5V, 2.85V, 3.3V, and 5V), the LD1117S also offers an adjustable version that provides output voltages from 1.25V to 12V using only two external resistors. The LD1117S incorporates a thermal shutdown function to ensure stability of the die and power supply system. It uses trimming technology to guarantee output voltage accuracy within 2%. Other output voltage accuracy options, such as 1%, are available upon request. The LD1117S is offered in an SOT-223 power package.
Applications
- Computer motherboard power management
- Graphics cards
- LCD monitors and LCD TVs
- DVD decoder boards
- ADSL modems
- Switching power supply post-regulators
Key features
- Maximum output current: 1A
- Operating input voltage range: 15V max
- Line regulation: 0.03%/V (typ.)
- Standby current: 2mA (typ.)
- Load regulation: 0.2%/A (typ.)
- Ambient temperature: -20°C ~ 85°C
