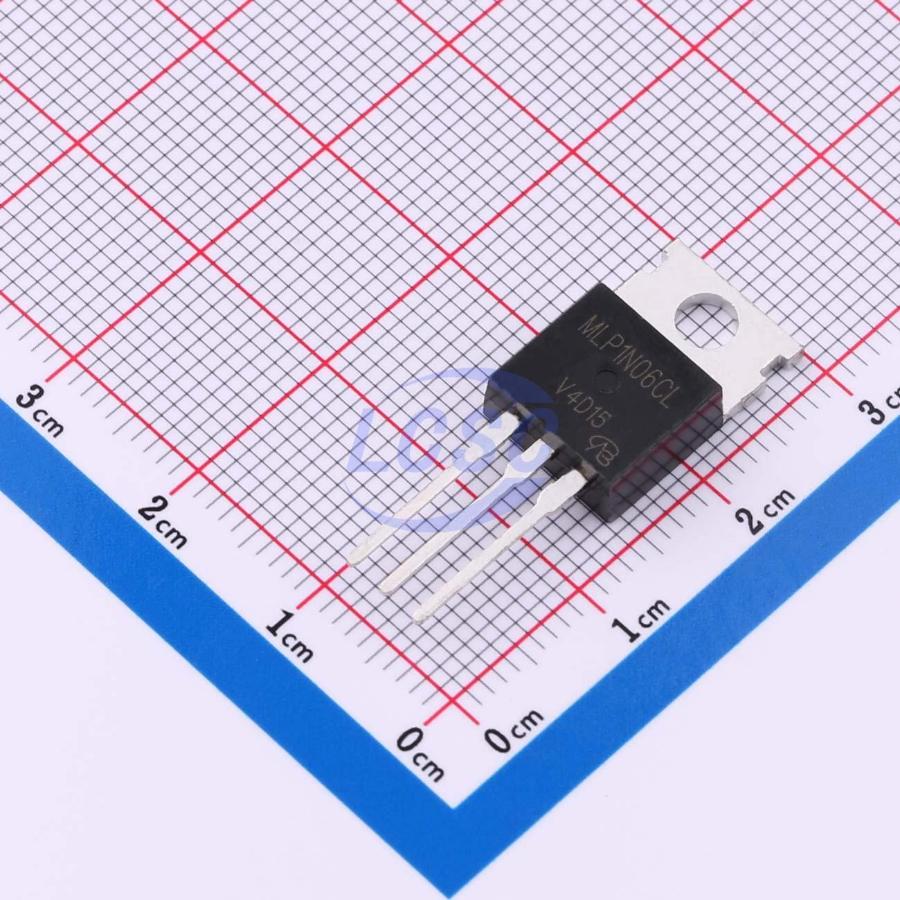

MLP1N06CL-VB
N-Channel 650V 2A 45W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 650V 2A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- MLP1N06CL-VB
- Store part #
- C22389102
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C22389102
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹70.16 | ₹70.16 |
| 10+ | ₹55.04 | ₹550.40 |
| 50+ | ₹48.53 | ₹2,426.50 |
| 100+ | ₹40.55 | ₹4,055.00 |
| 500+ | ₹36.98 | ₹18,490.00 |
| 1,000+ | ₹34.87 | ₹34,870.00 |
1 × ₹70.16
₹70.16
excl. GST
₹82.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
MLP1N06CL-VB
₹70.16 for 1 + GST
Specifications
- Drain to Source Voltage
- 650V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 2A
- Output Capacitance(Coss)
- 45pF
- Ciss-Input Capacitance
- 417pF
- Pd - Power Dissipation
- 45W
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 4Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 11nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.76 g
Overview
Applications
- Load switch for portable applications
Key features
- Low Gate Charge Qg Results in Simple Drive Requirement
- Improved Gate, Avalanche and Dynamic dV/dt Ruggedness
- Fully Characterized Capacitance and Avalanche Voltage and Current
- Compliant to RoHS directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | JCS2N60C-O-C-N-B-VB#C20417670VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹73.74 · 20 in stock | View |
 | 1N65L-TA3-T-VB#C20755634VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹72.90 · 10 in stock | View |
 | SPP02N60C3-VB#C20755691VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 47 | ₹66.68 · 47 in stock | View |
 | 2N65-VB TO220#C22389382VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹70.16 · 10 in stock | View |
 | TSM2N60CZ C0-VB#C22389516VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹70.16 · 10 in stock | View |
