onsemiDatasheet (PDF)

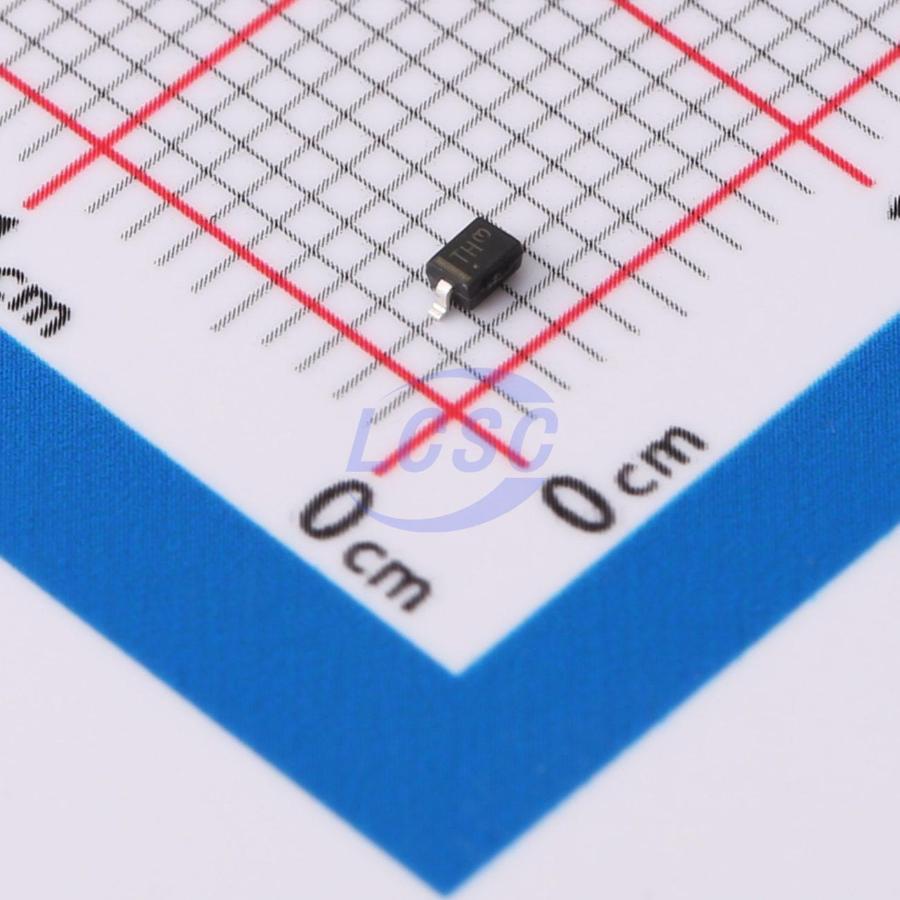

MM3Z8V2ST3G
Zener Diode 8.19V 300mW Surface Mount SOD-323
SOD-323ROHS3 CompliantActive
DIODE ZENER 8.19V 300mW SOD-323
- Manufacturer
- onsemi
- Manufacturer part #
- MM3Z8V2ST3G
- Store part #
- C896762
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
300 in stock
#C896762
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.29 | ₹105.80 |
| 200+ | ₹4.17 | ₹834.00 |
| 600+ | ₹3.55 | ₹2,130.00 |
| 2,000+ | ₹3.18 | ₹6,360.00 |
| 10,000+ | ₹2.86 | ₹28,600.00 |
| 20,000+ | ₹2.67 | ₹53,400.00 |
20 × ₹5.29
₹105.80
excl. GST
₹124.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
MM3Z8V2ST3G
₹105.80 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 700nA@5V
- Impedance(Zzt)
- 15Ω
- Zener Voltage(Range)
- 8.02V~8.36V
- Zener Voltage(Nom)
- 8.19V
- Impedance(Zzk)
- 160Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.038 g
Overview
This series of Zener diodes is packaged in a SOD - 323 surface mount package that has a power dissipation of 300 mW. They are designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium. They are well suited for applications such as cellular phones, hand - held portables, and high density PC boards.
Applications
- cellular phones
- hand - held portables
- high density PC boards
Key features
- Standard Zener Breakdown Voltage Range - 3.3 V to 36 V
- Steady State Power Rating of 300 mW
- Small Body Outline Dimensions: - 0.067"×0.049" (1.7mm×1.25mm)
- Low Body Height: 0.035" (0.9mm)
- Package Weight: 4.507 mg / unit
- ESD Rating of Class 3 (>16kV) per Human Body Model
- Tight Tolerance VZ
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC - Q101 Qualified and PPAP Capable
- These Devices are Pb - Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MM3Z8V2ST1G#C462857onsemi · SOD-323 | onsemi | SOD-323 | On request | ₹9.29 · 0 in stock | View |
 | BZX384-B8V2,115#C295459Nexperia · SOD-323 | Nexperia | SOD-323 | 220 | ₹5.27 · 220 in stock | View |
 | MM3Z8V2T1G#C130143onsemi · SOD-323 | onsemi | SOD-323 | 11,870 | ₹6.42 · 11,870 in stock | View |
 | SZMM3Z8V2T1G#C463899onsemi · SOD-323 | onsemi | SOD-323 | 1,660 | ₹15.04 · 1,660 in stock | View |
 | BZX384-B8V2-QX#C7508108Nexperia · SOD-323 | Nexperia | SOD-323 | 2,670 | ₹6.39 · 2,670 in stock | View |
