SZMM3Z8V2T1G

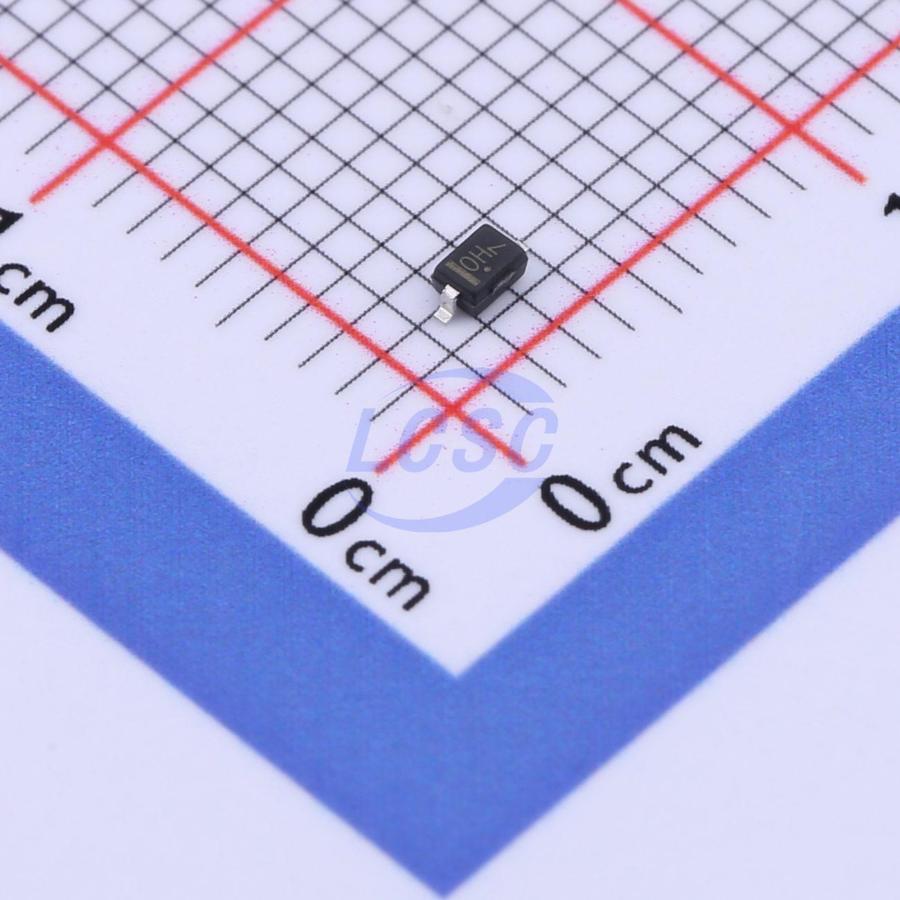

Zener Diode Independent 8.2V 300mW Surface Mount SOD-323
SOD-323ROHS3 CompliantActive
DIODE ZENER 8.2V 300mW SOD-323
- Manufacturer
- onsemi
- Manufacturer part #
- SZMM3Z8V2T1G
- Store part #
- C463899
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
