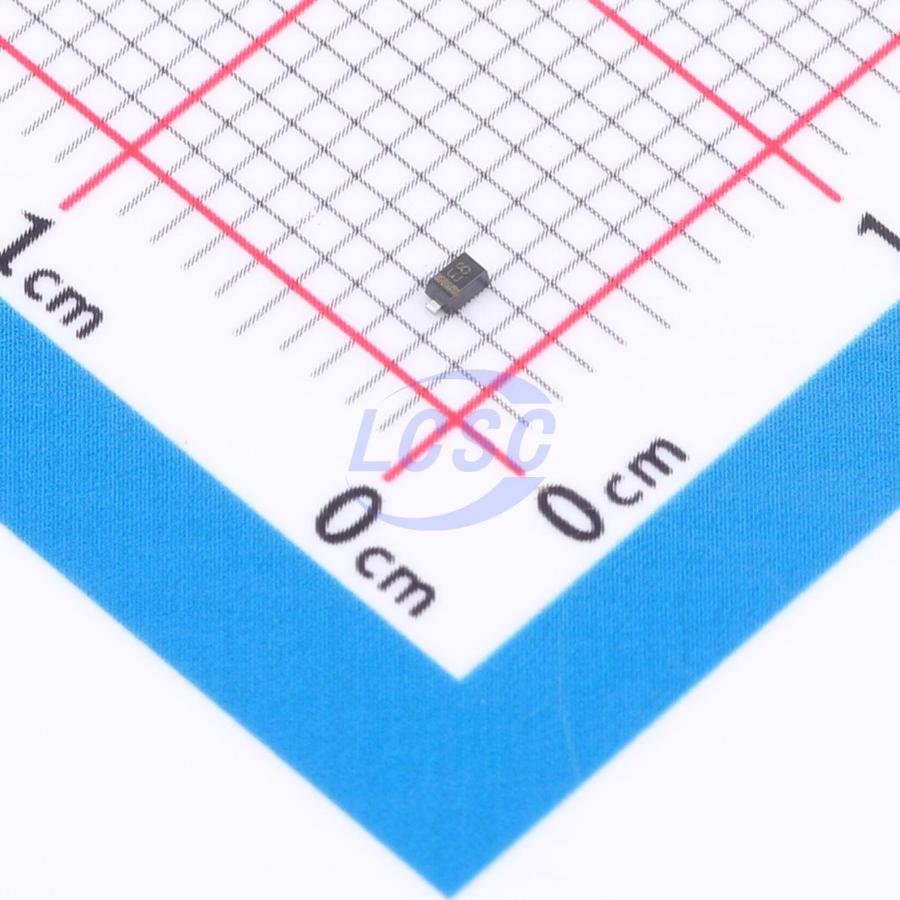

MM5Z12VT5GF
Zener Diode 1 Independent 12V 300mW Surface Mount SOD-523
SOD-523ROHS3 CompliantActive
DIODE ZENER 12V 300mW SOD-523
- Manufacturer
- Nexperia
- Manufacturer part #
- MM5Z12VT5GF
- Store part #
- C3733255
- Package / case
- SOD-523
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
190 in stock
#C3733255
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.11 | ₹85.55 |
| 50+ | ₹13.68 | ₹684.00 |
| 150+ | ₹11.97 | ₹1,795.50 |
| 500+ | ₹10.69 | ₹5,345.00 |
| 3,000+ | ₹9.67 | ₹29,010.00 |
| 6,000+ | ₹9.16 | ₹54,960.00 |
5 × ₹17.11
₹85.55
excl. GST
₹100.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MM5Z12VT5GF
₹85.55 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 100nA@8V
- Impedance(Zzt)
- 10Ω
- Zener Voltage(Range)
- 11.76V~12.24V
- Zener Voltage(Nom)
- 12V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.022 g
Overview
General- purpose Zener diodes in an SOD523 (SC- 79) ultra small flat lead Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 300mW
- Tolerance series: ± 2%
- Wide working voltage range: nominal 2.4V to 36V
- Low differential resistance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SZMM5Z12VT5GF#C3728746Nexperia · SOD-523 | Nexperia | SOD-523 | 99 | ₹36.92 · 99 in stock | View |
 | BZT585B12T-7#C5336797DIODES · SOD-523 | DIODES | SOD-523 | 800 | ₹10.99 · 800 in stock | View |
 | BZX585-B12,115#C503447Nexperia · SOD-523(SC-79) | Nexperia | SOD-523(SC-79) | 2,680 | ₹6.05 · 2,680 in stock | View |
 | BZX584B12VQ#C20167645YANGJIE · SOD-523(SC-79) | YANGJIE | SOD-523(SC-79) | 740 | ₹4.80 · 740 in stock | View |
 | BZX584B12-TP#C914305MCC · SOD-523 | MCC | SOD-523 | 8 | ₹68.78 · 8 in stock | View |
