NexperiaDatasheet (PDF)

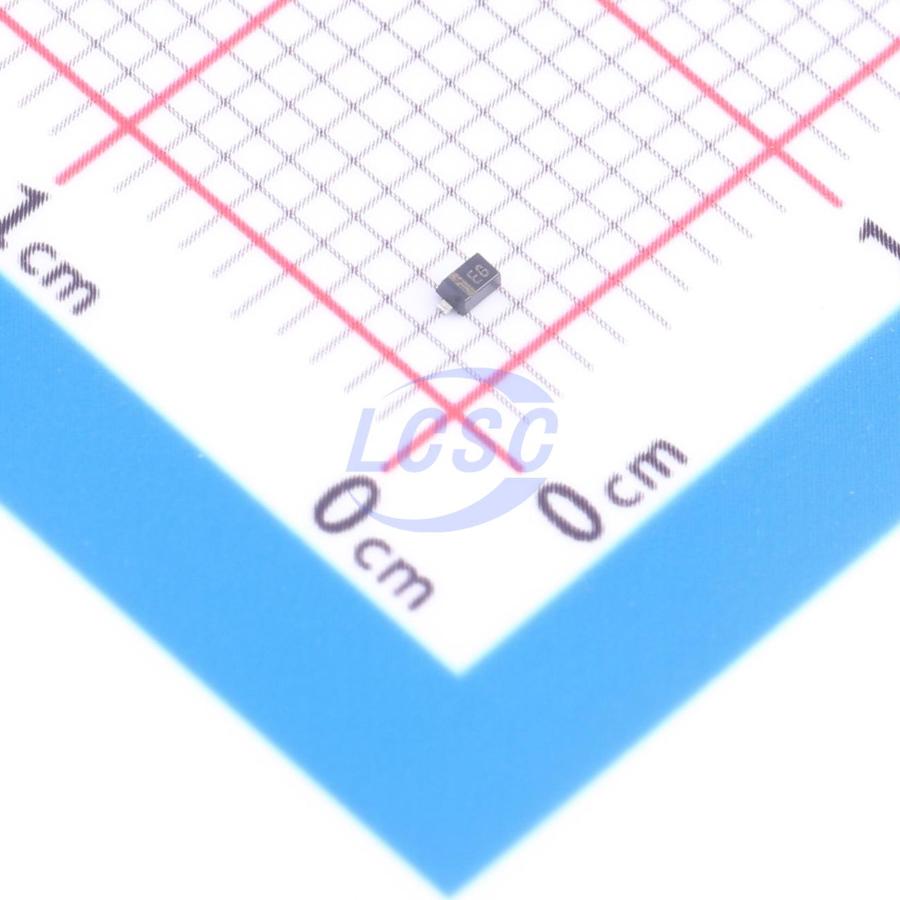

SZMM5Z12VT5GF
1 Independent 11.76V~12.24V 12V SOD-523 Single Zener Diodes RoHS
SOD-523ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- SZMM5Z12VT5GF
- Store part #
- C3728746
- Package / case
- SOD-523
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
99 in stock
#C3728746
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹36.92 | ₹36.92 |
| 10+ | ₹36.06 | ₹360.60 |
| 30+ | ₹35.40 | ₹1,062.00 |
| 100+ | ₹34.98 | ₹3,498.00 |
1 × ₹36.92
₹36.92
excl. GST
₹43.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
SZMM5Z12VT5GF
₹36.92 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 100nA@8V
- Zener Voltage(Range)
- 11.76V~12.24V
- Zener Voltage(Nom)
- 12V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.052 g
Overview
General- purpose Zener diodes in an SOD523 (SC- 79) ultra small flat lead Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 300mW
- Tolerance series: ± 2%
- Wide working voltage range: nominal 2.4V to 36V
- Low differential resistance
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MM5Z12VT5GF#C3733255Nexperia · SOD-523 | Nexperia | SOD-523 | 190 | ₹17.11 · 190 in stock | View |
 | BZX585-B12,115#C503447Nexperia · SOD-523(SC-79) | Nexperia | SOD-523(SC-79) | 2,680 | ₹6.05 · 2,680 in stock | View |
 | BZX584B12VQ#C20167645YANGJIE · SOD-523(SC-79) | YANGJIE | SOD-523(SC-79) | 740 | ₹4.80 · 740 in stock | View |
 | BZT585B12T-7#C5336797DIODES · SOD-523 | DIODES | SOD-523 | 800 | ₹10.99 · 800 in stock | View |
 | BZX584B12-TP#C914305MCC · SOD-523 | MCC | SOD-523 | 8 | ₹68.78 · 8 in stock | View |
