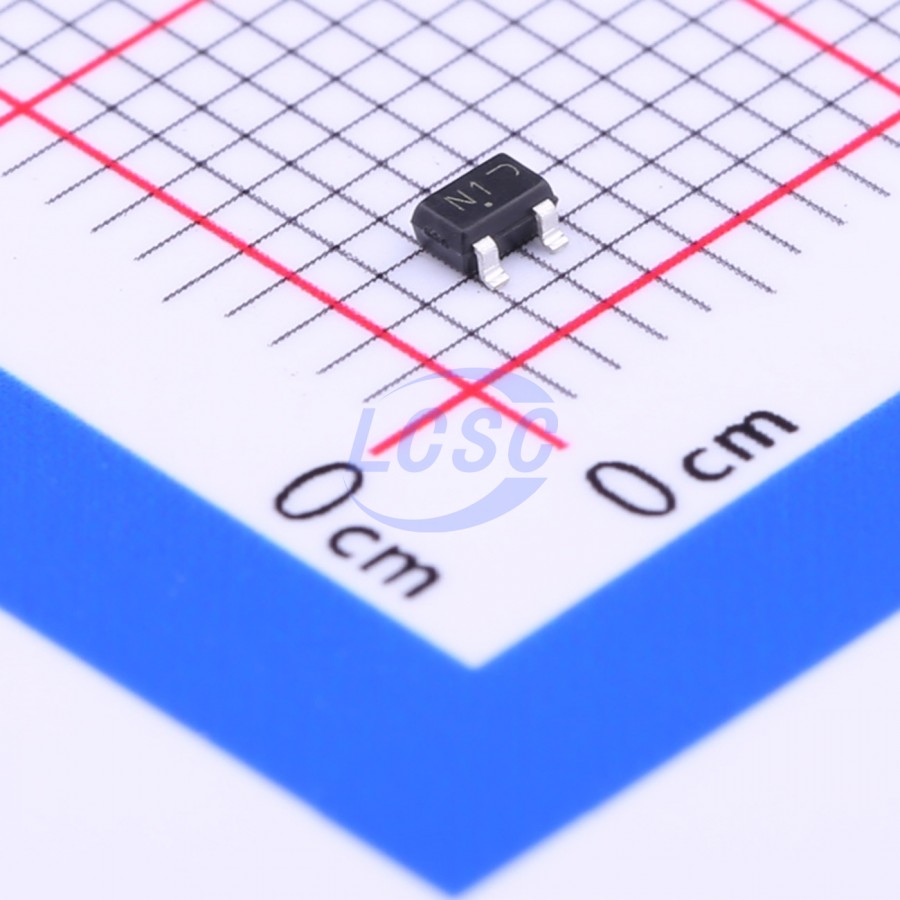

MMBF2201NT1G
N-Channel 20V 300mA 150mW Surface Mount SOT-323
SOT-323ROHS3 CompliantActive
MOSFET N-CH 20V 300mA SOT-323
- Manufacturer
- onsemi
- Manufacturer part #
- MMBF2201NT1G
- Store part #
- C232552
- Package / case
- SOT-323
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
87 in stock
#C232552
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹59.60 | ₹59.60 |
| 10+ | ₹47.52 | ₹475.20 |
| 30+ | ₹42.31 | ₹1,269.30 |
| 100+ | ₹35.85 | ₹3,585.00 |
| 500+ | ₹32.93 | ₹16,465.00 |
| 1,000+ | ₹31.05 | ₹31,050.00 |
1 × ₹59.60
₹59.60
excl. GST
₹70.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMBF2201NT1G
₹59.60 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 25pF
- Ciss-Input Capacitance
- 45pF
- Pd - Power Dissipation
- 150mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 300mA
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 1Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 1.4nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.028 g
Overview
These miniature SMT MOSFETs feature low on-resistance RDS(on) to ensure minimal power dissipation and energy savings, making them ideal for compact power management circuits.
Applications
- DC-DC converter
- Power management for portable and battery-powered products (e.g., computers, printers, PCMCIA cards, mobile phones, and cordless phones)
Key features
- Low on-resistance RDS(on) improves efficiency and extends battery life
- Miniature SC-70/SOT-323 SMT package saves board space
- NVF prefix for automotive and other applications requiring unique sourcing and change control; AEC-Q101 compliant with PPAP capability
- Lead-free, RoHS compliant
