TECH PUBLICDatasheet (PDF)

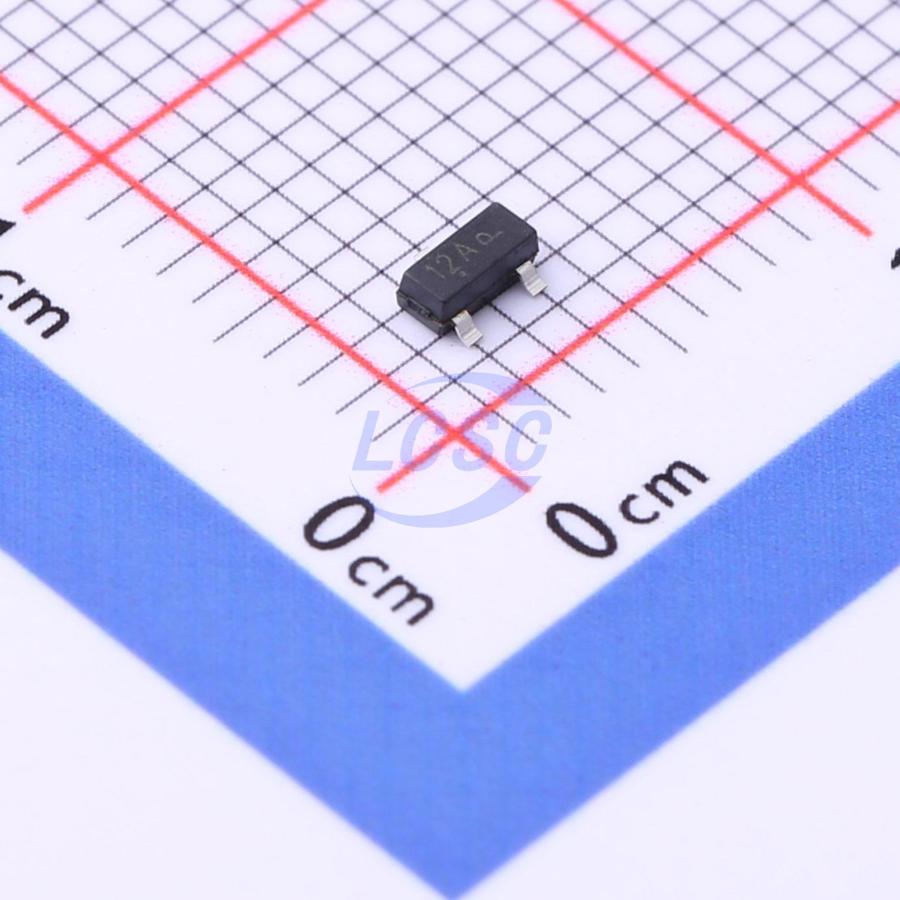

MMBZ12VALT1G
20VC Clamp 7A@8/20us Ipp SOT-23
SOT-23RoHSActive
12VWM 20VC SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- MMBZ12VALT1G
- Store part #
- C2936996
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,740 in stock
#C2936996
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.87 | ₹97.40 |
| 200+ | ₹3.86 | ₹772.00 |
| 600+ | ₹3.31 | ₹1,986.00 |
| 3,000+ | ₹2.74 | ₹8,220.00 |
| 9,000+ | ₹2.45 | ₹22,050.00 |
| 21,000+ | ₹2.29 | ₹48,090.00 |
20 × ₹4.87
₹97.40
excl. GST
₹114.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMBZ12VALT1G
₹97.40 for 20 + GST
Specifications
- Clamping Voltage
- 20V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 7A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 13.3V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 10nA
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.031 g
Overview
Applications
- USB Power & Data Line Protection
- Monitors and Flat Panel Displays
- I²C Bus Protection
- Portable Instrumentation
- Set Top Box
Key features
- 150 Watts peak pulse power (tp = 8/20μs)
- Transient protection for high speed data lines to IEC 61000-4-2 (ESD) ±30kV (air), ±30kV (contact) IEC61000-4-4 (EFT) 40A (5/50ns)
- Working voltages: 12V
- Protects one bidirectional line or two unidirectional lines
- Low operating and clamping voltages
- Solid-state silicon avalanche technology
