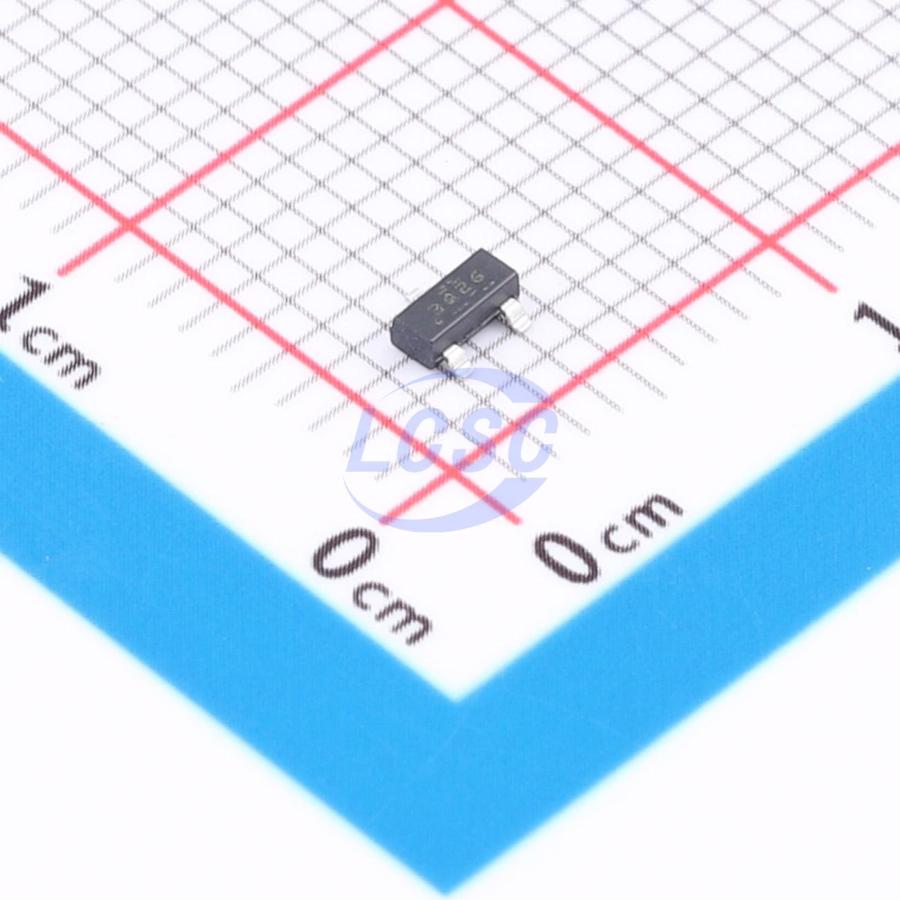

MMBZ15VALDBZRQ1
20V 1.7A@10/1000us 35W@10/1000us 15V Unidirectional 12V SOT-23-3 TVS Diodes
- Manufacturer
- TI
- Manufacturer part #
- MMBZ15VALDBZRQ1
- Store part #
- C49292357
- Package / case
- SOT-23-3
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
880 in stock
#C49292357
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.23 | ₹146.15 |
| 50+ | ₹24.69 | ₹1,234.50 |
| 150+ | ₹22.46 | ₹3,369.00 |
| 500+ | ₹20.49 | ₹10,245.00 |
| 3,000+ | ₹19.95 | ₹59,850.00 |
| 6,000+ | ₹19.62 | ₹1,17,720.00 |
5 × ₹29.23
₹146.15
excl. GST
₹172.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMBZ15VALDBZRQ1
₹146.15 for 5 + GST
Specifications
- Clamping Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 1.7A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 35W@10/1000us
- Voltage - Breakdown
- 15V
- Number of Channels
- 2
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 50nA
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.077 g
Overview
MMBZxxVAL-Q1 is a dual unidirectional or single bidirectional ESD device with common anode configuration. Its low capacitance and low leakage current characteristics make it suitable for higher-speed applications. The MMBZxxVAL-Q1 comes in a SOT-23 package, providing two channels of reliable transient protection in a space-saving form factor.
Applications
- Automotive and industrial overvoltage protection
- CAN/LIN transient suppression
Key features
- IEC 61000-4-2 ESD protection: contact discharge ±30kV, air gap discharge ±30kV
- IEC 61643-321 surge protection: withstands up to 1.7A (10/1000µs) surge
- Maximum leakage current: 50nA
- Operating temperature range: -55℃ to +150℃
- Leaded package compatible with AOI
- AEC-Q101 qualified
