MMBZ15VDL-7-F

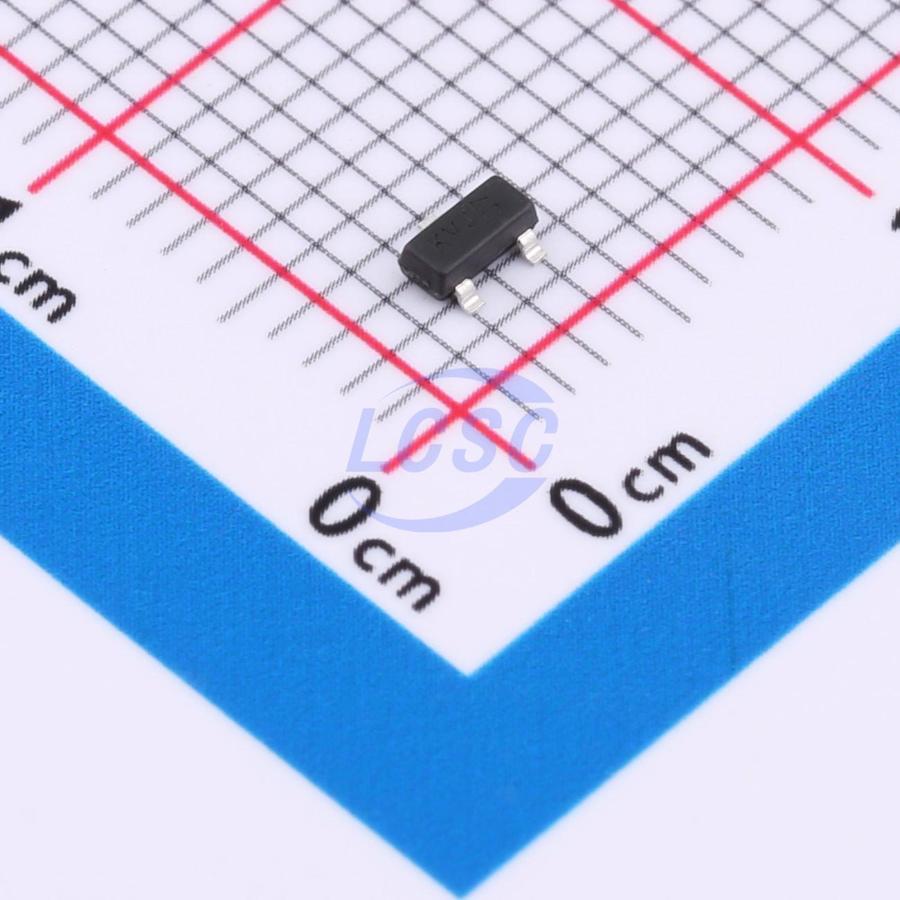

Zener Diode Array 1 Pair Common Cathode 15V 225mW Surface Mount SOT-23
SOT-23Discontinued
DIODE ARR ZENER 15V 225mW SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- MMBZ15VDL-7-F
- Store part #
- C780860
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C780860
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.30 | ₹61.50 |
| 50+ | ₹10.09 | ₹504.50 |
| 150+ | ₹9.00 | ₹1,350.00 |
| 500+ | ₹8.16 | ₹4,080.00 |
| 3,000+ | ₹7.50 | ₹22,500.00 |
| 6,000+ | ₹7.17 | ₹43,020.00 |
5 × ₹12.30
₹61.50
excl. GST
₹72.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMBZ15VDL-7-F
₹61.50 for 5 + GST
Specifications
- Pd - Power Dissipation
- 225mW
- Operating Junction Temperature Range
- -55℃~+150℃
- Diode Configuration
- 1 Pair Common Cathode
- Reverse Leakage Current (Ir)
- 100nA
- Zener Voltage(Range)
- 14.3V~15.8V
- Zener Voltage(Nom)
- 15V
Packaging & compliance
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
Key features
- Dual TVS in Common Cathode Configuration for ESD Protection
- 40 Watt Peak Power Dissipation @1.0ms (Unidirectional)
- 225mW Power Dissipation
- Ideally Suited for Automated Insertion
- Low Leakage
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
