NexperiaDatasheet (PDF)

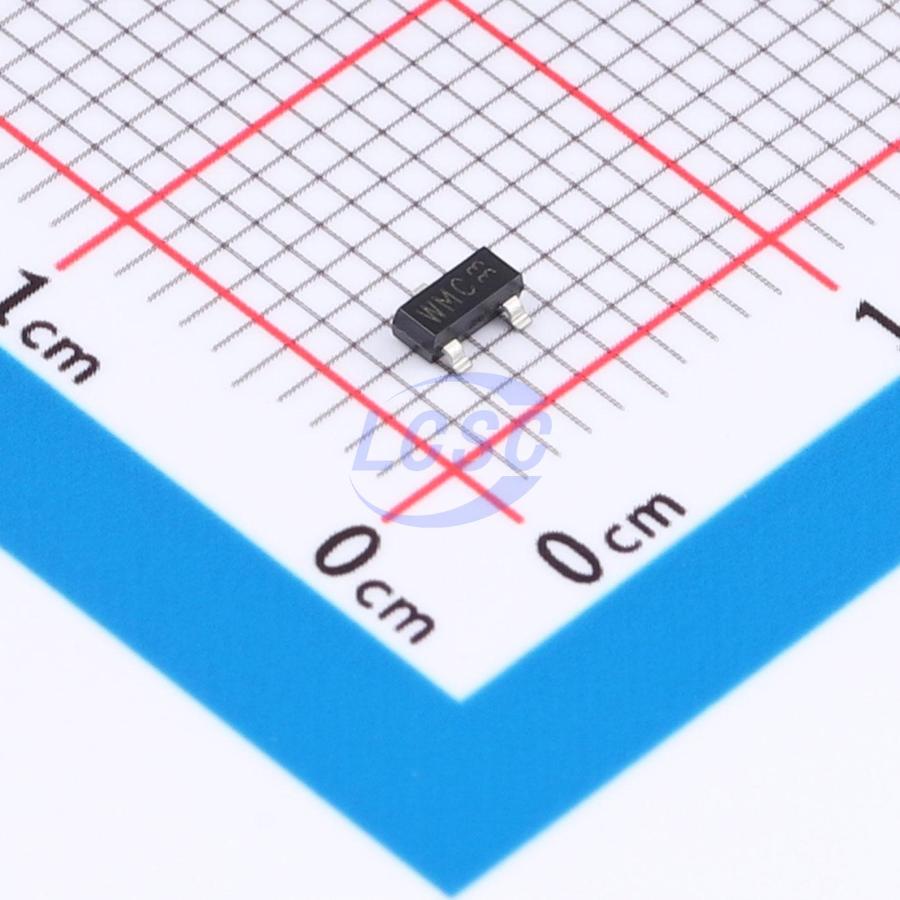

MMBZ18VCL,215
25VC Clamp ESD DIODE TO-236AB
TO-236ABROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- MMBZ18VCL,215
- Store part #
- C551539
- Package / case
- TO-236AB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
250 in stock
#C551539
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.45 | ₹122.25 |
| 50+ | ₹23.85 | ₹1,192.50 |
| 150+ | ₹23.47 | ₹3,520.50 |
| 500+ | ₹23.07 | ₹11,535.00 |
5 × ₹24.45
₹122.25
excl. GST
₹144.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMBZ18VCL,215
₹122.25 for 5 + GST
Specifications
- Clamping Voltage
- 25V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 1.6A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 40W
- Number of Channels
- 2
- Voltage - Breakdown
- 17.1V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100pA
- Reverse Stand-Off Voltage (Vrwm)
- 14.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
Unidirectional double ElectroStatic Discharge (ESD) protection diodes in a common cathode configuration, encapsulated in a SOT23 (TO-236AB) small Surface-Mounted Device (SMD) plastic package. The devices are designed for ESD and transient overvoltage protection of up to two signal lines.
Applications
- Computers and peripherals
- Audio and video equipment
- Cellular handsets and accessories
- Automotive electronic control units
- Portable electronics
Key features
- Unidirectional ESD protection of two lines
- Bidirectional ESD protection of one line
- Low diode capacitance: Cd ≤ 140 pF
- Rated peak pulse power: PP P M ≤ 40 W
- Ultra low leakage current: I R M ≤ 5 nA
- ESD protection up to 30 kV (contact discharge)
- IEC 61000-4-2; level 4 (ESD)
- IEC 61643-321
- AEC-Q101 qualified
