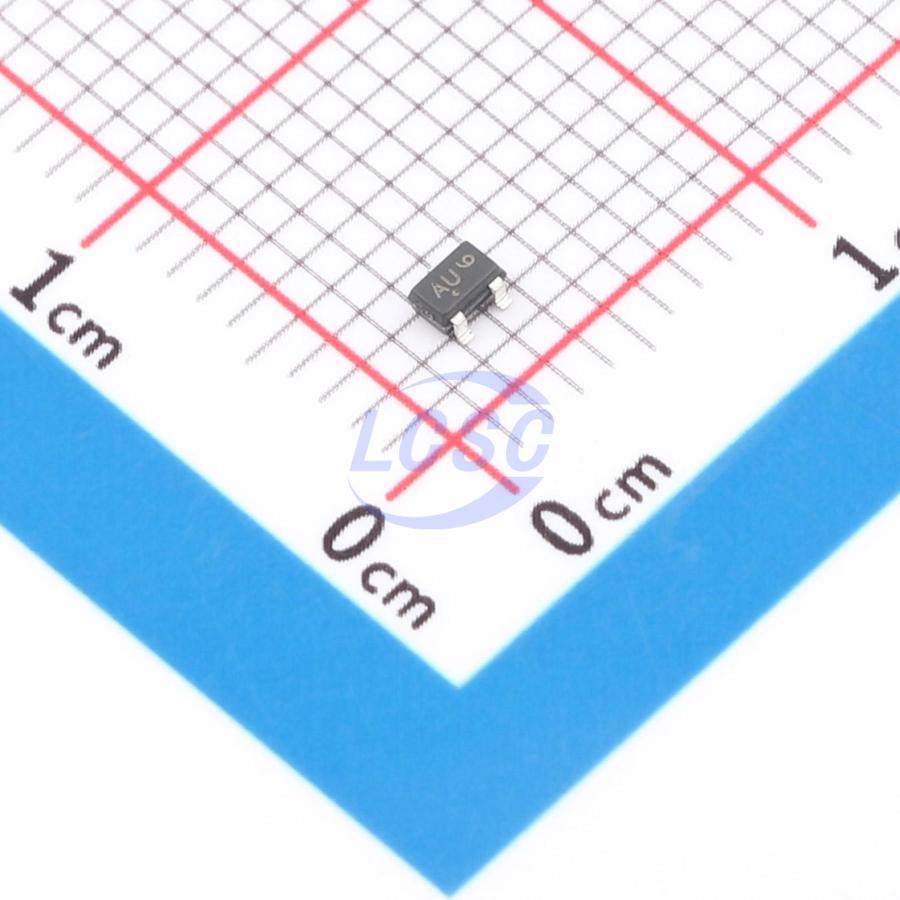

MMBZ20VAWT1G
28VC Clamp ESD DIODE SC-70
- Manufacturer
- onsemi
- Manufacturer part #
- MMBZ20VAWT1G
- Store part #
- C891698
- Package / case
- SC-70
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
970 in stock
#C891698
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.62 | ₹63.10 |
| 50+ | ₹12.34 | ₹617.00 |
| 150+ | ₹12.16 | ₹1,824.00 |
| 500+ | ₹11.97 | ₹5,985.00 |
5 × ₹12.62
₹63.10
excl. GST
₹74.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMBZ20VAWT1G
₹63.10 for 5 + GST
Specifications
- Clamping Voltage
- 28V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 1.4A
- Peak Pulse Power Dissipation (Ppp)
- 40W
- Voltage - Breakdown
- 19V
- Number of Channels
- 2
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 50nA
- Reverse Stand-Off Voltage (Vrwm)
- 17V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.062 g
Overview
These dual monolithic silicon Zener diodes are designed for applications requiring protection capability. They are intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment and other applications. Their dual junction common anode design protects two separate lines using only one package. These devices are ideal for situations where board space is at a premium.
Applications
- computers
- printers
- business machines
- communication systems
- medical equipment
Key features
- SC-70 Package Allows Either Two Separate Unidirectional Configurations or a Single Bidirectional Configuration
- Standard Zener Breakdown Voltage Range: 15 - 33V
- Peak Power - 40W @ 1.0ms (Unidirectional), per Figure 5 Waveform
- ESD Rating:
- Class 3B (>16kV) per the Human Body Model
- Class C (>400V) per the Machine Model
- Low Leakage < 5.0μA
- Flammability Rating UL 94 V-0
- AEC-Q101 Qualified and PPAP Capable
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
- These are Pb-Free Devices
